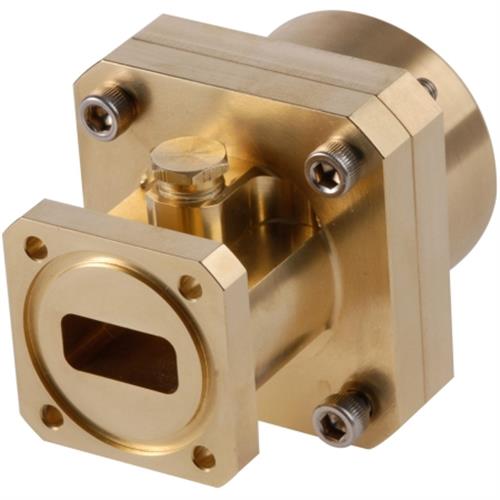

Commscope 128AE | Non-tunable CPR284G for elliptical waveguide 28
Regular price
$2,227.61
Unit price
Brand: CommScope
|
SKU:
464009
Regular price
$2,227.61
Unit price
Description
Description
Commscope 128AE | Non-tunable CPR284G for elliptical waveguide 28
Specifications
Specifications
Product Classification
| Product Type | Elliptical waveguide connector |
|---|
General Specifications
| Attachment Method | Tab-flare / Tool-flare |
|---|---|
| Body Style | Straight, non-tunable |
| Inner Contact Plating | Unplated |
| Interface | CPR284G |
| Outer Contact Plating | Bright nickel over electroless nickel |
| Pressurizable | Yes |
Dimensions
| Width | 127 mm / 5 in |
|---|---|
| Length | 322.326 mm / 12.69 in |
| Transition Length | 254 mm / 10 in |
| Waveguide Size | WR284 / WG10 / R32 |
Electrical Specifications
| Insertion Loss, typical | 0.01 dB |
|---|---|
| Operating Frequency Band | 2.9 – 3.4 GHz |
| Peak Power at Frequency, maximum | 446.00 kW @ 3.20 GHz |
Material Specifications
| Material Type | Brass |
|---|
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
Packaging and Weights
| Weight, net | 3.3 kg / 7.275 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
