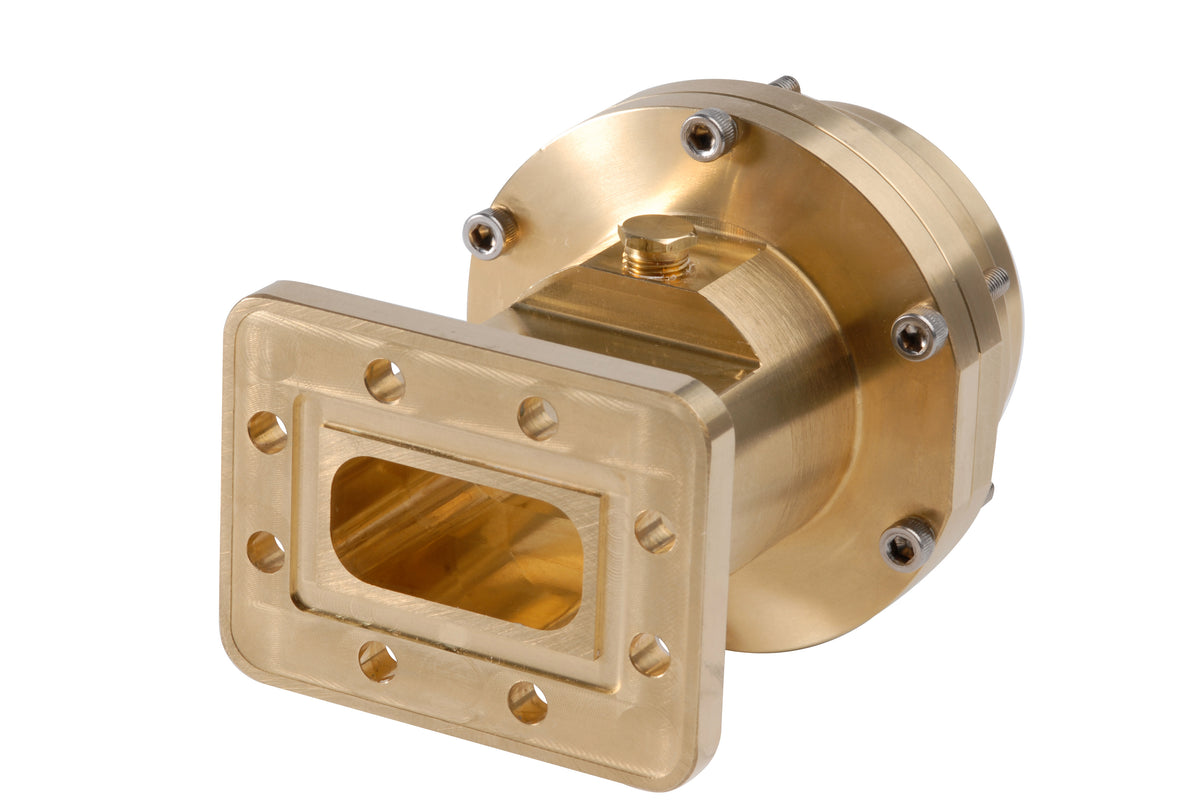

Commscope 152SE | Fixed-tuned CPR159G for elliptical waveguide 52
Regular price
$599.93
Unit price
Brand: CommScope
|
SKU:
518602
Regular price
$599.93
Unit price
Description
Description
Commscope 152SE | Fixed-tuned CPR159G for elliptical waveguide 52
Specifications
Specifications
Product Classification
| Product Type | Elliptical waveguide connector |
|---|
General Specifications
| Attachment Method | Tab-flare / Tool-flare |
|---|---|
| Body Style | Straight, fixed-tuned |
| Inner Contact Plating | Unplated |
| Interface | CPR159G |
| Outer Contact Plating | Unplated |
| Pressurizable | Yes |
Dimensions
| Width | 96.52 mm / 3.8 in |
|---|---|
| Length | 121.92 mm / 4.8 in |
| Transition Length | 82.804 mm / 3.26 in |
| Waveguide Size | WR159 / WG13 / R58 |
Electrical Specifications
| Insertion Loss, typical | 0.01 dB |
|---|---|
| Operating Frequency Band | 5.6 – 6.425 GHz |
| Peak Power at Frequency, maximum | 153.00 kW/6.00 GHz |
Material Specifications
| Material Type | Brass |
|---|
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
Packaging and Weights
| Weight, net | 2 kg / 4.409 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
