Brand: CommScope
|
SKU:
464024

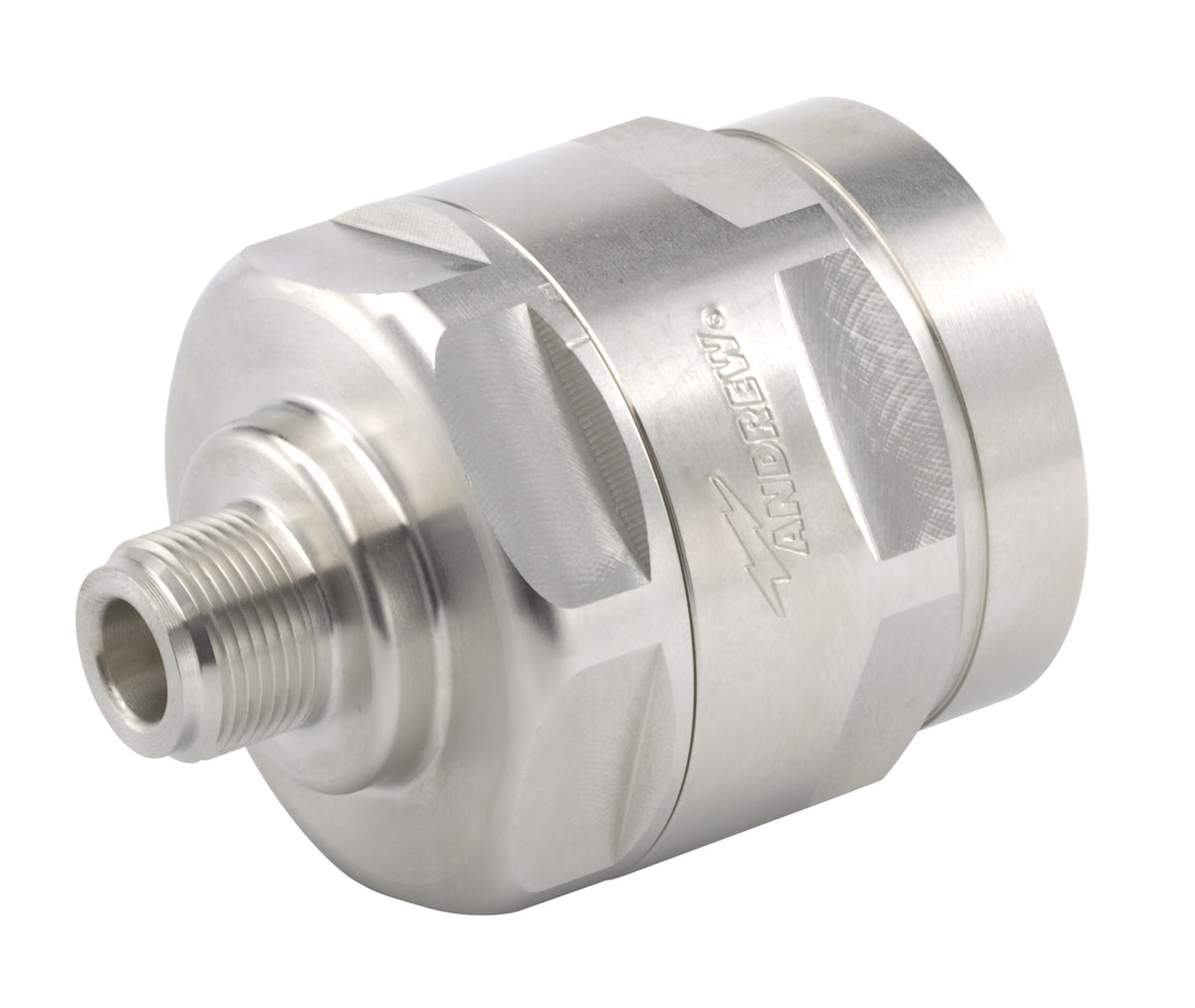

Commscope 158EZNF | Type N Female EZfit for 1-5/8 in FXL-1873 and AVA7-50 cable
Regular price
$76.77
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 158EZNF | Type N Female EZfit for 1-5/8 in FXL-1873 and A...
Regular price
$76.77
Unit price
Description
Description
Commscope 158EZNF | Type N Female EZfit for 1-5/8 in FXL-1873 and AVA7-50 cable
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Wireless and radiating connector |
|---|---|
| Product Brand | EZfit |
| Product Series | AVA7-50 / AVA7RK-50 |
| Ordering Note | CommScope non-standard product |
General Specifications
| Body Style | Straight |
|---|---|
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | N Female |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Length | 70.1 mm / 2.760 in |
|---|---|
| Diameter | 62.99 mm / 2.480 in |
| Nominal Size | 1-5/8 in |
Electrical Specifications
| 3rd Order IMD at Frequency | -116 dBm/1800 MHz |
|---|---|
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss, typical | 0.05 dB |
| Average Power at Frequency | 0.6 kW/900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2000 V |
| Inner Contact Resistance, maximum | 2 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 2700 MHz |
| Outer Contact Resistance, maximum | 0.3 mOhm |
| Peak Power, maximum | 10 kW |
| RF Operating Voltage, maximum (vrms) | 707 V |
| Shielding Effectiveness | -130 dB |
Mechanical Specifications
| Attachment Durability | 25 cycles |
|---|---|
| Connector Retention Tensile Force | 2224.11 N / 500.000 lbf |
| Connector Retention Torque | 13.56 N-m / 119.998 in lb |
| Insertion Force | 66.72 N / 15.000 lbf |
| Insertion Force Method | MIL-C-39012C-3.12, 4.6.9 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | MIL-STD-202F, Method 213B, Test Condition C |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
|---|---|
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Corrosion Test Method | MIL-STD-1344A, Method 1001.1, Test Condition A |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | MIL-STD-202F, Method 106F |
| Thermal Shock Test Method | MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C |
| Vibration Test Method | IEC 60068-2-6 |
| Water Jetting Test Mating | Mated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
Packaging and Weights
| Weight, net | 536.9 g / 1.184 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- Drill Tool for 540, 780, 1480 and 1873 EZfit Series Connectors for HELIAX SFX, FXL Cables
- Hand Tool for 540, 780, 1480 and 1873 EZfit Series Connectors for HELIAX SFX, FXL Cables
- Statement of Compliance RoHS/REACH
- 158EZNF Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- CommScope Limited Product Warranty
