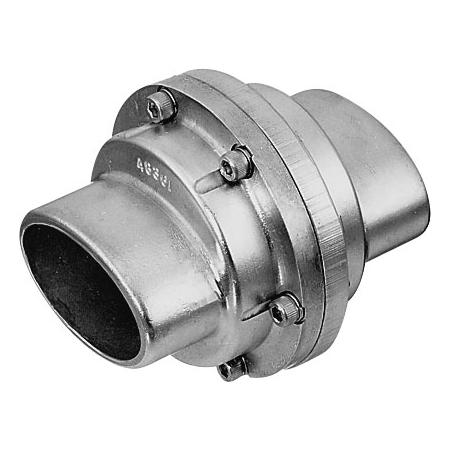

Commscope 163DZ | Splice for elliptical waveguide 63
Regular price
$416.93
Unit price
Brand: CommScope
|
SKU:
464027
Regular price
$416.93
Unit price
Description
Description
Commscope 163DZ | Splice for elliptical waveguide 63
Specifications
Specifications
Product Classification
| Product Type | Elliptical waveguide connector |
|---|
General Specifications
| Attachment Method | Tab-flare / Tool-flare |
|---|---|
| Body Style | Splice |
| Inner Contact Plating | Unplated |
| Interface | Splice |
| Outer Contact Plating | Unplated |
| Pressurizable | Yes |
Dimensions
| Width | 85.852 mm / 3.38 in |
|---|---|
| Length | 66.04 mm / 2.6 in |
Electrical Specifications
| Insertion Loss, typical | 0.01 dB |
|---|---|
| Operating Frequency Band | 5.850 – 7.125 GHz |
Material Specifications
| Material Type | Brass |
|---|
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
Packaging and Weights
| Weight, net | 1.5 kg / 3.307 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
