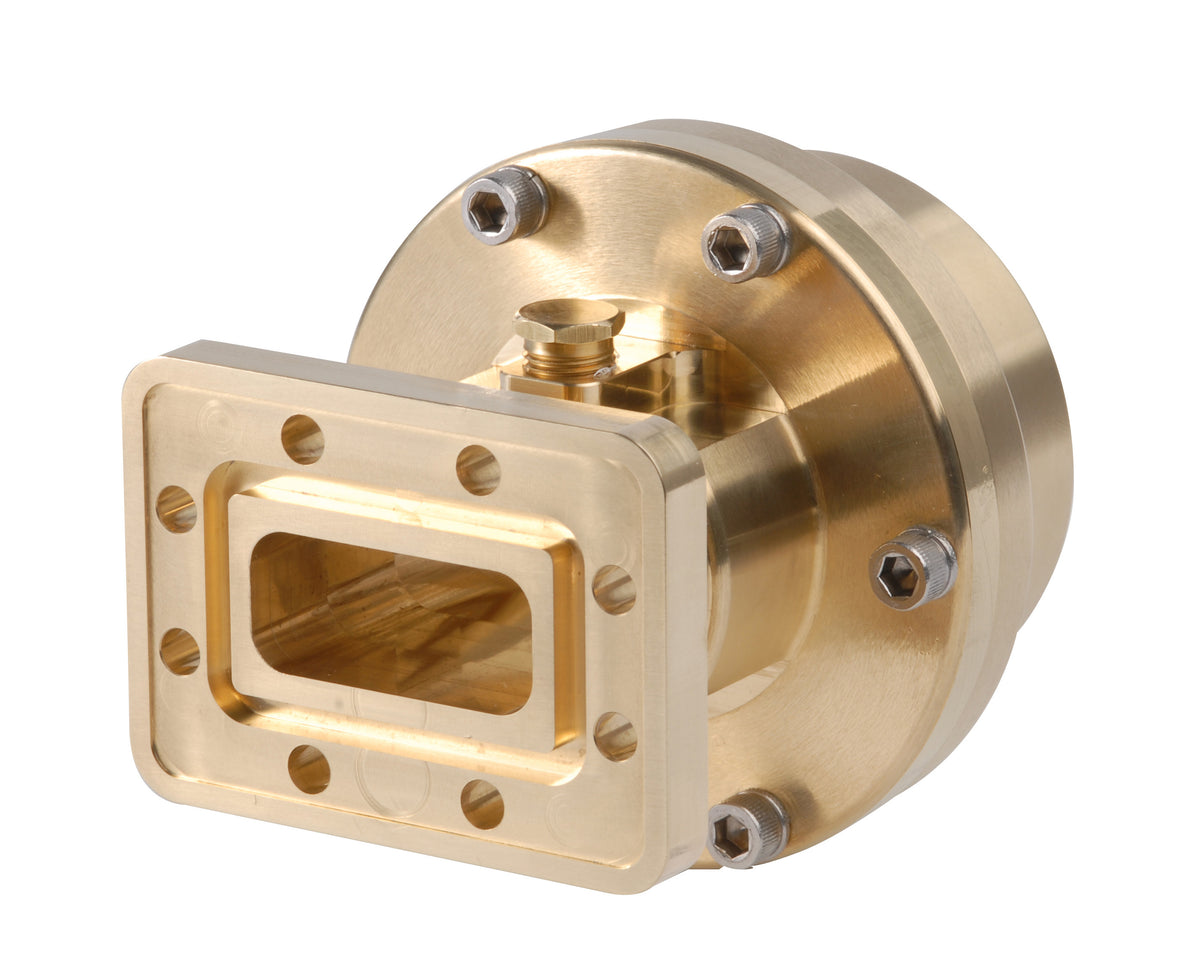

Commscope 164SEM | Fixed-tuned PDR70 for elliptical waveguide 64
Regular price
$437.54
Unit price
Brand: CommScope
|
SKU:
464033
Regular price
$437.54
Unit price
Description
Description
Commscope 164SEM | Fixed-tuned PDR70 for elliptical waveguide 64
Specifications
Specifications
Product Classification
| Product Type | Elliptical waveguide connector |
|---|
General Specifications
| Attachment Method | Tab-flare / Tool-flare |
|---|---|
| Body Style | Straight, fixed-tuned |
| Inner Contact Plating | Unplated |
| Interface | PDR70 |
| Outer Contact Plating | Unplated |
| Pressurizable | Yes |
Dimensions
| Width | 82.55 mm / 3.25 in |
|---|---|
| Length | 89.408 mm / 3.52 in |
| Transition Length | 56.388 mm / 2.22 in |
| Waveguide Size | WR137 / WG14 / R70 |
Electrical Specifications
| Insertion Loss, typical | 0.01 dB |
|---|---|
| Operating Frequency Band | 6.425 – 7.75 GHz |
| Peak Power at Frequency, maximum | 107.00 kW @ 7.40 GHz |
Material Specifications
| Material Type | Brass |
|---|
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
Packaging and Weights
| Weight, net | 1.7 kg / 3.748 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
