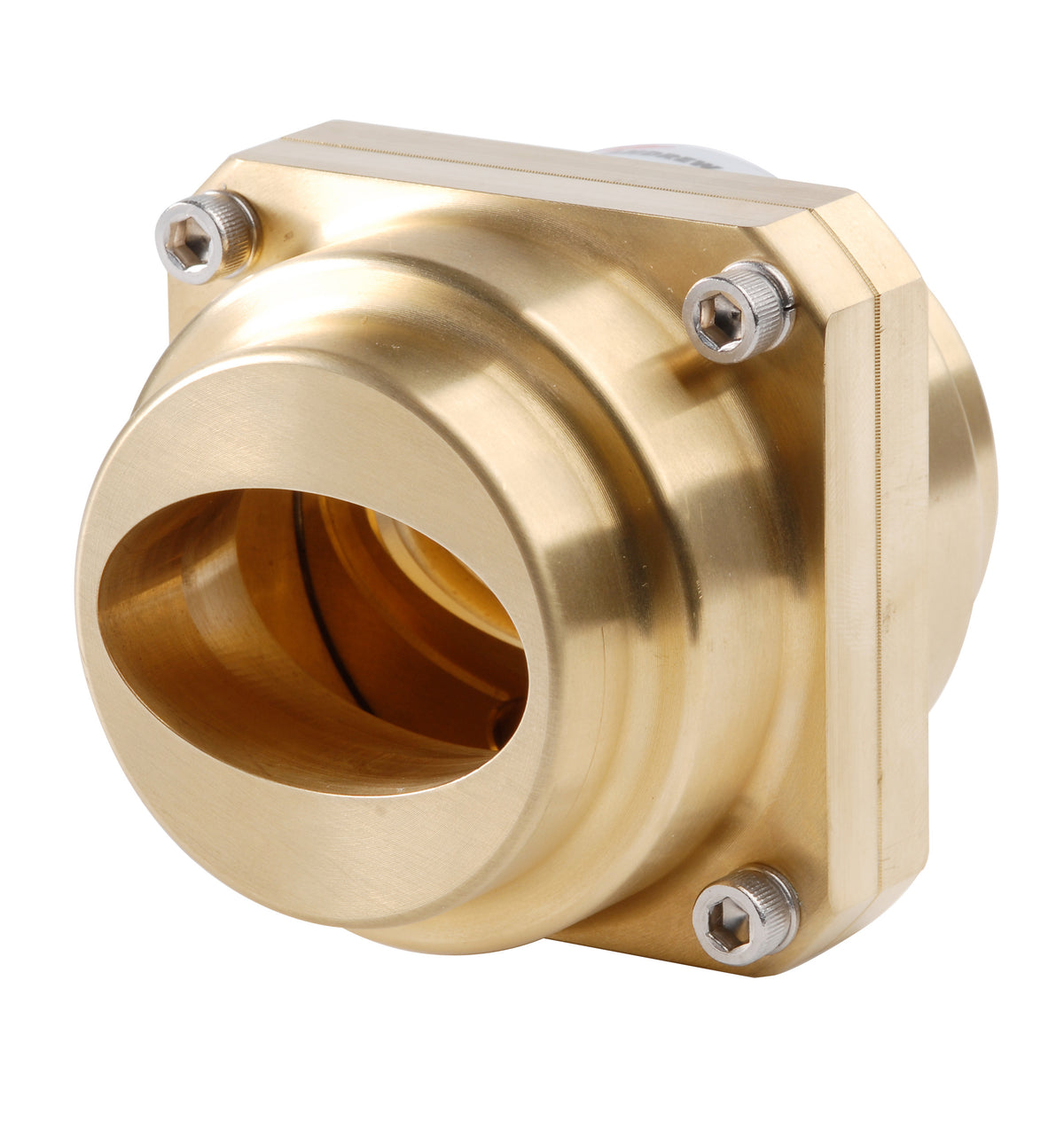

Commscope 177DZ | Splice for elliptical waveguide 77
Regular price
$458.17
Unit price
Brand: CommScope
|
SKU:
10179836
Regular price
$458.17
Unit price
Description
Description
Splice for elliptical waveguide 77
Specifications
Specifications
Product Classification
| Product Type | Elliptical waveguide connector |
|---|
General Specifications
| Attachment Method | Tab-flare | Tool-flare |
|---|---|
| Body Style | Splice |
| Inner Contact Plating | Unplated |
| Interface | Splice |
| Outer Contact Plating | Unplated |
| Pressurizable | Yes |
Dimensions
| Width | 88.392 mm | 3.48 in |
|---|---|
| Length | 75.184 mm | 2.96 in |
Electrical Specifications
| Insertion Loss, typical | 0.01 dB |
|---|---|
| Operating Frequency Band | 6.100 – 8.5 GHz |
Material Specifications
| Material Type | Brass |
|---|
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
Packaging and Weights
| Weight, net | 1.3 kg | 2.866 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
