Brand: CommScope
|
SKU:
10404503

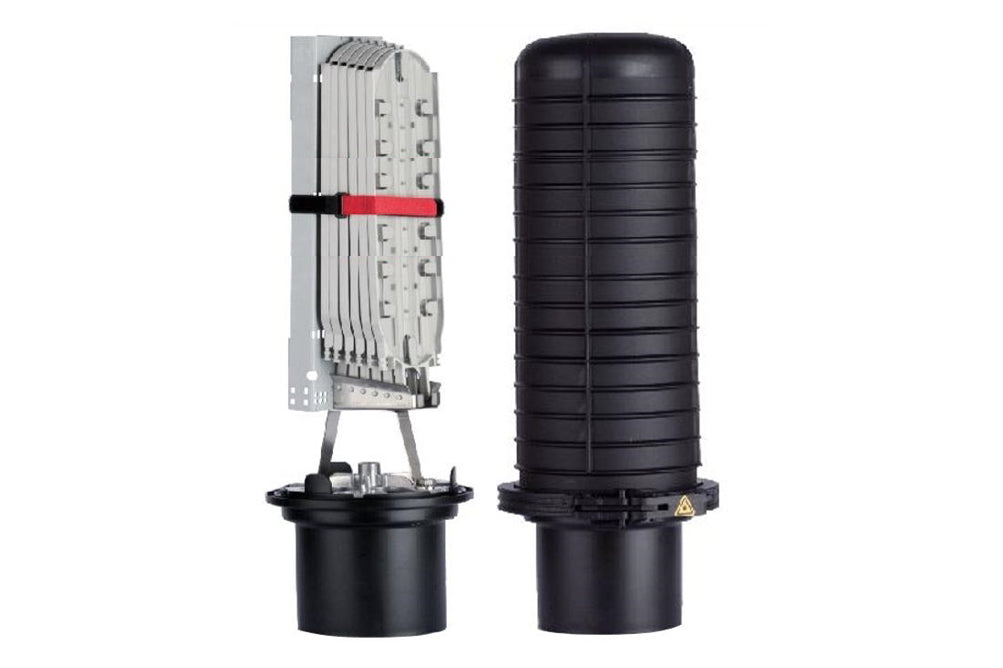

CommScope 188531-000 | FOSC 450 D6 Fiber Optic Splice Closure, Gel Cable sealing, six pre-installed 72-splice trays, with test valve
Regular price
$1,036.62
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 188531-000 | FOSC 450 D6 Fiber Optic Splice Closure, Gel ...
Regular price
$1,036.62
Unit price
Brand: CommScope
|
SKU:
10404503
Regular price
$1,036.62
Unit price
Shipping calculated at checkout.
Description
Description
CommScope 188531-000 | FOSC 450 D6 Fiber Optic Splice Closure, Gel Cable sealing, six pre-installed 72-splice trays, with test valve
Specifications
Specifications
CommScope - 188531-000 - Product Categories
- Cabinets, Panels, Enclosures & Power
- Closures & Terminals
- Fiber Splice Closures
CommScope - 188531-000 - Product Classification
| Regional Availability | Latin America | North America |
|---|---|
| Product Type | Single-ended, round fiber closure |
| Product Brand | FOSC |
| Product Series | FOSC 450 |
CommScope - 188531-000 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | FOSC 450 D6 Fiber Optic Splice Closure, Gel Cable sealing, six pre-installed 72-splice trays, with test valve |
| Model Number | 188531-000 | FOSC450-D6-6-72-6-DNV-UG |
| Cable Entry Drop Port Style | Round |
| Cable Entry Main Port Style | Round |
| Cable Ports Quantity, total | 6 round ports |
| Cable Sealing Type | Compressed gel |
| Closure Sealing Type | Dome-to-base clamp with O-ring |
| Closure Style | Single-ended |
| Color | Black |
| Fiber Storage Basket Type | D6 standard size |
| Flash Test Valve | Pre-installed |
| Ground Feed-through | None |
| Mounting | Pole | Strand | Wall |
| Network Area Type | Feeder |
| Splice Tray Included, quantity | 6 |
| Splice Tray Type Included | 72-way, heat shrink |
| Splicing Capacity, Mass Fusion, maximum | 1152 |
| Splicing Capacity, Single Fusion, maximum | 576 |
| Splicing Capacity, Single Splice, 12 fibers, maximum | 576 |
| Splicing Capacity, Single Splice, 6 fibers, maximum | 288 |
| Splicing Type, Supported | Mass fusion | Single fusion |
CommScope - 188531-000 - Additional Information
| Dimensions | - |
|---|---|
| Length | 753 mm | 29.646 in |
| Diameter | 254 mm | 10 in |
| Diameter, with clamp | 292 mm | 11.496 in |
| Main Cable Diameter, maximum | 25 mm | 0.984 in |
| Material Specifications | - |
| Material Type | Impact-resistant polymer |
| Environmental Specifications | - |
| Environmental Space | Below ground | Buried |
| Qualification Standards | IEC 61300, 5 m waterhead |
| Water Resistance | Flash test valve at 5 psi (40 kPa) |
