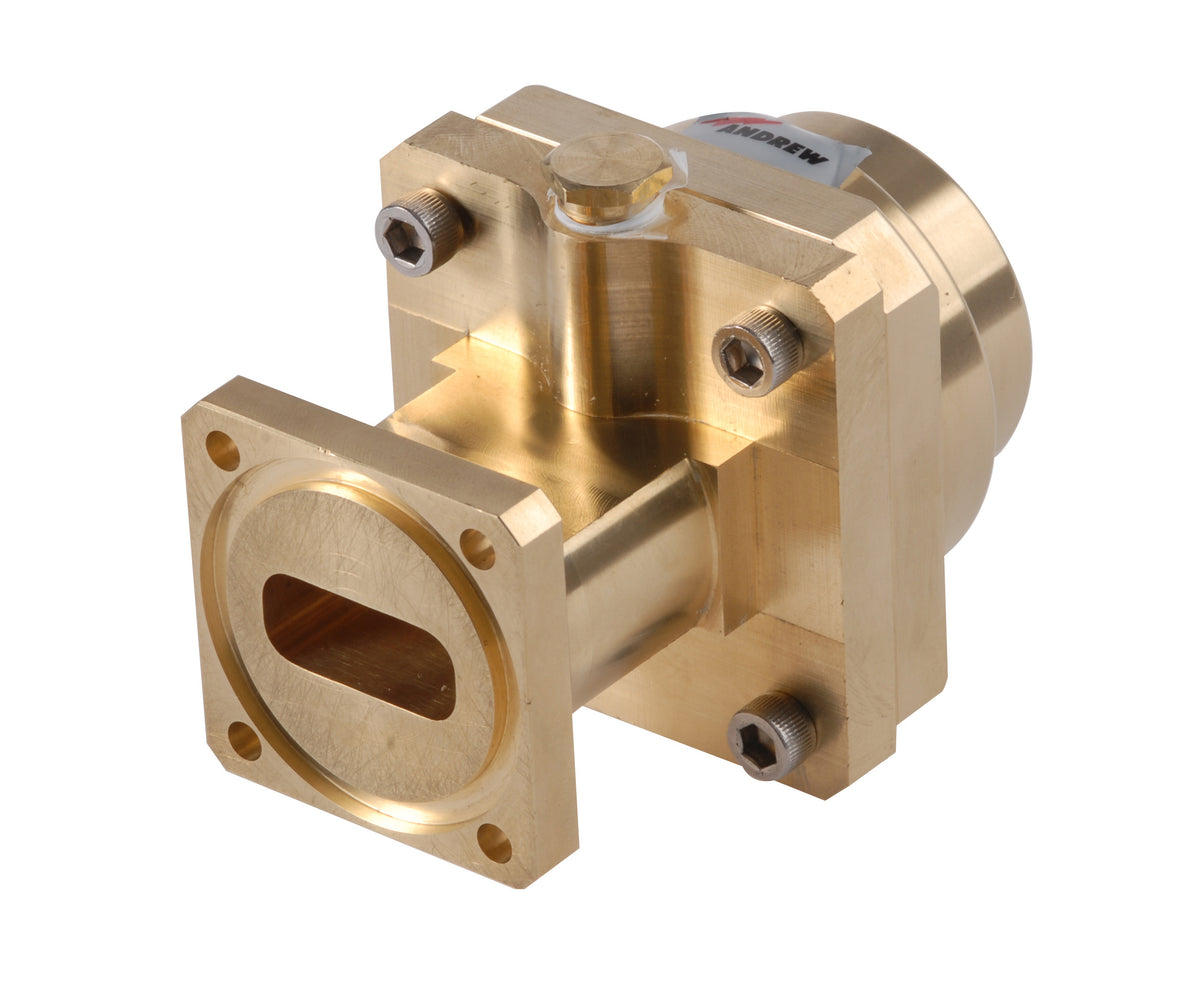

Commscope 190SCM | Fixed-tuned PBR100 for elliptical waveguide 90
Regular price
$467.81
Unit price
Brand: CommScope
|
SKU:
464043
Regular price
$467.81
Unit price
Description
Description
Commscope 190SCM | Fixed-tuned PBR100 for elliptical waveguide 90
Specifications
Specifications
Product Classification
| Product Type | Elliptical waveguide connector |
|---|
General Specifications
| Attachment Method | Tab-flare / Tool-flare |
|---|---|
| Body Style | Straight, fixed-tuned |
| Inner Contact Plating | Unplated |
| Interface | PBR100 |
| Outer Contact Plating | Unplated |
| Pressurizable | Yes |
Dimensions
| Width | 55.88 mm / 2.2 in |
|---|---|
| Length | 80.772 mm / 3.18 in |
| Transition Length | 46.228 mm / 1.82 in |
| Waveguide Size | WR90 / WG16 / R100 |
Electrical Specifications
| Insertion Loss, typical | 0.01 dB |
|---|---|
| Operating Frequency Band | 10.2 – 11.7 GHz |
| Peak Power at Frequency, maximum | 44.90 kW @ 11.20 GHz |
Material Specifications
| Material Type | Brass |
|---|
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
Packaging and Weights
| Weight, net | 1 kg / 2.205 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant/Exempted |
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
