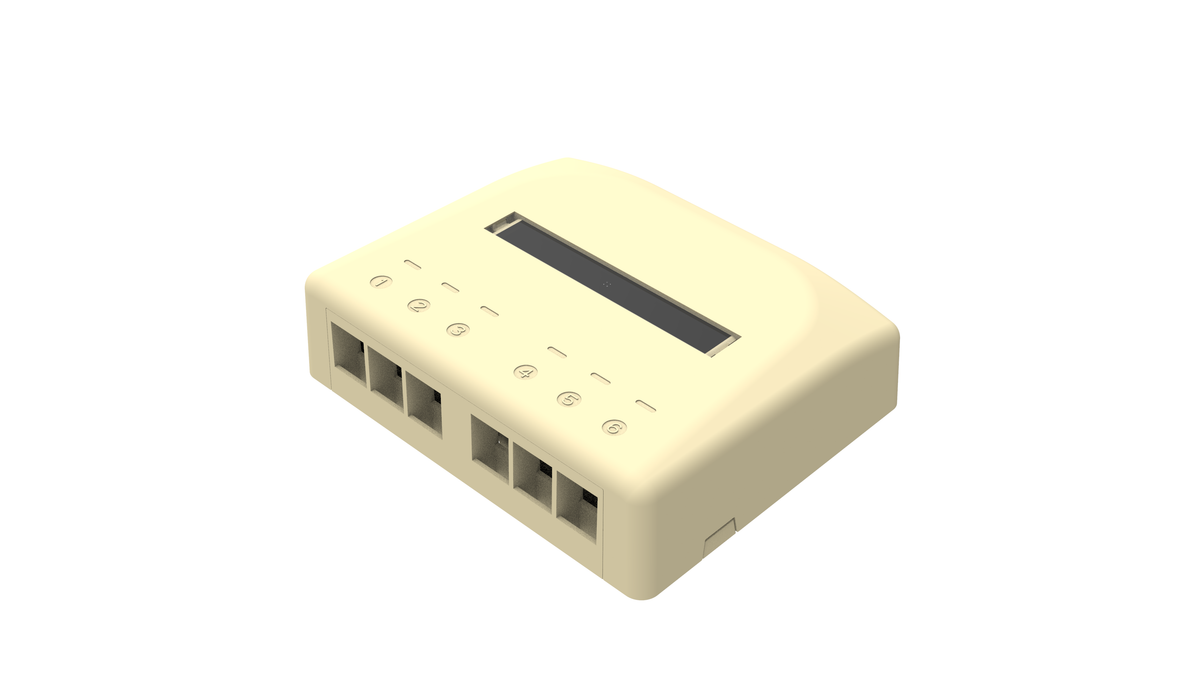

Commscope 1933674-1 | Surface Mount Module, 6 Port, Light Almond
Regular price
$15.99
Unit price
Brand: CommScope
|
SKU:
398961
Regular price
$15.99
Unit price
Description
Description
Commscope 1933674-1 | Surface Mount Module, 6 Port, Light Almond
The AMP NETCONNECT Surface-mount modules provide surface-mount solutions for the 110Connect and SL Series systems. They accept cables through the base or sides. The side knockouts are compatible with Wiremold 400, 800 and similar surface raceways. Two- and four-port Surface Mount Modules accept 110Connect jacks; SL Series modular, multimedia and MT-RJ jacks. Six-port modules only accept SL Series modular jacks, MT-RJ outlet jacks, and SL Series multimedia inserts. Available in other colors.
Specifications
Specifications
Commscope - 1933674-1 - Product Categories
- Faceplates & Boxes
- Surface Mount & Zone Boxes
Commscope - 1933674-1 - Specifications
| Brand Name | Hoffman |
|---|---|
| Manufacturer Part Number | 1933674-1 |
| Item Description | Surface Mount Module, 6 Port, Light Almond |
| Product Classification | - |
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | NETCONNECT |
| Product Type | Surface mount module |
| General Specifications | - |
| ANSI/TIA Category | 6 |
| Application | Used with SL, SLX outlets |
| Color | Light almond |
| Mounting | Surface |
| Outlet Orientation | Flat |
| Port Marking Type | Icon | Label |
| Total Ports, quantity | 6 |
| Dimensions | - |
| Height | 38 mm | 1.496 in |
| Width | 142.3 mm | 5.602 in |
| Depth | 116.2 mm | 4.575 in |
| Environmental Specifications | - |
| Environmental Space | Indoor |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | cUL US 1863 |
