Brand: CommScope
|
SKU:
CM-02524UTP-5AE-094K

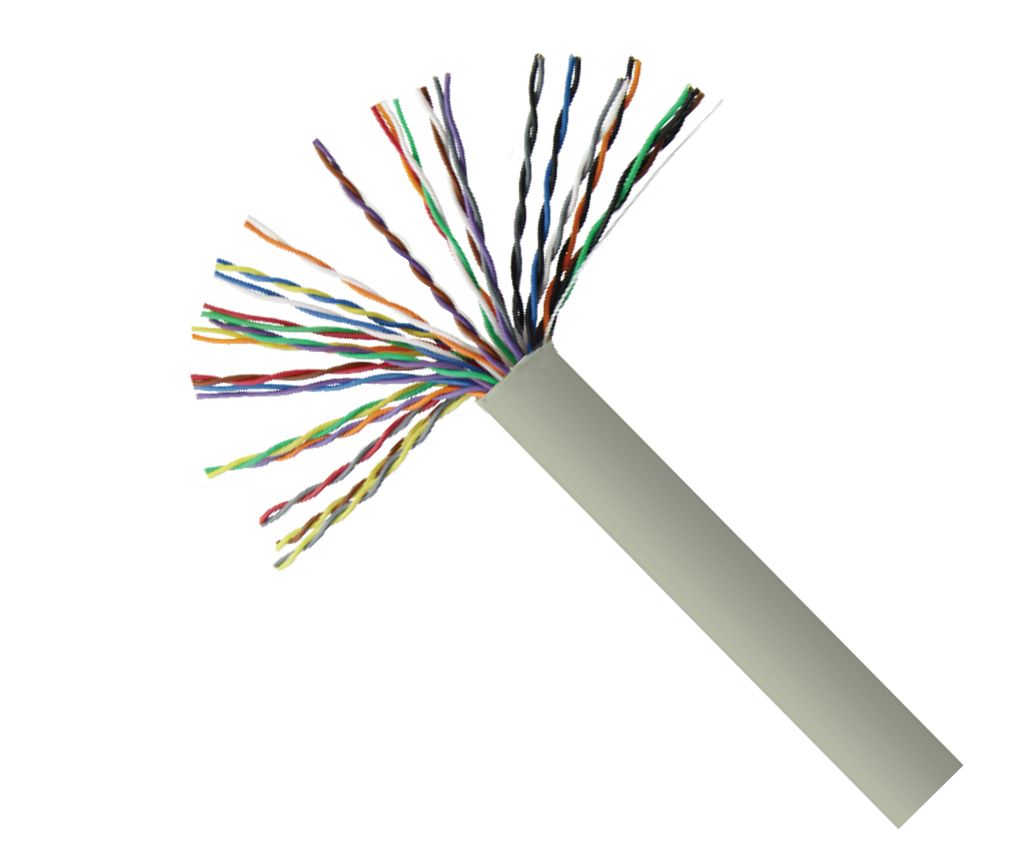

CommScope 2-1499418-2 | Copper Cable, category 5e, 25 Pair, UTP, 100 MHz, CMR rated, 24 AWG, 4000 ft reel, slate
Regular price
$5.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 2-1499418-2 | Copper Cable, category 5e, 25 Pair, UTP, 10...
Regular price
$5.39
Unit price
Brand: CommScope
|
SKU:
CM-02524UTP-5AE-094K
Regular price
$5.39
Unit price
Shipping calculated at checkout.
Description
Description
CommScope 2-1499418-2 | Copper Cable, category 5e, 25 Pair, UTP, 100 MHz, CMR rated, 24 AWG, 4000 ft reel, slate
Specifications
Specifications
CommScope - 2-1499418-2 - Product Categories
- Cables
- Twisted Pair Cables
CommScope - 2-1499418-2 - General Specifications
| Brand Name | CommScope |
|---|---|
| Manufacturer Part Number | 2-1499418-2 | 1061F SLT C5E 25/24 U/UTP R4000 |
| Item Description | Copper Cable, category 5e, 25 Pair, UTP, 100 MHz, CMR rated, 24 AWG, 4000 ft reel, slate |
| Product Number | 1061F |
| ANSI/TIA Category | 5e |
| Cable Component Type | Horizontal |
| Cable Type | U/UTP (unshielded) |
| Conductor Type, singles | Solid |
| Conductors, quantity | 50 |
| Jacket Color | Slate |
| Pairs, quantity | 25 |
| Transmission Standards | ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801 Class D |
CommScope - 2-1499418-2 - Product Classification
| Regional Availability | Asia | Latin America | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Twisted pair cable |
CommScope - 2-1499418-2 - Physical Specifications
| Dimensions | - |
|---|---|
| Cable Length | 1219.200 m | 4000 ft |
| Diameter Over Jacket, nominal | 12.7 mm | 0.5 in |
| Conductor Gauge, singles | 24 AWG |
| Material Specifications | - |
| Conductor Material | Bare copper |
| Insulation Material | High density polyethylene (HDPE) |
| Jacket Material | PVC |
| Environmental Specifications | - |
| Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Environmental Space | Non-plenum |
| Packaging and Weights | - |
| Cable weight | 199.414 kg/km | 134 lb/kft |
| Packaging Type | Reel |
| Regulatory Compliance/Certifications | - |
| Agency | Classification |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
