Brand: CommScope
|
SKU:
CMP-05024MAX-3-1K

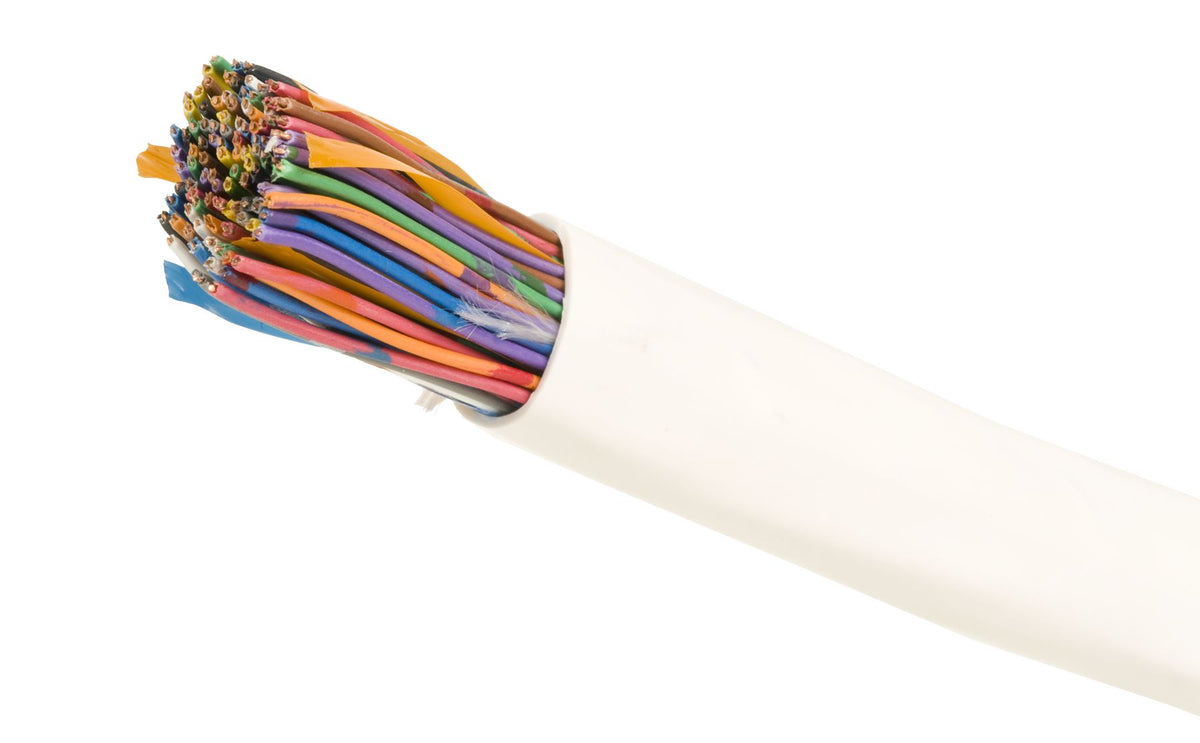

Commscope 2010B WH 50/24 R1000 | 2010B Category 3 U/UTP Cable, plenum, white jacket, 50 pair count, 1000 ft (305 m) length, reel
Regular price
$8.89
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 2010B WH 50/24 R1000 | 2010B Category 3 U/UTP Cable, plen...
Regular price
$8.89
Unit price
Brand: CommScope
|
SKU:
CMP-05024MAX-3-1K
Regular price
$8.89
Unit price
Shipping calculated at checkout.
Description
Description
Commscope 2010B WH 50/24 R1000 | 2010B Category 3 U/UTP Cable, plenum, white jacket, 50 pair count, 1000 ft (305 m) length, reel
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Twisted pair cable |
General Specifications
| Product Number | 2010B |
|---|---|
| ANSI/TIA Category | 3 |
| Cable Component Type | Backbone |
| Cable Type | U/UTP (unshielded) |
| Conductor Type, singles | Solid |
| Conductors, quantity | 100 |
| Jacket Color | White |
| Pairs, quantity | 50 |
| Transmission Standards | ANSI/TIA-568.2-D |
Dimensions
| Cable Length | 304.8 m / 1000 ft |
|---|---|
| Diameter Over Jacket, nominal | 14.605 mm / 0.575 in |
| Jacket Thickness | 0.813 mm / 0.032 in |
| Conductor Gauge, singles | 24 AWG |
Electrical Specifications
| Characteristic Impedance | 100 ohm |
|---|---|
| Characteristic Impedance Tolerance | ±15 ohm |
| dc Resistance Unbalance, maximum | 0.05 |
| dc Resistance, maximum | 9.38 ohms/100 m / 2.859 ohms/100 ft |
| Dielectric Strength, minimum | 1500 Vac / 2500 Vdc |
| Mutual Capacitance at Frequency | 6.6 nF/100 m |
| 1 kHz | Operating Frequency, maximum |
| 16 MHz | Operating Voltage, maximum |
| 80 V | Safety Voltage Rating |
Material Specifications
| Conductor Material | Bare copper |
|---|---|
| Insulation Material | PVC |
| Jacket Material | PVC |
Mechanical Specifications
| Pulling Tension, maximum | 68.039 kg / 150 lb |
|---|
Environmental Specifications
| Installation temperature | 0 °C to +60 °C (+32 °F to +140 °F) |
|---|---|
| Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Environmental Space | Plenum |
| Flame Test Method | CMP/FT6 |
| Smoke Test Method | CMP/FT6 |
Packaging and Weights
| Cable weight | 354.183 kg/km / 238 lb/kft |
|---|---|
| Packaging Type | Reel |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
