Brand: CommScope
|
SKU:
CMP00424COMC5E033K

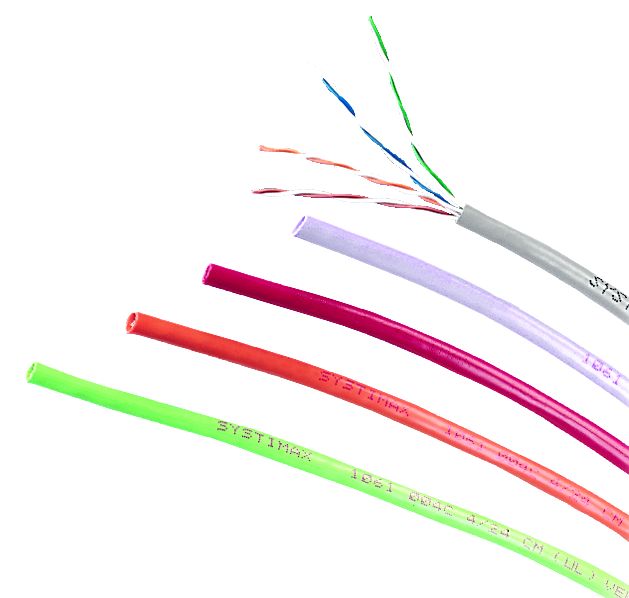

Commscope 2061F RD 4/24 R3000 | PowerSUM 2061F ETL Verified Category 5e U/UTP Cable, plenum, red jacket, 4 pair count, 3000 ft (914 m) length, reel
Regular price
$1.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 2061F RD 4/24 R3000 | PowerSUM 2061F ETL Verified Categor...
Regular price
$1.45
Unit price
Brand: CommScope
|
SKU:
CMP00424COMC5E033K
Regular price
$1.45
Unit price
Shipping calculated at checkout.
Description
Description
Commscope 2061F RD 4/24 R3000 | PowerSUM 2061F ETL Verified Category 5e U/UTP Cable, plenum, red jacket, 4 pair count, 3000 ft (914 m) length, reel
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | SYSTIMAX |
| Product Type | Twisted pair cable |
| Product Brand | PowerSUM |
General Specifications
| Product Number | 2061F |
|---|---|
| ANSI/TIA Category | 5e |
| Cable Component Type | Horizontal |
| Cable Type | U/UTP (unshielded) |
| Conductor Type, singles | Solid |
| Conductors, quantity | 8 |
| Jacket Color | Red |
| Pairs, quantity | 4 |
| Transmission Standards | ANSI/TIA-568.2-D / CENELEC EN 50288-3-1 / ISO/IEC 11801 Class D |
Dimensions
| Cable Length | 914.4 m / 3000 ft |
|---|---|
| Cable Length Tolerance | ±5% |
| Diameter Over Jacket, nominal | 5.08 mm / 0.2 in |
| Jacket Thickness | 0.635 mm / 0.025 in |
| Conductor Gauge, singles | 24 AWG |
Electrical Specifications
| dc Resistance Unbalance, maximum | 0.05 |
|---|---|
| dc Resistance, maximum | 9.38 ohms/100 m / 2.859 ohms/100 ft |
| Dielectric Strength, minimum | 1500 Vac / 2500 Vdc |
| Mutual Capacitance at Frequency | 5.6 nF/100 m |
| 1 kHz | Nominal Velocity of Propagation (NVP) |
| 0.76 | Operating Frequency, maximum |
| 200 MHz | Operating Voltage, maximum |
| 80 V | Remote Powering |
Material Specifications
| Conductor Material | Bare copper |
|---|---|
| Insulation Material | FEP / Polyolefin |
| Jacket Material | PVC |
Mechanical Specifications
| Pulling Tension, maximum | 11.34 kg / 25 lb |
|---|
Environmental Specifications
| Installation temperature | 0 °C to +60 °C (+32 °F to +140 °F) |
|---|---|
| Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Environmental Space | Plenum |
| Flame Test Method | CMP/FT6 |
| Smoke Test Method | CMP/FT6 |
Packaging and Weights
| Cable weight | 33.484 kg/km / 22.5 lb/kft |
|---|---|
| Packaging Type | Reel |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
