Brand: CommScope
|
SKU:
CMP-00424AVA-7-10Y

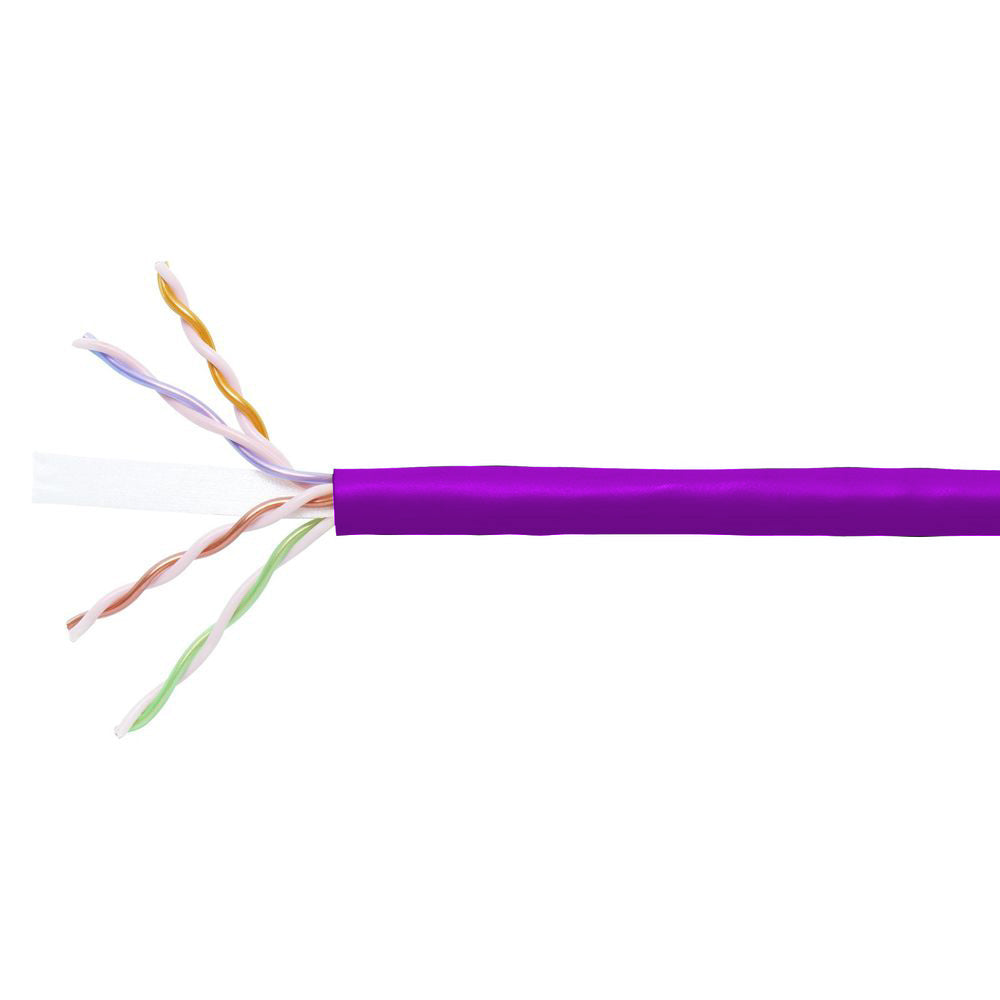

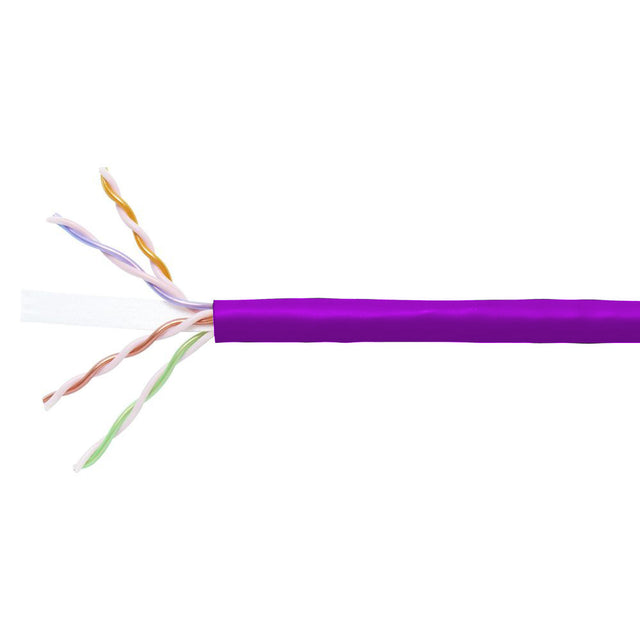

Commscope 2071E PRP C6 4/23 U/UTP R1000 | GigaSPEED XL 2071E ETL Verified Category 6 U/UTP Cable, plenum, purple jacket, 4 pair count, 1000 ft (305 m) length, reel
Regular price
$1.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 2071E PRP C6 4/23 U/UTP R1000 | GigaSPEED XL 2071E ETL Ve...
Regular price
$1.45
Unit price
Brand: CommScope
|
SKU:
CMP-00424AVA-7-10Y
Regular price
$1.45
Unit price
Shipping calculated at checkout.
Description
Description
Commscope 2071E PRP C6 4/23 U/UTP R1000 | GigaSPEED XL 2071E ETL Verified Category 6 U/UTP Cable, plenum, purple jacket, 4 pair count, 1000 ft (305 m) length, reel
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | SYSTIMAX |
| Product Type | Twisted pair cable |
| Product Brand | GigaSPEED XL |
General Specifications
| Product Number | 2071E |
|---|---|
| ANSI/TIA Category | 6 |
| Cable Component Type | Horizontal |
| Cable Type | U/UTP (unshielded) |
| Conductor Type, singles | Solid |
| Conductors, quantity | 8 |
| Jacket Color | Purple |
| Pairs, quantity | 4 |
| Separator Type | Bisector |
| Transmission Standards | ANSI/TIA-568.2-D / CENELEC EN 50288-6-1 / ISO/IEC 11801 Class E |
Dimensions
| Cable Length | 304.8 m / 1000 ft |
|---|---|
| Diameter Over Conductor | 1.016 mm / 0.04 in |
| Diameter Over Jacket, nominal | 5.74 mm / 0.226 in |
| Jacket Thickness | 0.559 mm / 0.022 in |
| Conductor Gauge, singles | 23 AWG |
Electrical Specifications
| dc Resistance Unbalance, maximum | 0.05 |
|---|---|
| dc Resistance, maximum | 7.61 ohms/100 m / 2.32 ohms/100 ft |
| Dielectric Strength, minimum | 1500 Vac / 2500 Vdc |
| Mutual Capacitance at Frequency | 5.6 nF/100 m |
| 1 kHz | Nominal Velocity of Propagation (NVP) |
| 0.74 | Operating Frequency, maximum |
| 300 MHz | Operating Voltage, maximum |
| 80 V | Remote Powering |
Material Specifications
| Conductor Material | Bare copper |
|---|---|
| Insulation Material | FEP / Polyolefin |
| Jacket Material | PVC |
| Separator Material | Flame retardant polyolefin |
Mechanical Specifications
| Pulling Tension, maximum | 11.34 kg / 25 lb |
|---|
Environmental Specifications
| Installation temperature | 0 °C to +60 °C (+32 °F to +140 °F) |
|---|---|
| Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Environmental Space | Plenum |
| Temperature Rating, UL | 75 °C / 167 °F |
| Flame Test Method | CMP/FT6 |
| Smoke Test Method | CMP/FT6 |
Packaging and Weights
| Cable weight | 43.157 kg/km / 29 lb/kft |
|---|---|
| Packaging Type | Reel |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
