Brand: CommScope
|
SKU:
464099

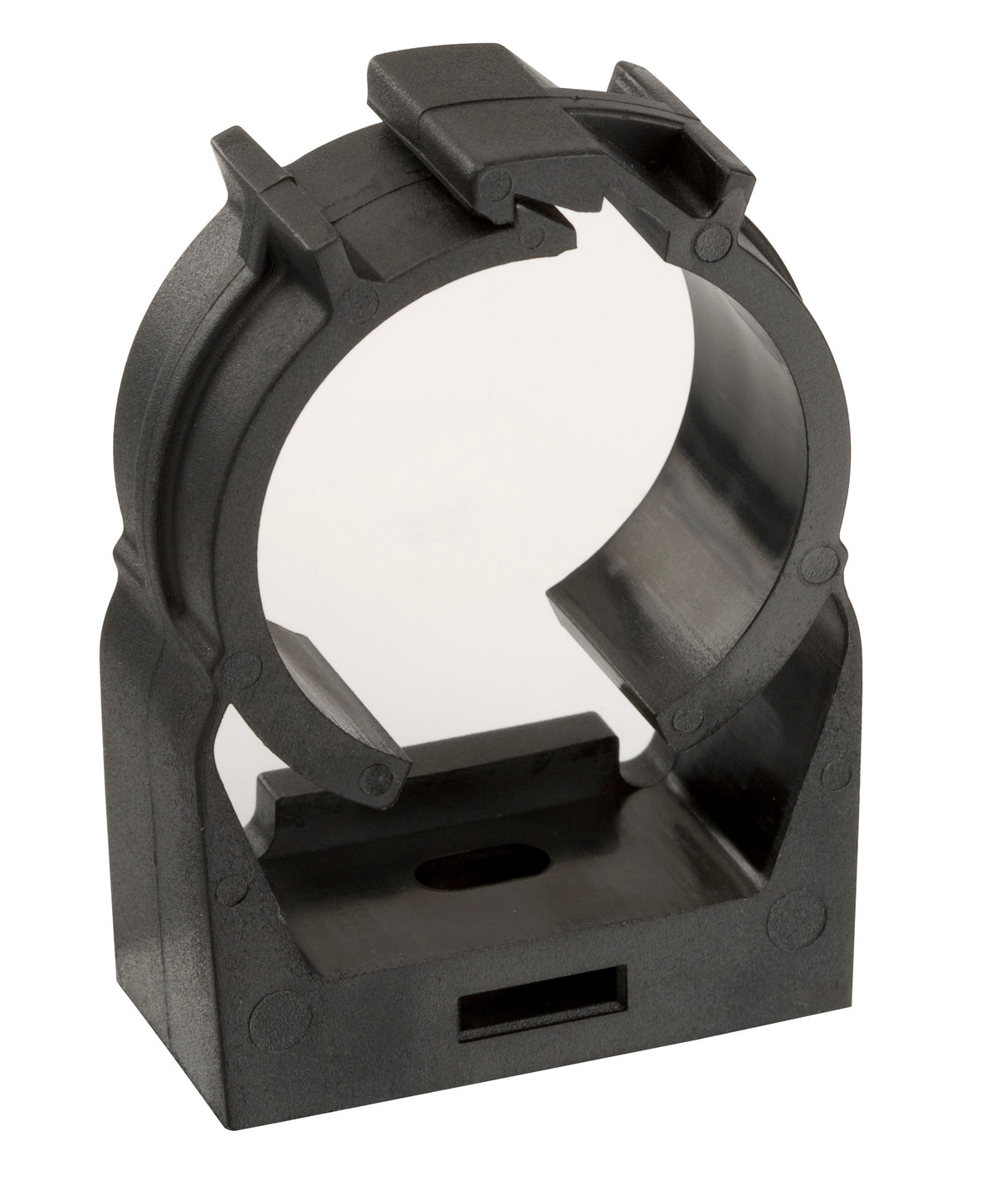

Commscope 209800-36B | Self-locking Hanger for 1-1/4 in RADIAX Radiating cable
Regular price
$139.98
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 209800-36B | Self-locking Hanger for 1-1/4 in RADIAX Radi...
Regular price
$139.98
Unit price
Description
Description
Commscope 209800-36B | Self-locking Hanger for 1-1/4 in RADIAX Radiating cable
Specifications
Specifications
Product Classification
| Product Type | Hanger kit |
|---|
General Specifications
| Cables per Hanger | 1 |
|---|---|
| Color | Black |
| Hanger Type | Self locking hanger |
Dimensions
| Height | 59.436 mm / 2.34 in |
|---|---|
| Maximum Stack Height | 2 |
| Width | 21.082 mm / 0.83 in |
| Length | 41.91 mm / 1.65 in |
| Compatible Diameter, maximum | 39.497 mm / 1.555 in |
| Compatible Diameter, minimum | 35.509 mm / 1.398 in |
| Nominal Size | 1-1/4 in |
Material Specifications
| Material Type | Polyamide PA12 |
|---|
Mechanical Specifications
| Maximum Load | 1200 N / 269.771 lbf |
|---|
Environmental Specifications
| Operating Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
|---|---|
| Flammability Test Method | UL 94-HB |
| Toxicity Index Test Method | IEC 60754-2 |
| UV Resistance, minimum with no degradation | ?500 hours exposure in accelerated UV life chamber |
Packaging and Weights
| Height, packed | 11.5 cm / 4.528 in |
|---|---|
| Width, packed | 14.5 cm / 5.709 in |
| Length, packed | 25 cm / 9.843 in |
| Packaging quantity | 50 |
| Weight, gross | 1.12 kg / 2.469 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
