Commscope 209800-47B | Self-locking Hanger for 1-5/8 in RADIAX Radi...
Regular price
$113.74
Unit price
Brand: CommScope
|
SKU:
464100
Regular price
$113.74
Unit price
Description
Description

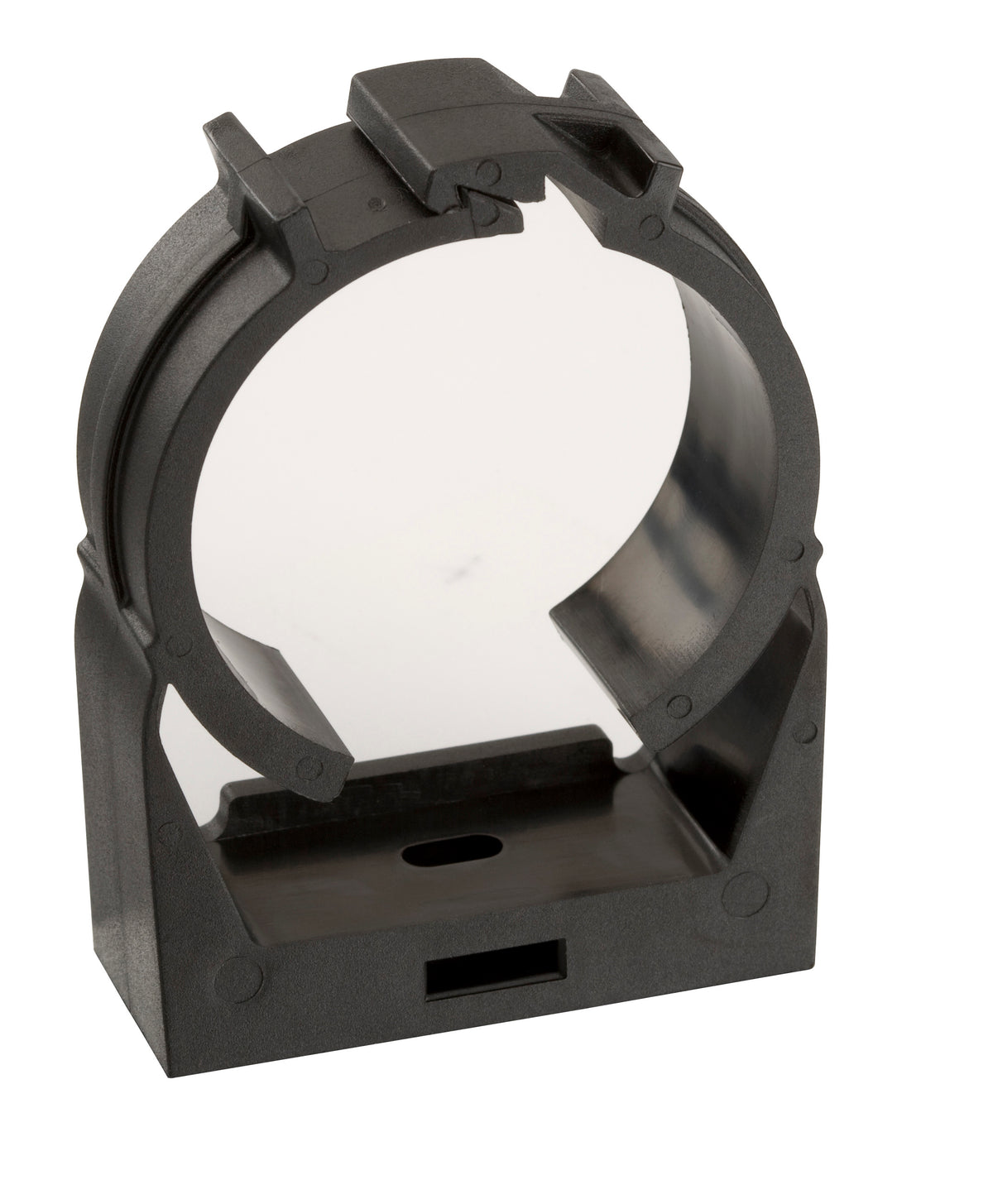

Commscope 209800-47B | Self-locking Hanger for 1-5/8 in RADIAX Radiating cable
Specifications
Specifications
Product Classification
| Product Type | Hanger kit |
|---|
General Specifications
| Cables per Hanger | 1 |
|---|---|
| Color | Black |
| Hanger Type | Self locking hanger |
Dimensions
| Height | 72.898 mm / 2.87 in |
|---|---|
| Maximum Stack Height | 2 |
| Width | 22.098 mm / 0.87 in |
| Length | 53.594 mm / 2.11 in |
| Compatible Diameter, maximum | 50.495 mm / 1.988 in |
| Compatible Diameter, minimum | 46.507 mm / 1.831 in |
| Nominal Size | 1-5/8 in |
Material Specifications
| Material Type | Polyamide PA12 |
|---|
Mechanical Specifications
| Maximum Load | 1400 N / 314.733 lbf |
|---|
Environmental Specifications
| Operating Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
|---|---|
| Flammability Test Method | UL 94-HB |
| Toxicity Index Test Method | IEC 60754-2 |
| UV Resistance, minimum with no degradation | ?500 hours exposure in accelerated UV life chamber |
Packaging and Weights
| Height, packed | 11.5 cm / 4.528 in |
|---|---|
| Width, packed | 8.5 cm / 3.346 in |
| Length, packed | 30 cm / 11.811 in |
| Packaging quantity | 25 |
| Weight, gross | 2.1 kg / 4.63 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
