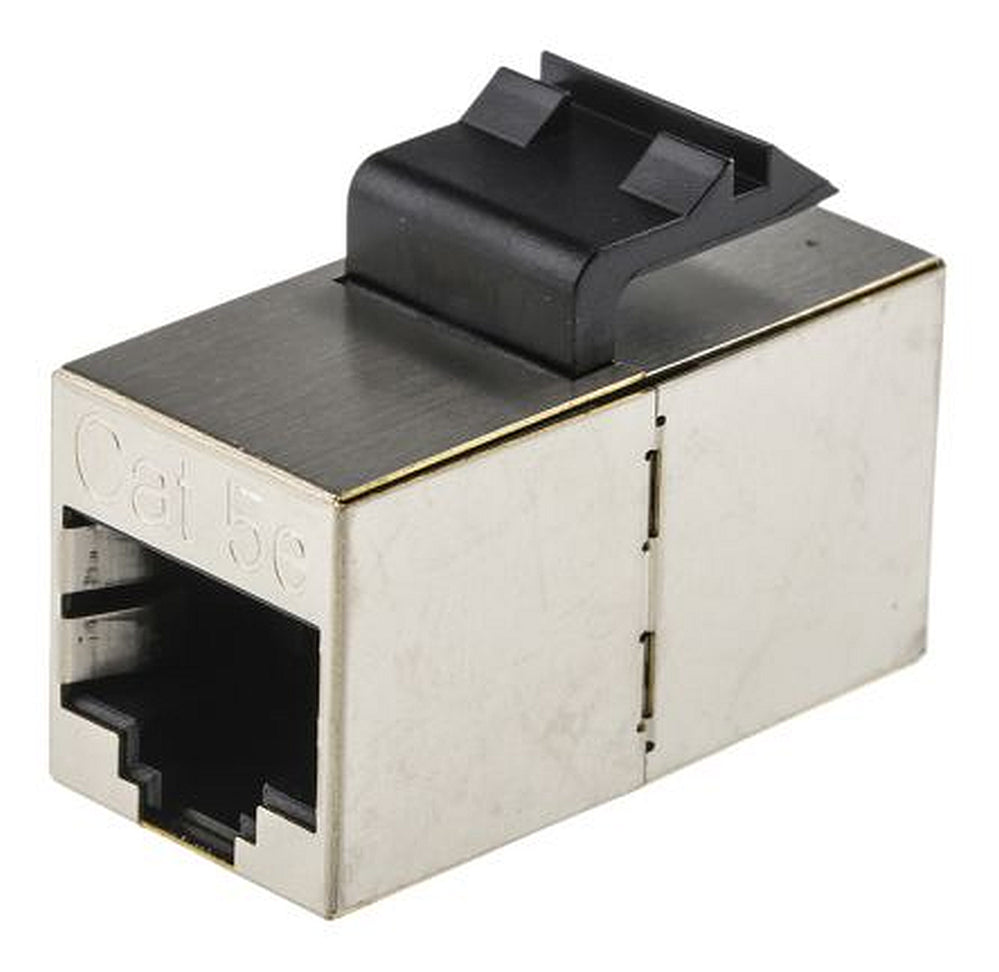

Commscope 2111122-1 | SL Series Coupler, category 5e, inline, shielded
Regular price
$15.99
Unit price
Brand: CommScope
|
SKU:
432940
Regular price
$15.99
Unit price
Description
Description
Commscope 2111122-1 | SL Series Coupler, category 5e, inline, shielded
Specifications
Specifications
Product Classification
| Regional Availability | Asia / EMEA / Latin America / North America |
|---|---|
| Portfolio | NETCONNECT |
| Product Type | Modular jack coupler |
| Product Series | SL Series |
General Specifications
| ANSI/TIA Category | 5e |
|---|---|
| Cable Type | Shielded |
| Color | Silver |
| Conductor Type | Solid / Stranded |
| Integrated Dust Cover Type | None |
| Outlet Type | Inline |
| Termination Type | IDC |
| Transmission Standards | ANSI/TIA-568-C.2 / ISO/IEC 11801 Class D |
| Wiring | T568A / T568B |
Dimensions
| Panel Cutout, recommended | 14.78 x 20.07 mm (0.58 x 0.79 in) |
|---|---|
| Panel Thickness, recommended | 1.6 mm / 0.063 in |
| Height | 20.62 mm / 0.812 in |
| Width | 14.6 mm / 0.575 in |
| Depth | 30 mm / 1.181 in |
| Contact Plating Thickness | 1.27 µm |
Electrical Specifications
| Contact Resistance, maximum | 20 mOhm |
|---|---|
| Insulation Resistance, minimum | 500 mOhm |
| Safety Voltage Rating | 150 Vac |
Material Specifications
| Contact Base Material | Phosphor bronze |
|---|---|
| Contact Plating Material | Gold |
| Material Type | Polycarbonate |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
|---|
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Relative Humidity | Up to 90%, non-condensing |
| Flammability Rating | UL 94 V-0 |
Packaging and Weights
| Packaging quantity | 25 |
|---|---|
| Packaging Type | Bag |
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
