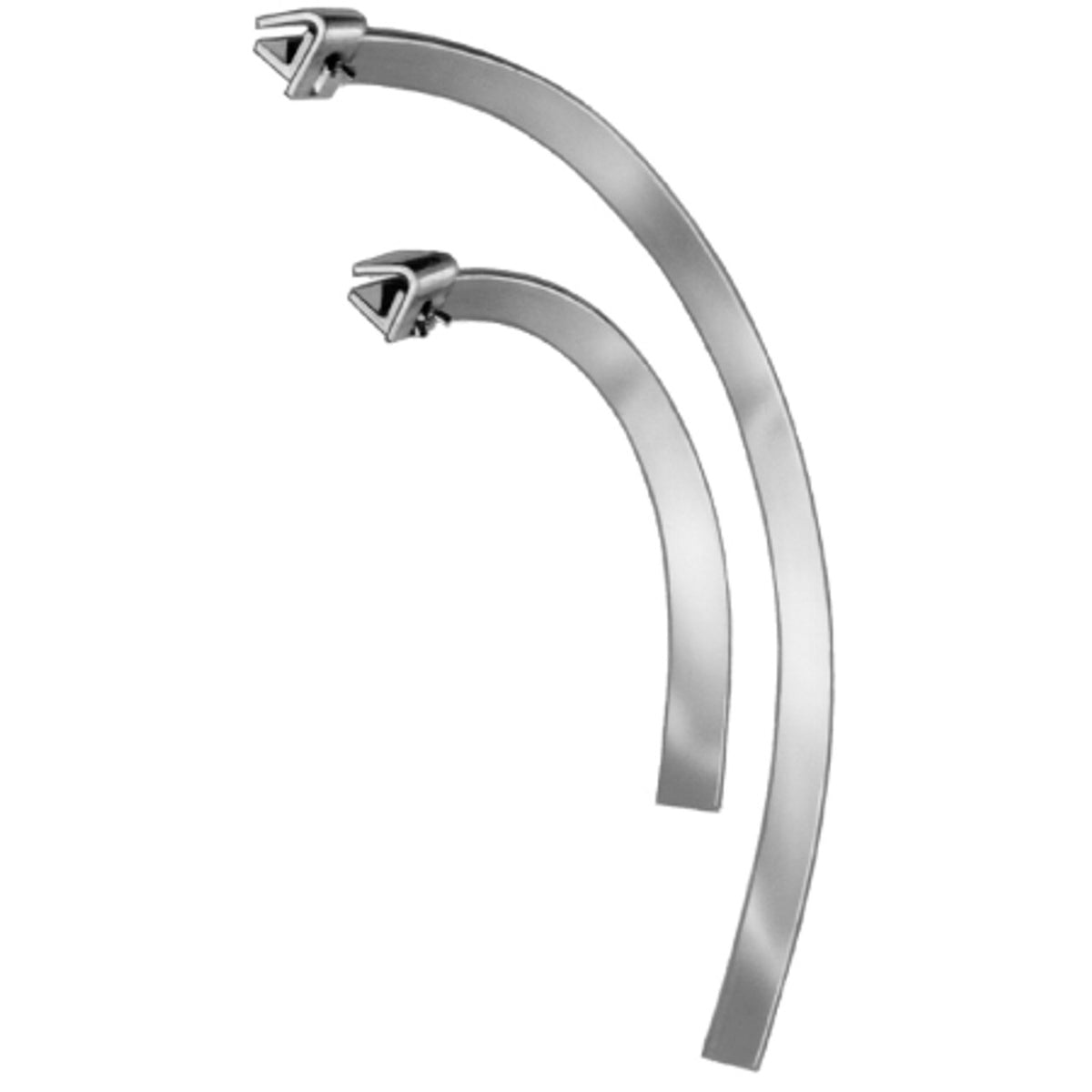

Commscope 2132SCM | Fixed-tuned PBR120 for elliptical waveguide 132
Regular price
$518.73
Unit price
Brand: CommScope
|
SKU:
464103
Regular price
$518.73
Unit price
Description
Description
Commscope 2132SCM | Fixed-tuned PBR120 for elliptical waveguide 132
Specifications
Specifications
Product Classification
| Product Type | Elliptical waveguide connector |
|---|
General Specifications
| Attachment Method | Tab-flare / Tool-flare |
|---|---|
| Body Style | Straight, fixed-tuned |
| Inner Contact Plating | Unplated |
| Interface | PBR120 |
| Outer Contact Plating | Unplated |
| Pressurizable | Yes |
Dimensions
| Width | 52.324 mm / 2.06 in |
|---|---|
| Length | 70.612 mm / 2.78 in |
| Transition Length | 36.322 mm / 1.43 in |
| Waveguide Size | WR75 / WG17 / R120 |
Electrical Specifications
| Insertion Loss, typical | 0.01 dB |
|---|---|
| Operating Frequency Band | 13.75 – 14.50 GHz |
| Peak Power at Frequency, maximum | 36.60 kW @ 14.70 GHz |
Material Specifications
| Material Type | Brass |
|---|
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
Packaging and Weights
| Weight, net | 0.55 kg / 1.213 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
