Brand: CommScope | SKU: 256469

Commscope 221213 | Weatherproofing Kit for Connectors and Splices, includes butyl rubber and PVC tape

$25.93

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Commscope 221213 | Weatherproofing Kit for Connectors and Splices, includes butyl rubber and PVC tape

Specifications

Product Classification

Product Type	Weatherproofing tape
Ordering Note	CommScope standard product (Global)

General Specifications

Application	Provides additional moisture seal for cable connections
Applications per Kit	Four 1/2 in–7/8 in / Twelve 1/2 in–1/2 in / Twelve 1/2 in–7/8 in to device / Two 1/2 in–2-1/4 in
Harmonized System (HS) Code	854420 (Coaxial cable and other coaxial electric conductors)

Dimensions

Nominal Size	1-1/4 in / 1-5/8 in / 1/2 in / 1/4 in / 2-1/4 in / 3/8 in / 5/8 in / 7/8 in

Material Specifications

Material Type	Butyl rubber tape / PVC tape

Environmental Specifications

UV Resistance Test Method	Butyl test method in QUV weatherometer cycle of 8 hours UV at 150 °F then 4 hours of condensation at 104 °F / PVC tape test method UL 510, ASTM D1000
UV Resistance, minimum with no degradation	?1000 hours
Weather Resistance Test Method	04AS00-03.6.0 / MIL-STD-1344A, Method 1002

Packaging and Weights

Height, packed	195.58 mm / 7.7 in
Width, packed	175.26 mm / 6.9 in
Length, packed	96.52 mm / 3.8 in

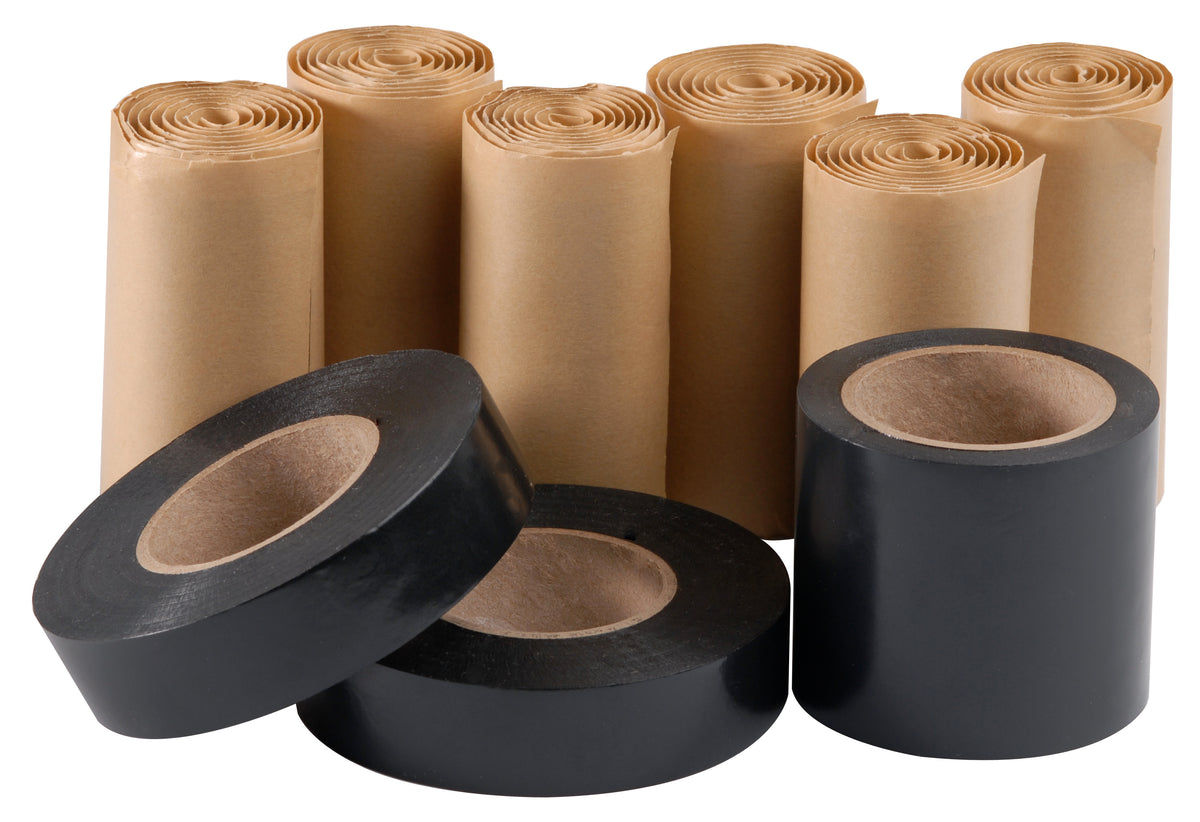

Included	One roll of 2 in PVC tape / Six rolls of 2-1/2 in butyl rubber tape / Two rolls of 3/4 in PVC tape
Packaging quantity	1
Weight, gross	1.52 kg / 3.351 lb

Regulatory Compliance/Certifications

ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
CHINA-ROHS	Below maximum concentration value
REACH-SVHC	Compliant as per SVHC revision on www.commscope.com/ProductCompliance

Documents and Downloads

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

5 stars: 2 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Great Protection for Cables

I utilized this tape to protect my cable connections to my radio antennas from the elements. In the past, I employed Coax Seal, which could be frustrating if I needed to access the connectors. However, this tape applies smoothly and holds just as well as Coax Seal. What's great about this product is its easy removability should I need to make any modifications to my antennas. I will not be using Coax Seal again.

Fixed Motor Home Windshield Leak Better than the Professionals!!

Our motor home's windshield had been leaking despite multiple repairs by professionals. However, after applying this product on the exterior of the windshield, we have not experienced any leakage even after two heavy rainfalls in two months
