Brand: CommScope
|
SKU:
CS2275V-FT

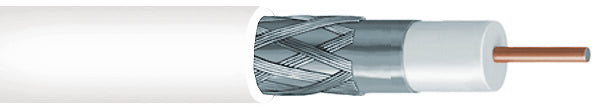

Commscope 2275V WHRL RG6 60 1000 | RG 6 Type 60% Braid Plenum Video Coaxial Cable, white jacket, 1000 ft (305 m) reel
Regular price
$1.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 2275V WHRL RG6 60 1000 | RG 6 Type 60% Braid Plenum Video...
Regular price
$1.45
Unit price
Description
Description
Commscope 2275V WHRL RG6 60 1000 | RG 6 Type 60% Braid Plenum Video Coaxial Cable, white jacket, 1000 ft (305 m) reel
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Coaxial video cable |
General Specifications
| Product Number | 2275V |
|---|---|
| Cable Type | Series 6 |
| Center Conductor Type | Solid |
| Construction Type | Non-armored |
| Jacket Color | White |
| Supported Application | Video |
Dimensions
| Cable Length | 304.8 m / 1000 ft |
|---|---|
| Diameter Over Dielectric | 4.318 mm / 0.17 in |
| Diameter Over Jacket Tolerance | ±0.006 in |
| Diameter Over Jacket, nominal | 6.071 mm / 0.239 in |
| Diameter Over Shield (Tape) | 4.521 mm / 0.178 in |
| Jacket Thickness | 0.381 mm / 0.015 in |
| Jacket Thickness, minimum spot | 0.254 mm / 0.01 in |
| Center Conductor Gauge | 18 AWG |
| Shield (Braid) Gauge | 34 AWG |
Electrical Specifications
| Capacitance | 50.853 pF/m / 15.5 pF/ft |
|---|---|
| Characteristic Impedance | 75 ohm |
| Characteristic Impedance Tolerance | ±3 ohm |
| Conductor dc Resistance | 93.832 ohms/km / 28.6 ohms/kft |
| Dielectric Strength, conductor to shield | 2000 Vdc |
| Jacket Spark Test Voltage | 2500 Vac |
| Nominal Velocity of Propagation (NVP) | 0.84 |
| Shield dc Resistance | 29.528 ohms/km / 9 ohms/kft |
| Structural Return Loss | 15 dB |
| 1000–3000 MHz / 20 dB | 5–1000 MHz |
| Structural Return Loss Test Method | 100% Swept Tested |
Material Specifications
| Center Conductor Material | Copper-clad steel wire |
|---|---|
| Dielectric Material | Foam FEP |
| Jacket Material | PVC |
| Shield (Braid) Coverage | 0.6 |
| Shield (Braid) Material | Aluminum |
| Shield (Tape) Material | Aluminum/Poly |
Mechanical Specifications
| Minimum Bend Radius, loaded, times | 20 times |
|---|---|
| Minimum Bend Radius, unloaded, times | 10 times |
Environmental Specifications
| Environmental Space | Plenum |
|---|---|
| Temperature Rating, UL | 60 °C / 140 °F |
| Flame Test Method | CMP |
| Safety Standard | ETL / cETL |
Packaging and Weights
| Cable weight | 38.692 kg/km / 26 lb/kft |
|---|---|
| Packaging Type | Reel |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
