Brand: CommScope
|
SKU:
471896

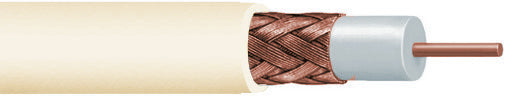

Commscope 2286V WTRL RG11 95 1000 | RG 11 Type 95% Braid Plenum Video Security Coaxial Cable, white jacket, 1000 ft (305 m) reel
Regular price
$3.34
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 2286V WTRL RG11 95 1000 | RG 11 Type 95% Braid Plenum Vid...
Regular price
$3.34
Unit price
Description
Description
Commscope 2286V WTRL RG11 95 1000 | RG 11 Type 95% Braid Plenum Video Security Coaxial Cable, white jacket, 1000 ft (305 m) reel
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Coaxial video cable |
General Specifications
| Product Number | 2286V |
|---|---|
| Cable Type | Series 11 |
| Center Conductor Type | Solid |
| Construction Type | Non-armored |
| Jacket Color | White |
| Supported Application | Security/CCTV |
Dimensions
| Cable Length | 304.8 m / 1000 ft |
|---|---|
| Diameter Over Center Conductor, specific | 0.0641 in per 1 strand |
| Diameter Over Dielectric | 7.061 mm / 0.278 in |
| Diameter Over Jacket Tolerance | ±0.006 in |
| Diameter Over Jacket, nominal | 8.661 mm / 0.341 in |
| Diameter Over Shield (Tape) | 7.747 mm / 0.305 in |
| Jacket Thickness | 0.457 mm / 0.018 in |
| Jacket Thickness, minimum spot | 0.305 mm / 0.012 in |
| Center Conductor Gauge | 14 AWG |
| Shield (Braid) Gauge | 34 AWG |
Electrical Specifications
| Capacitance | 52.493 pF/m / 16 pF/ft |
|---|---|
| Characteristic Impedance | 75 ohm |
| Characteristic Impedance Tolerance | ±3 ohm |
| Conductor dc Resistance | 9.514 ohms/km / 2.9 ohms/kft |
| Dielectric Strength, conductor to shield | 4000 Vdc |
| Jacket Spark Test Voltage | 5000 Vac |
| Nominal Velocity of Propagation (NVP) | 0.84 |
| Shield dc Resistance | 8.202 ohms/km / 2.5 ohms/kft |
| Structural Return Loss | 20 dB |
| 10–300 MHz | Structural Return Loss Test Method |
Material Specifications
| Center Conductor Material | Bare copper |
|---|---|
| Dielectric Material | Foam FEP |
| Jacket Material | PVC |
| Shield (Braid) Coverage | 0.95 |
| Shield (Braid) Material | Bare copper |
Mechanical Specifications
| Minimum Bend Radius, loaded, times | 20 times |
|---|---|
| Minimum Bend Radius, unloaded, times | 10 times |
Environmental Specifications
| Environmental Space | Plenum |
|---|---|
| Temperature Rating, UL | 75 °C / 167 °F |
| Flame Test Method | CMP |
| Safety Standard | ETL / cETL |
Packaging and Weights
| Cable weight | 113.100 kg/km / 76 lb/kft |
|---|---|
| Packaging Type | Reel |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
