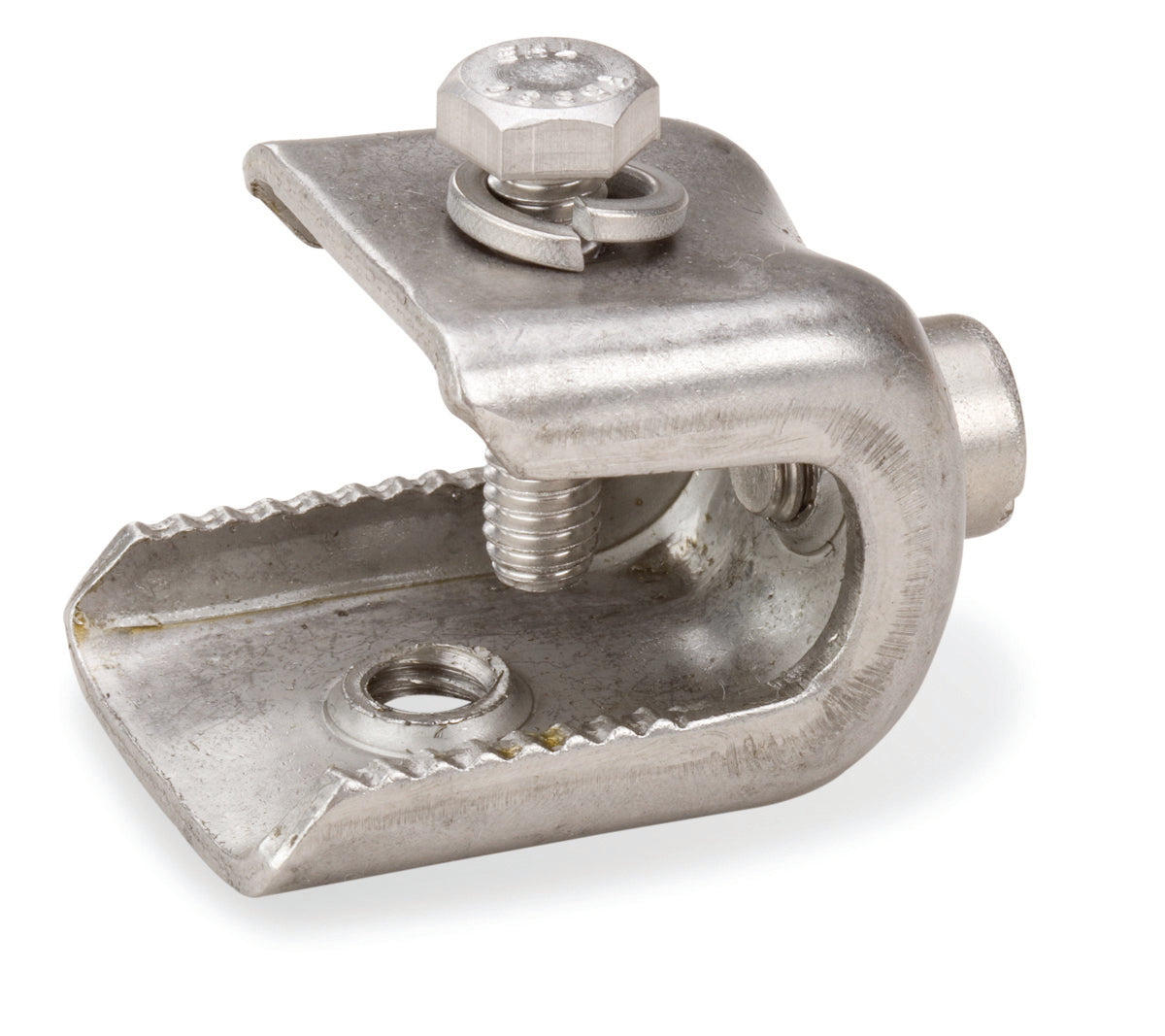

Commscope 243684-M | Angle Adapter, compact, M10 tapped hole
Regular price
$91.65
Unit price
Brand: CommScope
|
SKU:
464170
Regular price
$91.65
Unit price
Description
Description
Commscope 243684-M | Angle Adapter, compact, M10 tapped hole
Specifications
Specifications
Product Classification
| Product Type | Adapter |
|---|---|
| Ordering Note | CommScope non-standard product |
General Specifications
| Adapter Type | Angle adapter |
|---|---|
| Mounting | M10 tapped hole |
Dimensions
| Inside Width | 16.002 mm / 0.63 in |
|---|---|
| Outside Width | 38.1 mm / 1.5 in |
| Inside Length | 16.002 mm / 0.63 in |
| Outside Length | 46.99 mm / 1.85 in |
| Material Thickness | 2.972 mm / 0.117 in |
Material Specifications
| Material Type | Stainless steel |
|---|
Mechanical Specifications
| Installation Torque, maximum | 17.626 N-m / 13 ft lb |
|---|---|
| Installation Torque, minimum | 14.914 N-m / 11 ft lb |
| Maximum Loading | Double stack, 1-5/8 in cable |
Packaging and Weights
| Height, packed | 14 cm / 5.512 in |
|---|---|
| Width, packed | 14 cm / 5.512 in |
| Length, packed | 11 cm / 4.331 in |
| Packaging quantity | 10 |
| Weight, gross | 1.59 kg / 3.505 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
