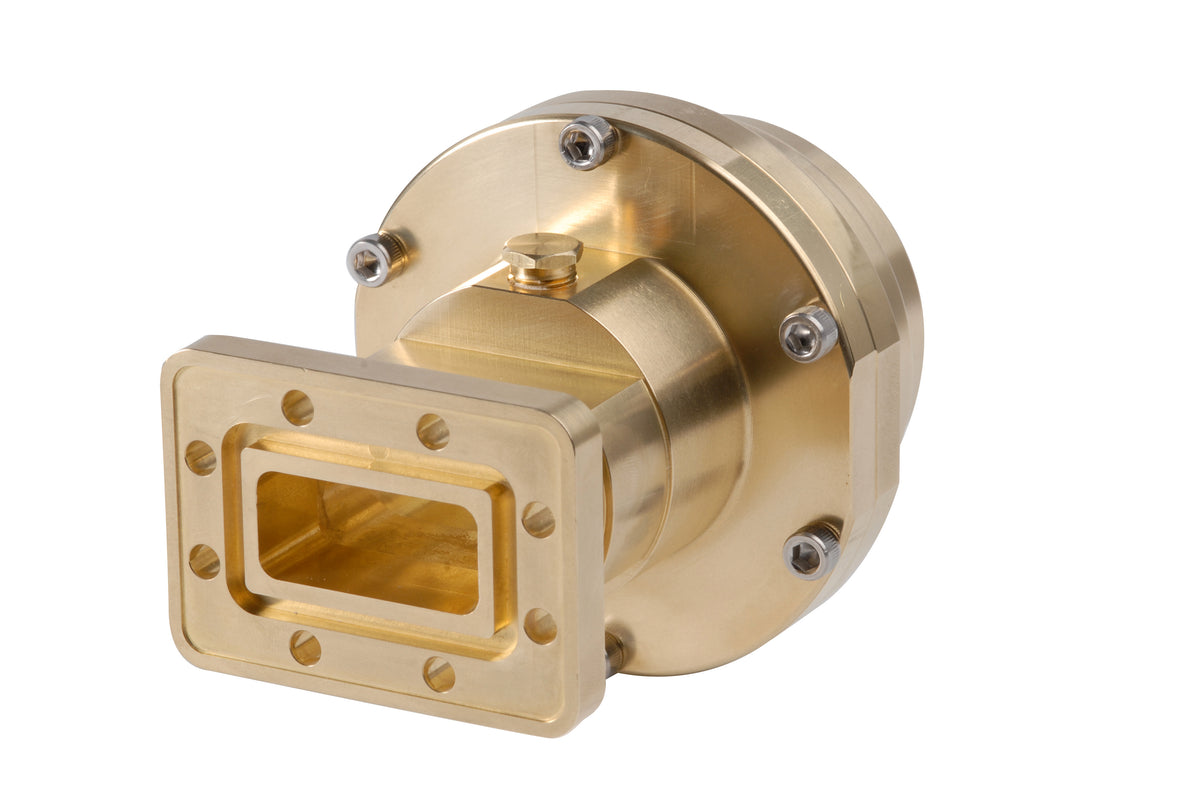

Commscope 252SEM | Fixed-tuned PDR70 for elliptical waveguide 52
Regular price
$599.93
Unit price
Brand: CommScope
|
SKU:
464203
Regular price
$599.93
Unit price
Description
Description
Commscope 252SEM | Fixed-tuned PDR70 for elliptical waveguide 52
Specifications
Specifications
Product Classification
| Product Type | Elliptical waveguide connector |
|---|
General Specifications
| Attachment Method | Tab-flare / Tool-flare |
|---|---|
| Body Style | Straight, fixed-tuned |
| Inner Contact Plating | Unplated |
| Interface | PDR70 |
| Outer Contact Plating | Unplated |
| Pressurizable | Yes |
Dimensions
| Width | 88.9 mm / 3.5 in |
|---|---|
| Length | 114.554 mm / 4.51 in |
| Transition Length | 75.692 mm / 2.98 in |
| Waveguide Size | WR137 / WG14 / R70 |
Electrical Specifications
| Insertion Loss, typical | 0.01 dB |
|---|---|
| Operating Frequency Band | 5.0 – 6.425 GHz |
| Peak Power at Frequency, maximum | 92.00 kW @ 6.00 GHz |
Material Specifications
| Material Type | Brass |
|---|
Environmental Specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
|---|---|
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
Packaging and Weights
| Weight, net | 1.8 kg / 3.968 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
