Brand: CommScope
|
SKU:
10176465

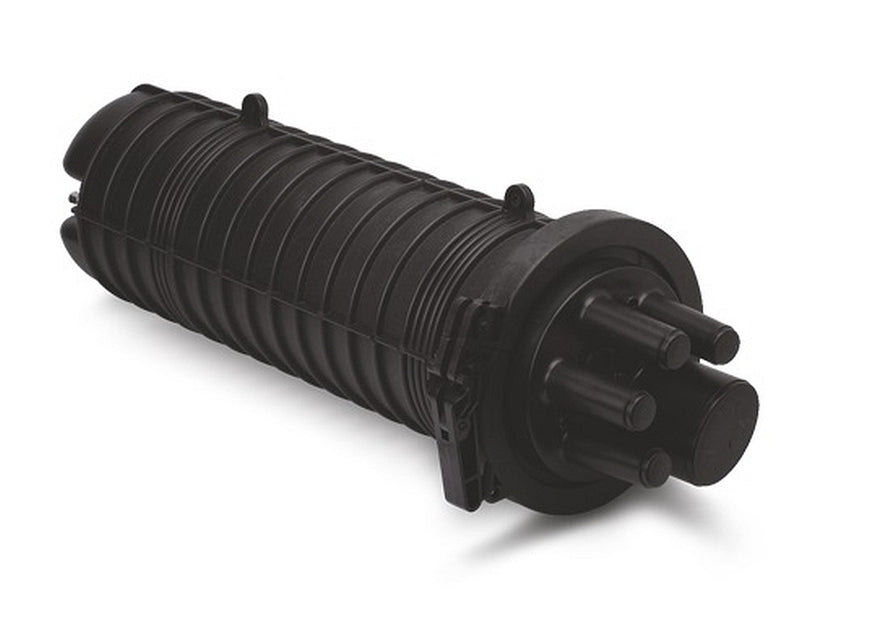

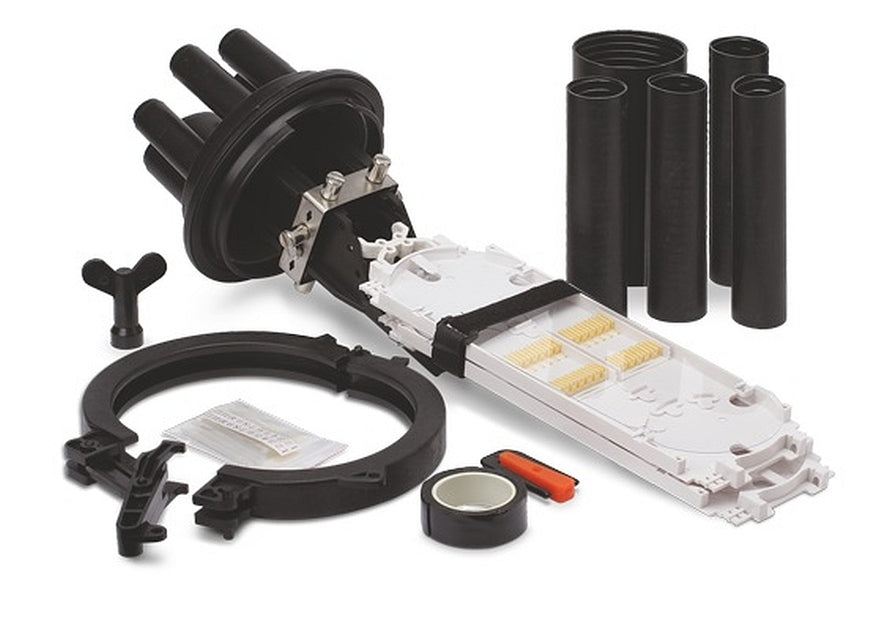

CommScope 256827-000 | Fiber Optic Splice Closure, Heat Shrink Cable Sealing, One pre-Installed 12-Splice Tray
Regular price
$301.34
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 256827-000 | Fiber Optic Splice Closure, Heat Shrink Cabl...
Regular price
$301.34
Unit price
Description
Description
CommScope 256827-000 | Fiber Optic Splice Closure, Heat Shrink Cable Sealing, One pre-Installed 12-Splice Tray
CommScope - 256827-000 - Features
- Single-ended, O-ring sealed dome closure for splicing feeder and distribution Cables
- Compatible with most common Cable types: e.g. loose tube, central core, ribbon Fiber
- FOSC splice trays hinged for access to any splice without disturbing other trays
- Closure can be used in aerial, pedestal and underground (up to 5 meters) environments
- Compatible with CommScope's CWDM modules and optical splitter trays
Specifications
Specifications
CommScope - 256827-000 - Dimension Drawing
| Click on image to enlarge. |
|---|
CommScope - 256827-000 - Specifications
| Regional Availability | Latin America | North America |
|---|---|
| Product Type | Single-ended, round Fiber closure |
| Product Brand | FOSC® |
| Product Series | FOSC 400 |
| Cable Blocking Components | None |
| Cable Entry Drop Port Style | Round |
| Cable Entry Main Port Style | Oval |
| Cable Ports Quantity, total | 1 oval port (2 Cables) + 2 round ports |
| Cable Sealing Type | Heat shrink |
| Closure Sealing Type | Dome-to-base clamp with O-ring |
| Closure Style | Single-ended |
| Color | Black |
| Flash Test Valve | Pre-installed |
| Ground Feed-through | None |
| Mounting | Pole | Strand | Wall |
| Length | 540 mm | 21.26 in |
| Diameter | 150 mm | 5.906 in |
| Diameter, with clamp | 180 mm | 7.087 in |
| Main Cable Diameter, maximum | 25 mm | 0.984 in |
| Click on image to enlarge. | Close Modal |
| Environmental Space | Below ground | Buried |
| Qualification Standards | IEC 61300, 6 m waterhead |
| Water Resistance | Flash test valve at 5 psi (40 kPa) |
| Packaging quantity | 1 |
| Packaging Type | Box | Carton |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
