Brand: CommScope
|
SKU:
401197

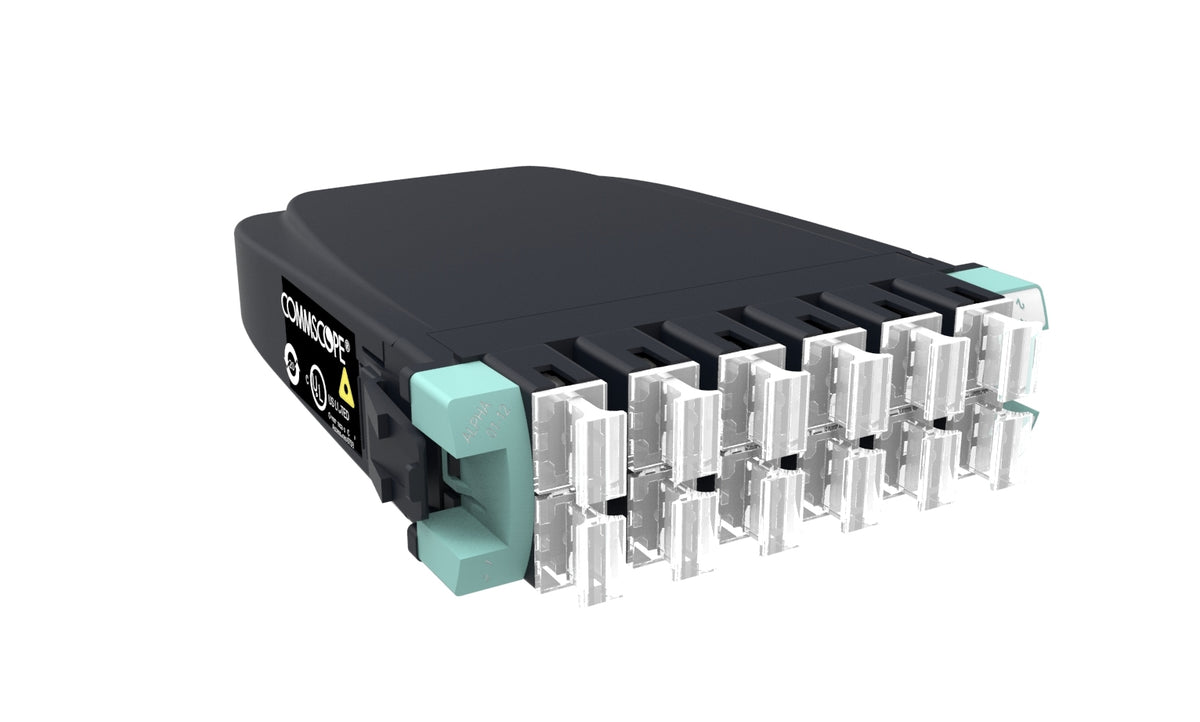

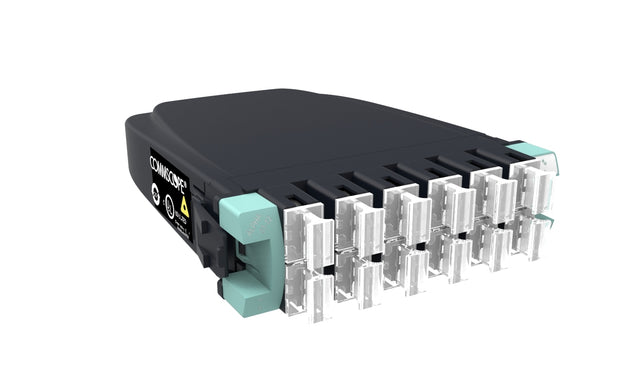

Commscope 360DM-12SC-LS | G2 LL Multimode OM4 MPO 12 distribution module, 12 SC to 1x12f MPO pinned, dust plugs
Regular price
$571.12
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 360DM-12SC-LS | G2 LL Multimode OM4 MPO 12 distribution m...
Regular price
$571.12
Unit price
Description
Description
Commscope 360DM-12SC-LS | G2 LL Multimode OM4 MPO 12 distribution module, 12 SC to 1x12f MPO pinned, dust plugs
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber module |
| Product Series | G2 |
General Specifications
| Color, front | Aqua |
|---|---|
| Color, rear | Gray |
| Interface, front | SC |
| Interface Feature, front | Standard |
| Interface, rear | MPO Pinned |
| Interface Feature, rear | Key up/up |
| Polarity | Method B |
| Shuttered | No |
| Total Fibers, quantity | 12 |
Dimensions
| Height | 26 mm / 1.024 in |
|---|---|
| Width | 95 mm / 3.740 in |
| Depth | 117.7 mm / 4.634 in |
Optical Specifications
| Fiber Mode | Multimode |
|---|---|
| Fiber Type | OM4 |
| Insertion Loss, maximum | 0.93 dB |
Environmental Specifications
| Qualification Standards | IEC 61753-1 / TIA-568.3-D |
|---|---|
| Safety Standard | CE / CSA / UL |
Packaging and Weights
| Packaging quantity | 1 |
|---|---|
| Weight, net | 0.113 kg / 0.249 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- High speed migration SYSTIMAX InstaPATCH 360 and SYSTIMAX Ultra-Low-Loss configuration guideline
- Revit BIM Models
- 760109967 Drawing - 2D DWG
- 760109967 Drawing - PDF
- 860 557 313 - LC/SC and MPO Module Port Cleaning Instructions
- TECP-96-194 Cleaning Fiber Connectors and Adapters
- Statement of Compliance RoHS/REACH
- 760109967 Product specifications
