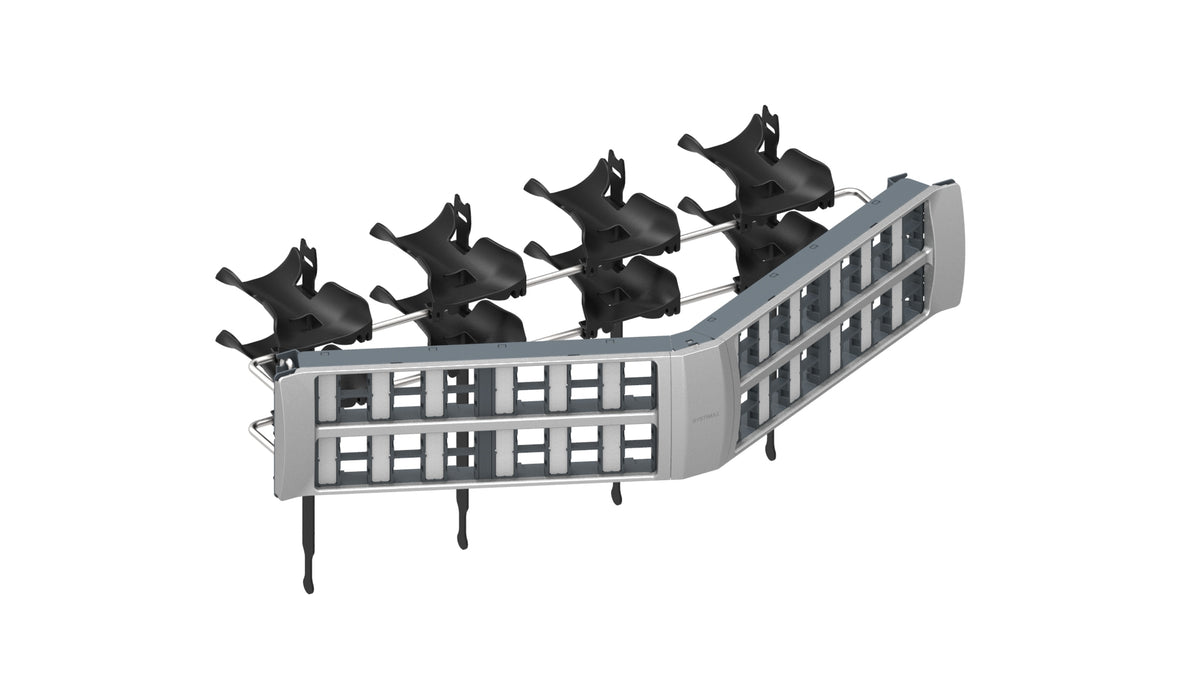

Commscope 360EANGMOD2U48 | SYSTIMAX 360 Evolve 48-port angled panel
Regular price
$231.11
Unit price
Brand: CommScope
|
SKU:
565870
Regular price
$231.11
Unit price
Description
Description
Commscope 360EANGMOD2U48 | SYSTIMAX 360 Evolve 48-port angled panel
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | SYSTIMAX |
| Product Type | RJ45 patch panel |
| Product Brand | SYSTIMAX 360 |
General Specifications
| ANSI/TIA Category | 5e / 6 / 6A |
|---|---|
| Cable Type | Unshielded |
| Color | Cool gray |
| Modules, quantity | 48 |
| Panel Style | Angled |
| Rack Type | EIA 19 in |
| Rack Units | 2 |
| Total Ports, quantity | 48 |
| Wiring | T568A / T568B |
Dimensions
| Height | 88.9 mm / 3.5 in |
|---|---|
| Label Height | 10.922 mm / 0.43 in |
| Width | 482.6 mm / 19 in |
| Depth | 142.24 mm / 5.6 in |
| Depth, with cable management | 271.78 mm / 10.7 in |
| Label Length | 33.782 mm / 1.33 in |
| Compatible Diameter Over Dielectric, maximum | 1.168 mm / 0.046 in |
| Compatible Diameter Over Dielectric, minimum | 0.762 mm / 0.03 in |
Electrical Specifications
| Current Rating at Temperature | 1.5 A/20 °C / 1.5 A/68 °F |
|---|---|
| Dielectric Withstand Voltage, RMS, conductive surface | 1,500 Vac/60 Hz |
| Dielectric Withstand Voltage, RMS, contact-to-contact | 1,000 Vac/60 Hz |
| Insulation Resistance, minimum | 500 mOhm |
Material Specifications
| Material Type | High-impact, flame retardant, thermoplastic / Powder-coated steel |
|---|
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | UL / cUL |
Packaging and Weights
| Packaging quantity | 1 |
|---|---|
| Weight, net | 1.089 kg / 2.4 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
