Brand: CommScope
|
SKU:
553702

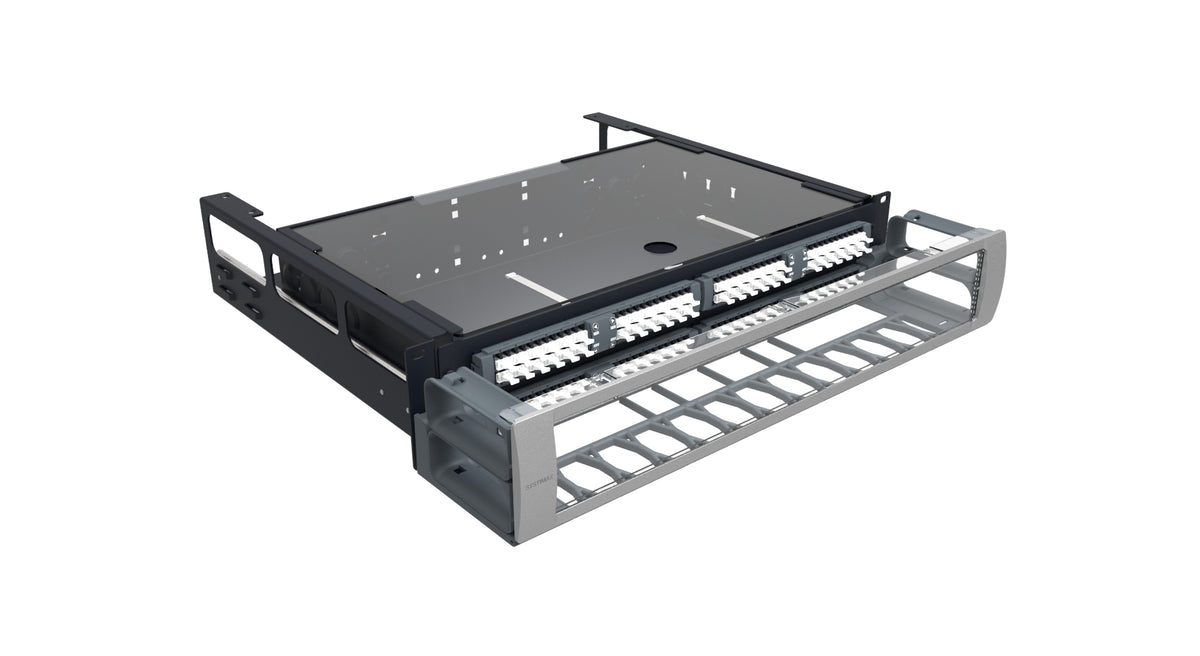

Commscope 360G2-IP-2U-192F-LC-DP-SD | SYSTIMAX 360 iPatch G2 2U 192F-LC Distribution Panel, Sliding Panel
Regular price
$2,374.68
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 360G2-IP-2U-192F-LC-DP-SD | SYSTIMAX 360 iPatch G2 2U 192...
Regular price
$2,374.68
Unit price
Brand: CommScope
|
SKU:
553702
Regular price
$2,374.68
Unit price
Description
Description
Commscope 360G2-IP-2U-192F-LC-DP-SD | SYSTIMAX 360 iPatch G2 2U 192F-LC Distribution Panel, Sliding Panel
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber splice panel |
| Product Brand | LazrSPEED / SYSTIMAX 360 / iPatch |
General Specifications
| Color | Black |
|---|---|
| Intelligence Type | iPatch enabled |
| Interface, front | LC |
| Rack Units | 2 |
| Shelf Movement | Sliding |
| Total Ports, quantity | 96 |
Dimensions
| Height | 88.1 mm / 3.469 in |
|---|---|
| Width | 482.6 mm / 19 in |
| Depth | 478.79 mm / 18.85 in |
Material Specifications
| Material Type | Acrylonitrile butadiene styrene (ABS) / Polycarbonate (PC) |
|---|
Optical Specifications
| Fiber Mode | Multimode / Singlemode |
|---|
Environmental Specifications
| Operating Temperature | -5 °C to +50 °C (+23 °F to +122 °F) |
|---|---|
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | Austel / CE / CSA / UL |
Packaging and Weights
| Packaging quantity | 1 |
|---|---|
| Weight, net | 5.897 kg / 13 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant/Exempted |
| CHINA-ROHS | Above maximum concentration value |
Documents and Downloads
Documents and Downloads
- Revit BIM Models
- 760188375 Drawing - 2D DWG
- 760188375 Drawing - PDF
- 860 568 435 - imVision Controller Programming of iPatch 96F-LC and 32-MPO Shelves and Panels Instructions
- TECP-96-194 Cleaning Fiber Connectors and Adapters
- Statement of Compliance RoHS/REACH
- 760188375 Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
