Brand: CommScope
|
SKU:
390414

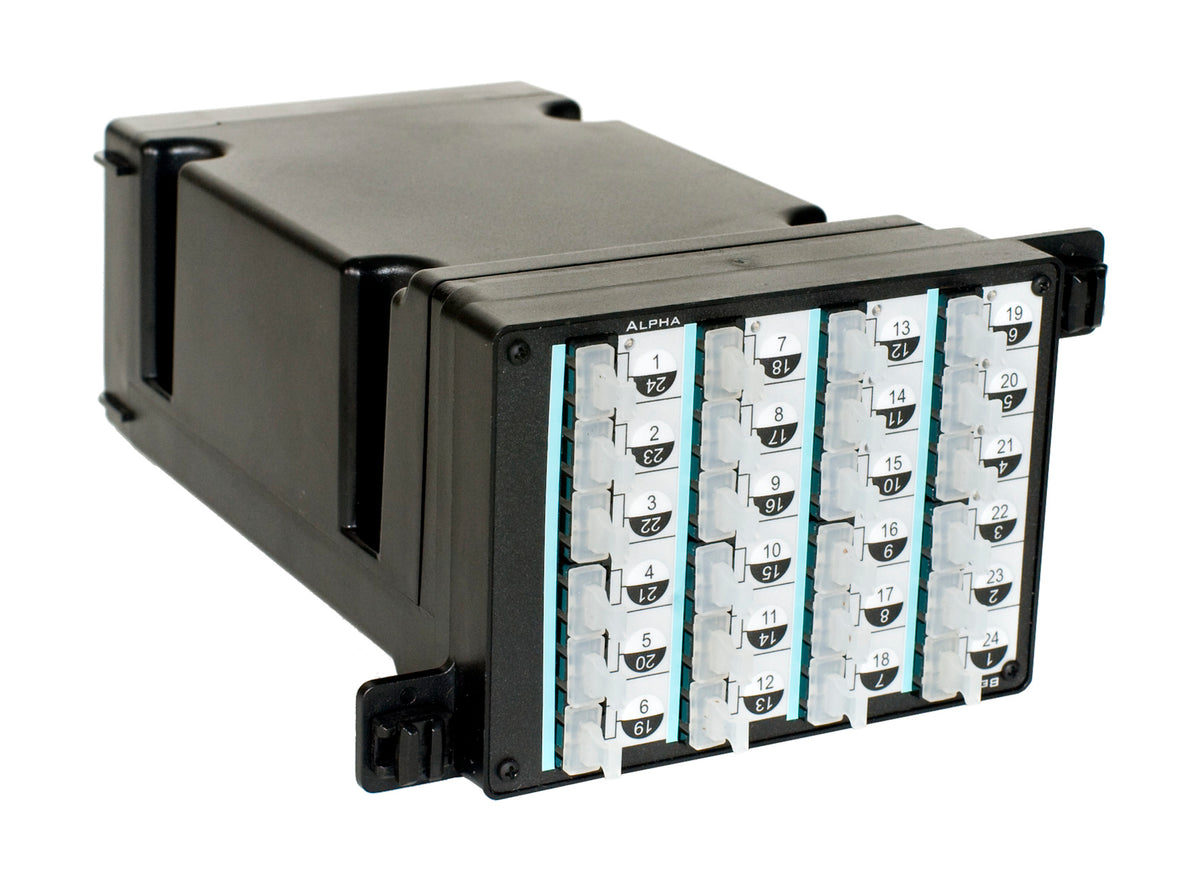

Commscope 360IPHDMODLCLS3 | SYSTIMAX 360 iPatch G2 Multimode OM4 High Density Module, 3 pack
Regular price
$6,310.66
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 360IPHDMODLCLS3 | SYSTIMAX 360 iPatch G2 Multimode OM4 Hi...
Regular price
$6,310.66
Unit price
Brand: CommScope
|
SKU:
390414
Regular price
$6,310.66
Unit price
Description
Description
Commscope 360IPHDMODLCLS3 | SYSTIMAX 360 iPatch G2 Multimode OM4 High Density Module, 3 pack
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber module |
| Product Brand | SYSTIMAX 360 / iPatch |
General Specifications
| Adapters, quantity, rear | 12 |
|---|---|
| Color, front | Aqua |
| Color, housing | Black |
| Color, rear | Black |
| Intelligence Type | iPatch enabled |
| Interface, front | LC |
| Interface Feature, front | Standard |
| Interface, rear | MPO |
| Interface Feature, rear | Reduced footprint |
| Total Ports, quantity, front | 144 |
Dimensions
| Height | 82.55 mm / 3.25 in |
|---|---|
| Width | 152.4 mm / 6 in |
| Depth | 215.9 mm / 8.5 in |
Material Specifications
| Material Type | Acrylonitrile butadiene styrene (ABS) / Polycarbonate (PC) |
|---|
Optical Specifications
| Fiber Type | OM4, LazrSPEED 550 |
|---|---|
| Insertion Loss Change, mating | 0.3 dB |
| Insertion Loss Change, temperature | 0.3 dB |
| Insertion Loss, maximum | 0.47 dB |
Environmental Specifications
| Operating Temperature | -5 °C to +50 °C (+23 °F to +122 °F) |
|---|---|
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | ACMA / CE / UL / cUL |
Packaging and Weights
| Packaging quantity | 3 |
|---|---|
| Weight, net | 1.13 kg / 2.491 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
