Commscope 360IPHDMODLCTS | SYSTIMAX 360 iPatch Singlemode G2 High D...
Regular price
$2,701.60
Unit price
Brand: CommScope
|
SKU:
390415
Regular price
$2,701.60
Unit price
Description
Description

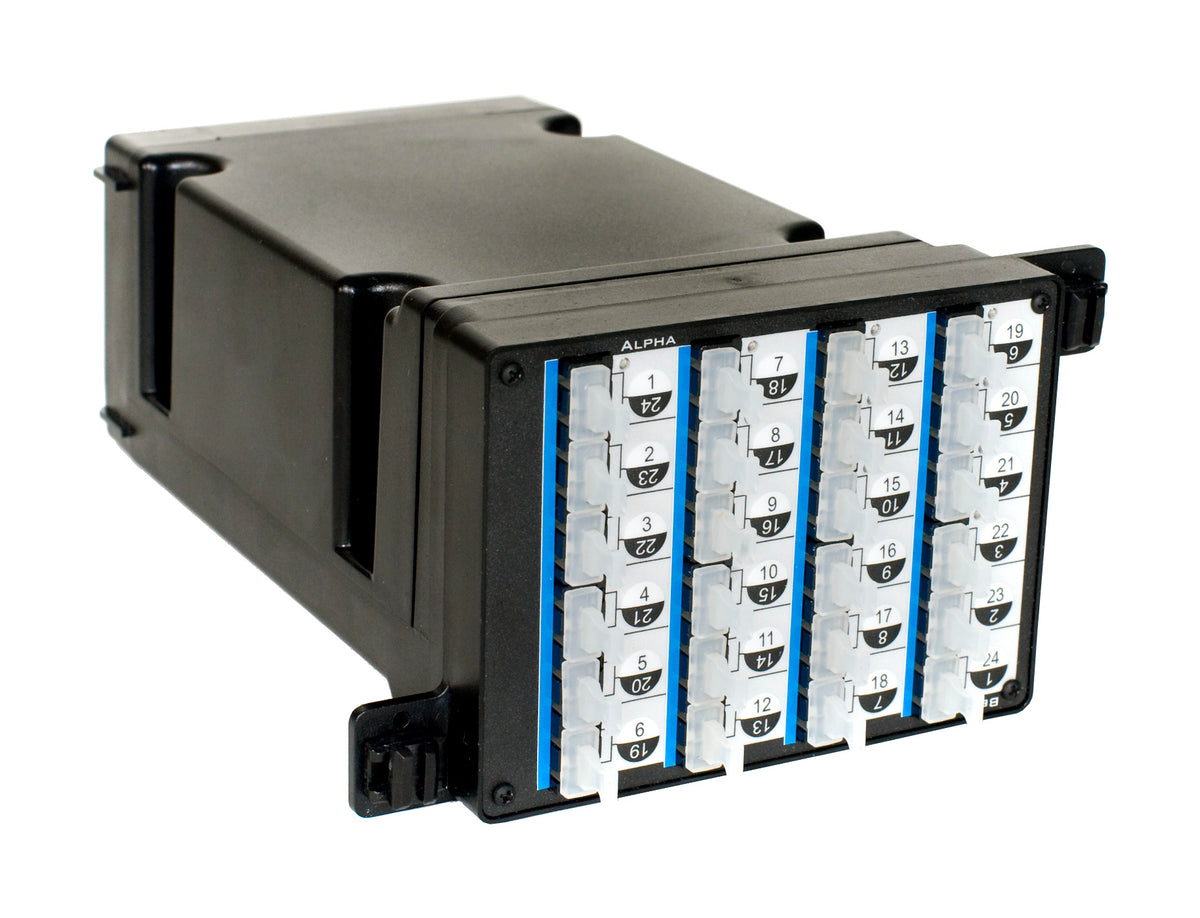

Commscope 360IPHDMODLCTS | SYSTIMAX 360 iPatch Singlemode G2 High Density Module
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber module |
| Product Brand | SYSTIMAX 360 / iPatch |
General Specifications
| Adapters, quantity, rear | 4 |
|---|---|
| Color, front | Blue |
| Color, housing | Black |
| Intelligence Type | iPatch enabled |
| Interface, front | LC |
| Interface Feature, front | Standard |
| Interface, rear | MPO |
| Interface Feature, rear | Reduced footprint |
| Total Ports, quantity, front | 48 |
Dimensions
| Height | 82.55 mm / 3.25 in |
|---|---|
| Width | 152.4 mm / 6 in |
| Depth | 215.9 mm / 8.5 in |
Material Specifications
| Material Type | Acrylonitrile butadiene styrene (ABS) / Polycarbonate (PC) |
|---|
Optical Specifications
| Fiber Type | G.652.D and G.657.A1 , TeraSPEED / OS2 |
|---|---|
| Insertion Loss Change, mating | 0.3 dB |
| Insertion Loss Change, temperature | 0.3 dB |
| Insertion Loss, maximum | 1.05 dB |
Environmental Specifications
| Operating Temperature | -5 °C to +50 °C (+23 °F to +122 °F) |
|---|---|
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | ACMA / CE / CSA / UL |
Packaging and Weights
| Packaging quantity | 1 |
|---|---|
| Weight, net | 1.13 kg / 2.491 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
