Brand: CommScope
|
SKU:
643802

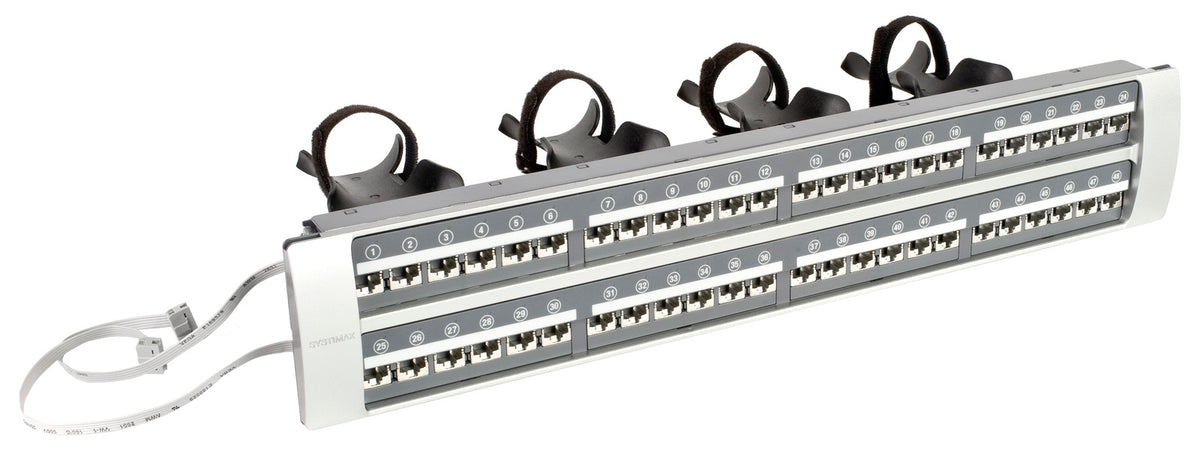

Commscope 360IPMEHD6B2U48 | SYSTIMAX 360 iPatch Evolve High Density F/UTP Modular Panel, 48 port
Regular price
$1,570.98
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 360IPMEHD6B2U48 | SYSTIMAX 360 iPatch Evolve High Density...
Regular price
$1,570.98
Unit price
Brand: CommScope
|
SKU:
643802
Regular price
$1,570.98
Unit price
Description
Description
Commscope 360IPMEHD6B2U48 | SYSTIMAX 360 iPatch Evolve High Density F/UTP Modular Panel, 48 port
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | SYSTIMAX |
| Product Type | RJ45 patch panel |
| Product Brand | SYSTIMAX 360 / iPatch |
General Specifications
| ANSI/TIA Category | 6 / 6A |
|---|---|
| Cable Type | Shielded |
| Color | Cool gray |
| Intelligence Type | iPatch enabled |
| Panel Style | Straight |
| Rack Units | 1 |
| Total Ports, quantity | 48 |
| Wiring | T568A / T568B |
Dimensions
| Height | 44.45 mm / 1.75 in |
|---|---|
| Width | 482.6 mm / 19 in |
| Depth | 38.1 mm / 1.5 in |
| Compatible Diameter Over Dielectric, maximum | 1.168 mm / 0.046 in |
| Compatible Diameter Over Dielectric, minimum | 0.762 mm / 0.03 in |
Electrical Specifications
| Current Rating at Temperature | 1.5 A/20 °C / 1.5 A/68 °F |
|---|---|
| Dielectric Withstand Voltage, RMS, conductive surface | 1,500 Vac/60 Hz |
| Dielectric Withstand Voltage, RMS, contact-to-contact | 1,000 Vac/60 Hz |
| Insulation Resistance, minimum | 500 mOhm |
Material Specifications
| Material Type | Acrylonitrile butadiene styrene (ABS) / Polycarbonate |
|---|
Environmental Specifications
| Operating Temperature | -5 °C to +50 °C (+23 °F to +122 °F) |
|---|---|
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | ACMA / CE / CSA / UL |
Packaging and Weights
| Included | Cable management bar / Four #12-24 dog point mounting screws / Instruction sheet / Modular jacks (48) / Panel / Two #12 washers / Two #12-24 screws |
|---|---|
| Packaging quantity | 1 |
| Weight, net | 0.726 kg / 1.6 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
Documents and Downloads
Documents and Downloads
- Revit BIM Models
- 760152389 Drawing - 2D DWG
- 760152389 Drawing - PDF
- 860 516 491 - iPatch Upgrade Module Instructions for SYSTIMAX 360 Panels and the InstaPATCH QUATTRO Panel
- 860 536 390 - SYSTIMAX 360 iPatch Panels Installation Instructions
- Statement of Compliance RoHS/REACH
- 760152389 Product specifications
