Brand: CommScope
|
SKU:
643811

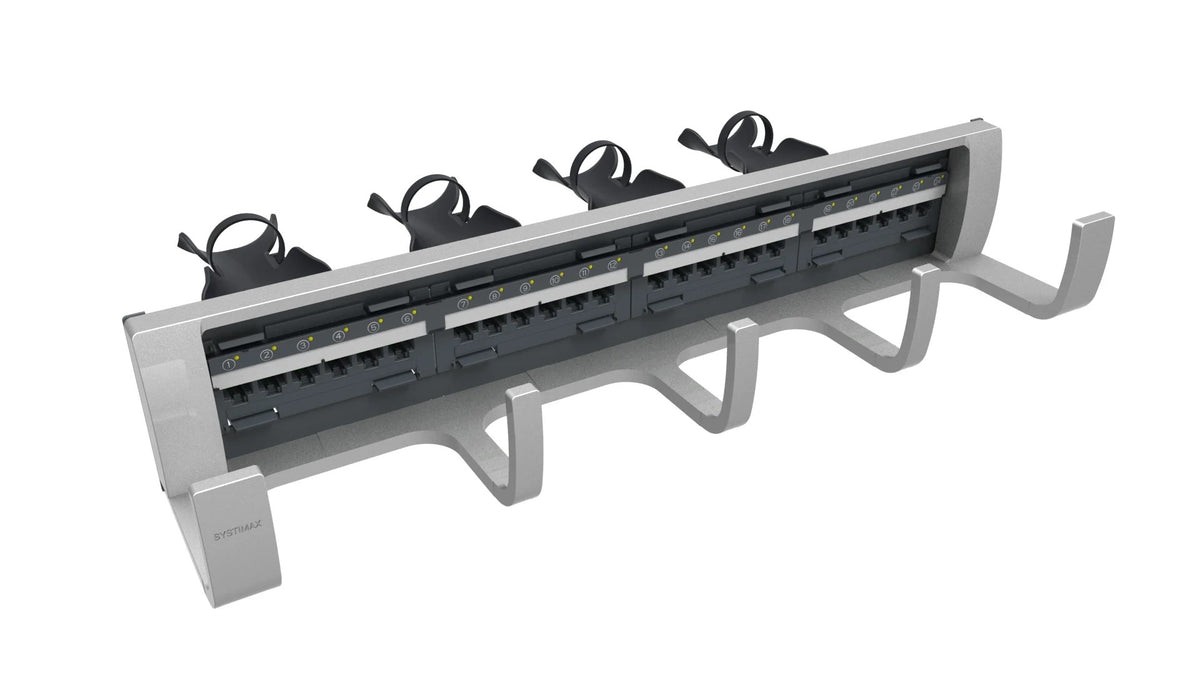

Commscope 360IPPMAXGS624 | SYSTIMAX 360 iPatch PATCHMAX GS6 U/UTP Patch Panel, 24 port
Regular price
$694.96
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 360IPPMAXGS624 | SYSTIMAX 360 iPatch PATCHMAX GS6 U/UTP P...
Regular price
$694.96
Unit price
Brand: CommScope
|
SKU:
643811
Regular price
$694.96
Unit price
Description
Description
Commscope 360IPPMAXGS624 | SYSTIMAX 360 iPatch PATCHMAX GS6 U/UTP Patch Panel, 24 port
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | SYSTIMAX |
| Product Type | RJ45 patch panel |
| Product Brand | SYSTIMAX 360 / iPatch |
General Specifications
| ANSI/TIA Category | 6A |
|---|---|
| Cable Type | Unshielded |
| Color | Silver |
| Intelligence Type | iPatch enabled |
| Rack Units | 2 |
| Total Ports, quantity | 24 |
| Wiring | T568A / T568B |
Dimensions
| Height | 88.9 mm / 3.5 in |
|---|---|
| Width | 482.6 mm / 19 in |
| Depth | 206.5 mm / 8.13 in |
| Compatible Diameter Over Dielectric, maximum | 1.168 mm / 0.046 in |
Electrical Specifications
| Current Rating at Temperature | 1.5 A @ 20 °C / 1.5 A @ 68 °F |
|---|---|
| Dielectric Withstand Voltage, RMS, conductive surface | 1,500 Vac @ 60 Hz |
| Insulation Resistance, minimum | 500 mOhm |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
|---|
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Safety Standard | UL / cUL |
Packaging and Weights
| Packaging quantity | 1 |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant/Exempted |
| CHINA-ROHS | Above maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
