Brand: CommScope
|
SKU:
10257088

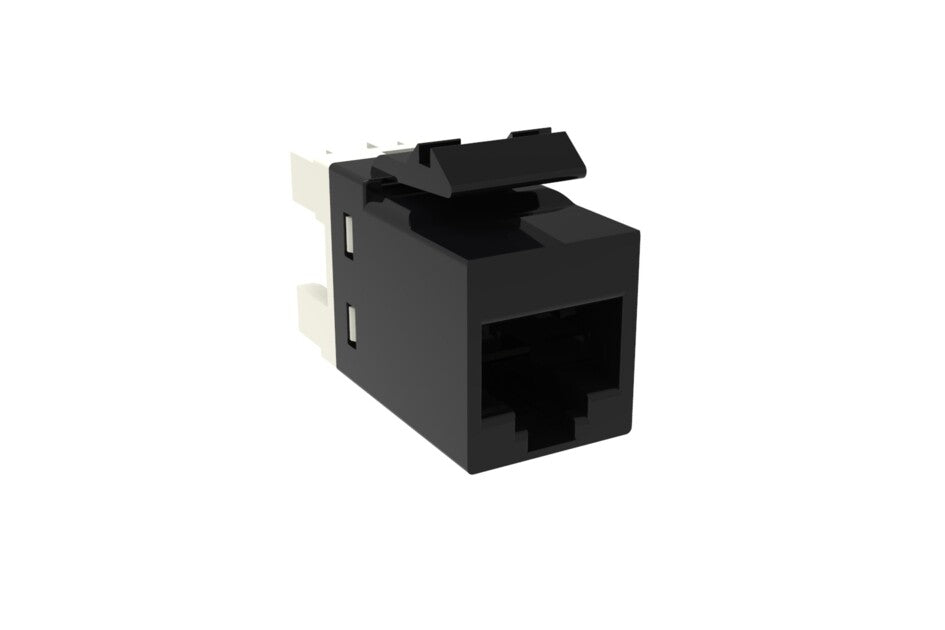

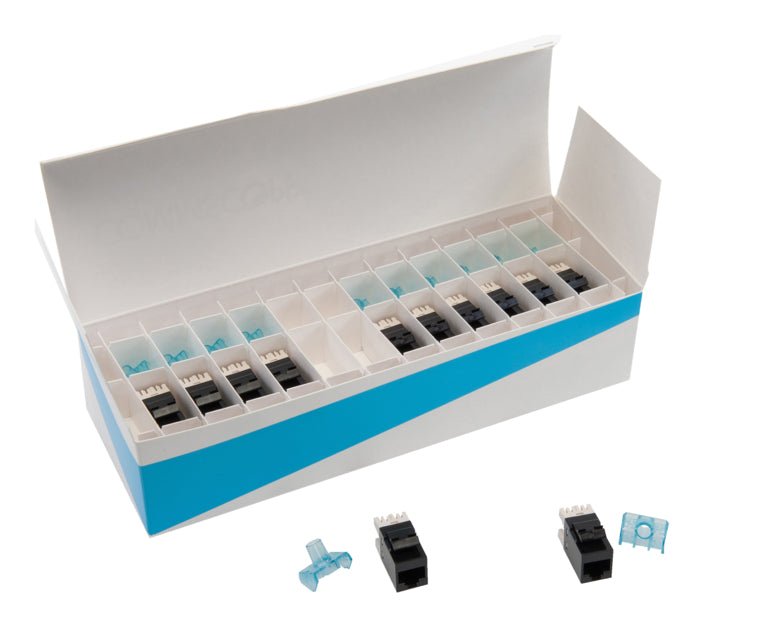

CommScope 4-1375191-2 | SL-Series Modular Jack, RJ45, Cat5e Unshielded, Black (24 ea/pkg)
Regular price
$216.31
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 4-1375191-2 | SL-Series Modular Jack, RJ45, Cat5e Unshiel...
Regular price
$216.31
Unit price
Description
Description
CommScope 4-1375191-2 | SL-Series Modular Jack, RJ45, Cat5e Unshielded, Black (24 ea/pkg)
Specifications
Specifications
CommScope - 4-1375191-2 - Specifications
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope® |
| Product Type | Modular jack |
| Product Series | SL Series |
| ANSI/TIA Category | 5e |
| Cable Type | Unshielded |
| Color | Black |
| Conductor Type | Solid | Stranded |
| Integrated Dust Cover Type | None |
| Mounting | SL Series faceplates and panels |
| Mounting Note | Color matches with SL-style Black Faceplates and Surface Mount Boxes |
| Outlet Type | Standard |
| Termination Punchdowns, minimum | 200 times |
| Termination Tool | SL Termination tool |
| Termination Type | IDC |
| Panel Cutout, recommended | 14.78 x 20.07 mm (0.58 x 0.79 in) |
| Panel Thickness, recommended | 1.6 mm | 0.063 in |
| Height | 16.26 mm | 0.64 in |
| Width | 14.48 mm | 0.57 in |
| Depth | 30.48 mm | 1.2 in |
| Compatible Insulated Conductor Diameter, maximum | 1.45 mm | 0.057 in |
| Contact Base Material | Beryllium copper |
| Contact Plating Material | Gold |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | CSA | cUL |

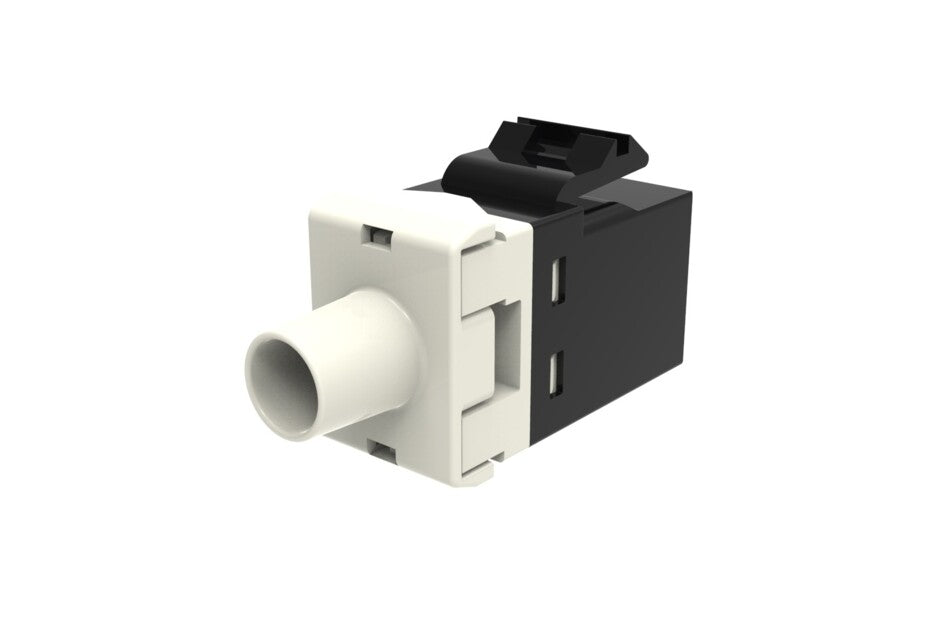

| Included | Strain relief cap |
| Packaging Material | Eco-friendly, single-use plastics-free |
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
