Brand: CommScope
|
SKU:
464317

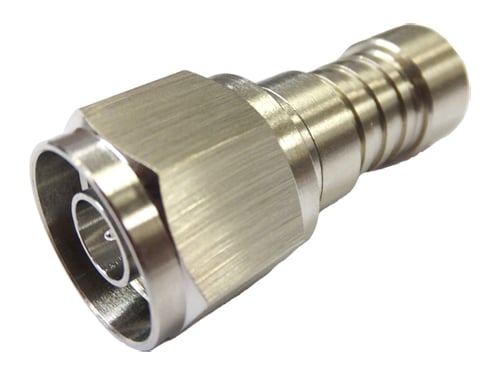

CommScope 400APNM-CS8 | Type N Male for CNT-400 braided cable. Not available in North America.
Regular price
$13.23
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 400APNM-CS8 | Type N Male for CNT-400 braided cable. Not ...
Regular price
$13.23
Unit price
Description
Description
CommScope 400APNM-CS8 | Type N Male for CNT-400 braided cable. Not available in North America.
Specifications
Specifications
CommScope - 400APNM-CS8 - Product Categories
- Connectors
- Wireless Transmission Connectors
- Braided Connectors
CommScope - 400APNM-CS8 - Product Classification
| Regional Availability | China | EMEA | Europe | Latin America |
|---|---|
| Product Type | Braided cable connector |
| Product Brand | CNT| ConQuest| QR |
| Ordering Note | CommScopestandard product in Asia Pacific | CommScopestandard product in Europe, the Middle East, and Africa |
CommScope - 400APNM-CS8 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | Type N Male for CNT-400 braided cable. Not available in North America. |
| Model Number | 400APNM-CS8 |
| Body Style | Straight |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | N Male |
| Outer Contact Attachment Method | Crimp |
| Outer Contact Plating | Trimetal |
CommScope - 400APNM-CS8 - Additional Information
| Dimensions | - |
|---|---|
| Width | 20.25 mm | 0.797 in |
| Length | 43 mm | 1.693 in |
| Diameter | 20.25 mm | 0.797 in |
| Nominal Size | 0.405 in |
| Electrical Specifications | - |
| Insertion Loss, typical | 0.05 dB |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2500 V |
| Inner Contact Resistance, maximum | 1 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 0.25 mOhm |
| Peak Power, maximum | 10 kW |
| RF Operating Voltage, maximum (vrms) | 707 V |
| Return Loss/VSWR | - |
| Frequency Band | VSWR |
| Return Loss (dB) | 0–3000 MHz |
| Mechanical Specifications | - |
| Connector Retention Tensile Force | 330 N | 74.187 lbf |
| Connector Retention Torque | 0.56 N-m | 4.956 in lb |
| Coupling Nut Proof Torque | 1.7 N-m | 15.046 in lb |
| Coupling Nut Proof Torque Method | IEC 61169-16:9.3.6 |
| Coupling Nut Retention Force | 450 N | 101.164 lbf |
| Coupling Nut Retention Force Method | IEC 61169-16:9.3.11 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
