Commscope 400BPTM-C-CR | TNC Male for CNT-400 braided cable
Regular price
$13.72
Unit price
Brand: CommScope
|
SKU:
1034811
Regular price
$13.72
Unit price
Description
Description

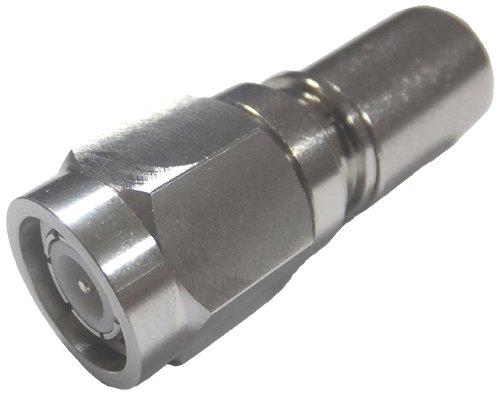

Commscope 400BPTM-C-CR | TNC Male for CNT-400 braided cable
Specifications
Specifications
Outline Drawing
| Click on image to enlarge. |
|---|
Product Classification
| Product Type | Braided cable connector |
|---|---|
| Product Brand | CNT / ConQuest |
General Specifications
| Body Style | Straight |
|---|---|
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | TNC Male |
| Outer Contact Attachment Method | Crimp |
| Outer Contact Plating | Trimetal |
Dimensions
| Length | 40.74 mm / 1.604 in |
|---|---|
| Diameter | 16 mm / 0.63 in |
| Nominal Size | 0.405 in |
Electrical Specifications
| Insertion Loss, typical | 0.05 dB |
|---|---|
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 1500 V |
| Inner Contact Resistance, maximum | 1.5 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 0.4 mOhm |
| Peak Power, maximum | 5 kW |
| RF Operating Voltage, maximum (vrms) | 500 V |
Mechanical Specifications
| Connector Retention Tensile Force | 330 N / 74.187 lbf |
|---|---|
| Connector Retention Torque | 0.56 N-m / 4.956 in lb |
| Coupling Nut Proof Torque | 1.7 N-m / 15.046 in lb |
| Coupling Nut Proof Torque Method | IEC 61169-17:9.3.6 |
| Coupling Nut Retention Force | 445 N / 100.04 lbf |
| Coupling Nut Retention Force Method | IEC 61169-17:9.3.11 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-17:17 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
|---|---|
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C / 68 °F |
| Average Power, Ambient Temperature | 40 °C / 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C / 212 °F |
| Climatic Sequence Test Method | IEC 60068-1 |
| Corrosion Test Method | IEC 60068-2-11 |
| Damp Heat Steady State Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
| Water Jetting Test Mating | Mated |
| Water Jetting Test Method | IEC 60529:2001, IP65 |
Packaging and Weights
| Weight, net | 21.52 g / 0.047 lb |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
