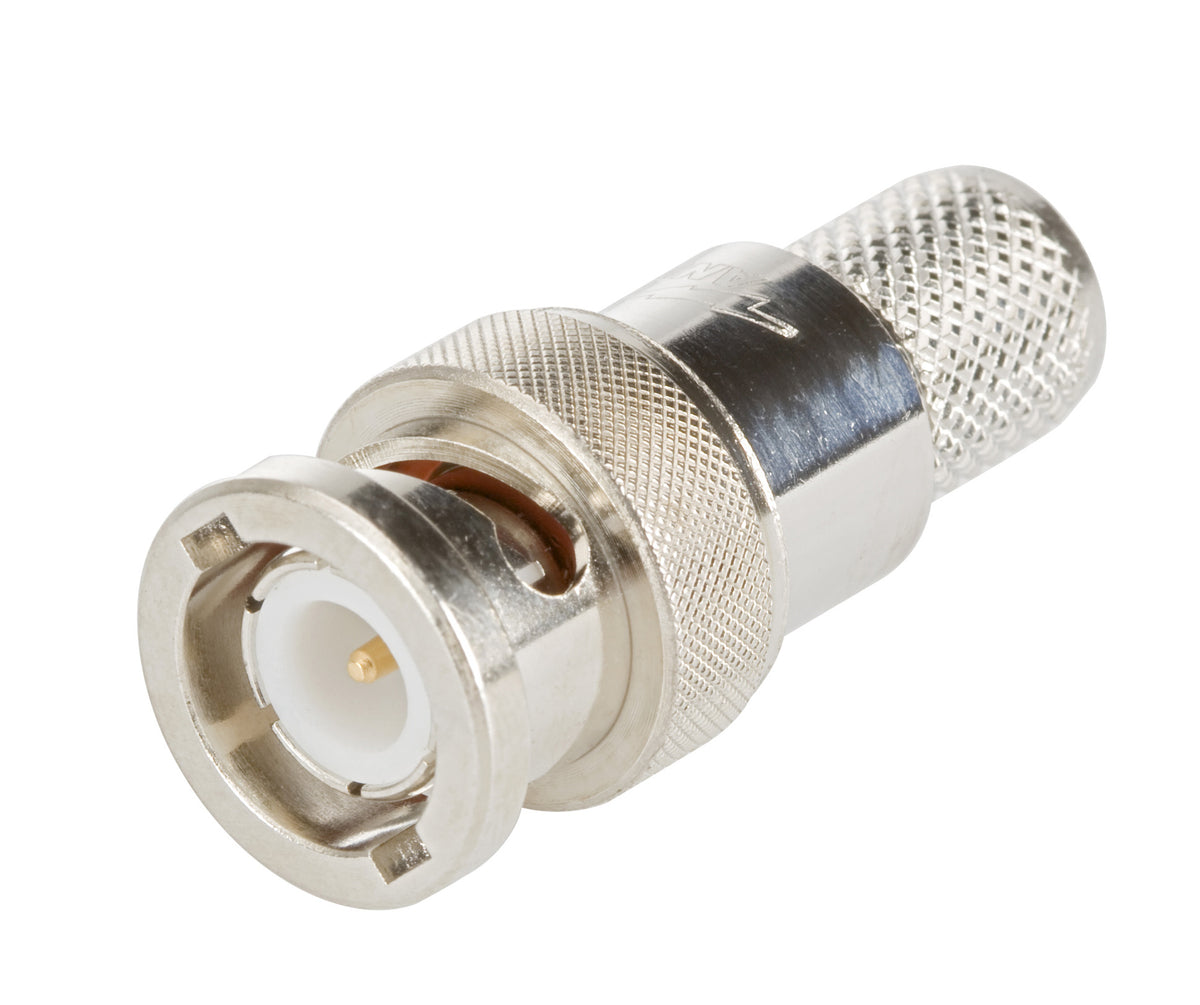

Commscope 400PBM-CR | BNC Male for CNT-400 braided cable
Regular price
$17.16
Unit price
Brand: CommScope
|
SKU:
400PBM-CR
Regular price
$17.16
Unit price
Description
Description
BNC Male for CNT-400 braided cable
Specifications
Specifications
Product Classification
| Product Type | Braided cable connector |
|---|---|
| Product Brand | CNT | ConQuest |
General Specifications
| Body Style | Straight |
|---|---|
| Inner Contact Attachment Method | Solder |
| Inner Contact Plating | Gold |
| Interface | BNC Male |
| Outer Contact Attachment Method | Crimp |
| Outer Contact Plating | Trimetal |
Dimensions
| Width | 14 mm | 0.551 in |
|---|---|
| Length | 37.76 mm | 1.487 in |
| Diameter | 14 mm | 0.551 in |
Electrical Specifications
| Insertion Loss, typical | 0.05 dB |
|---|---|
| Average Power at Frequency | 580.0 W @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 1500 V |
| Inner Contact Resistance, maximum | 2.5 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 1 mOhm |
| Peak Power, maximum | 5 kW |
| RF Operating Voltage, maximum (vrms) | 500 V |
Mechanical Specifications
| Connector Retention Tensile Force | 330 N | 74.187 lbf |
|---|---|
| Connector Retention Torque | 0.56 N-m | 4.956 in lb | 0.75 N-m | 6.638 in lb |
| Coupling Nut Proof Torque | 0.25 N-m | 2.213 in lb |
| Coupling Nut Proof Torque Method | IEC 61169-8:9.3.6 |
| Coupling Nut Retention Force | 445 N | 100.04 lbf |
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
|---|---|
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
