Brand: CommScope
|
SKU:
10013825

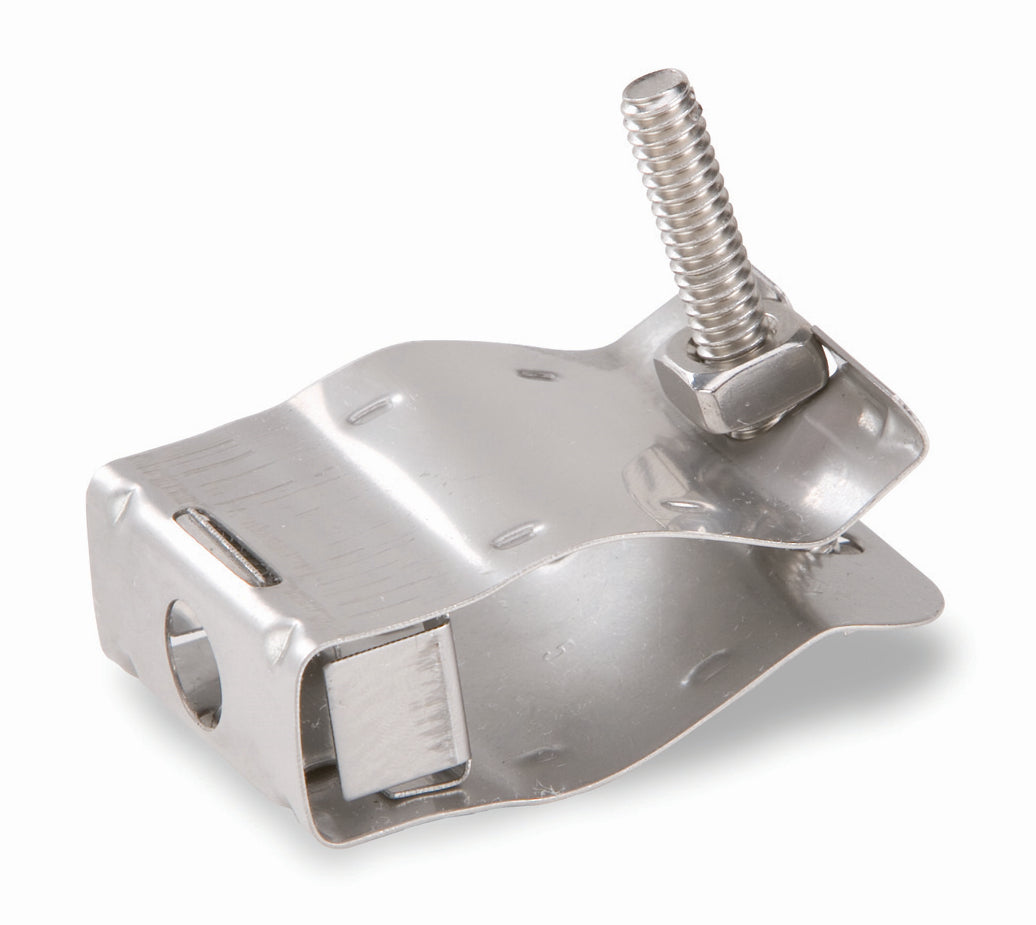

Commscope 42396A-4 | Butterfly Hanger for 2-1/4 in coaxial cable and elliptical waveguide 37
Regular price
$64.67
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 42396A-4 | Butterfly Hanger for 2-1/4 in coaxial cable an...
Regular price
$64.67
Unit price
Description
Description
Commscope 42396A-4 | Butterfly Hanger for 2-1/4 in coaxial cable and elliptical waveguide 37
Specifications
Specifications
Product Classification
| Product Type | Hanger kit |
|---|---|
| Ordering Note | CommScope non-standard product |
General Specifications
| Cables per Hanger | 1 |
|---|---|
| Color | Silver |
| Hanger Type | Standard butterfly hanger |
| Mounting | 3/8 in (M10) drilled cable ladder |
Dimensions
| Height | 82.042 mm / 3.23 in |
|---|---|
| Width | 38.1 mm / 1.5 in |
| Length | 109.982 mm / 4.33 in |
| Compatible Diameter, maximum | 59.944 mm / 2.36 in |
| Compatible Diameter, minimum | 58.166 mm / 2.29 in |
| Nominal Size | 2-1/4 in |
Material Specifications
| Material Type | Stainless steel |
|---|
Mechanical Specifications
| Vibration Survival | ?4 hours at resonant frequency |
|---|
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
|---|---|
| Corrosion Resistance, minimum with no degredation | ?500 hours in salt spray chamber |
| Environmental Strength Capability | Double cable weight |
Packaging and Weights
| Height, packed | 33 cm / 12.992 in |
|---|---|
| Width, packed | 22 cm / 8.661 in |
| Length, packed | 6 cm / 2.362 in |
| Packaging quantity | 10 |
| Weight, gross | 0.74 kg / 1.631 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- Hanger Kits for HELIAX Elliptical Waveguide and Coaxial Cable
- Statement of Compliance RoHS/REACH
- Accessories for HELIAX Products
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- 7719798 HELIAX Coaxial and Elliptical Waveguide Hanger Spacing Guidelines
- Installation Accessories Part Number Cross Reference – MTS to Andrew
- CommScope Limited Product Warranty
