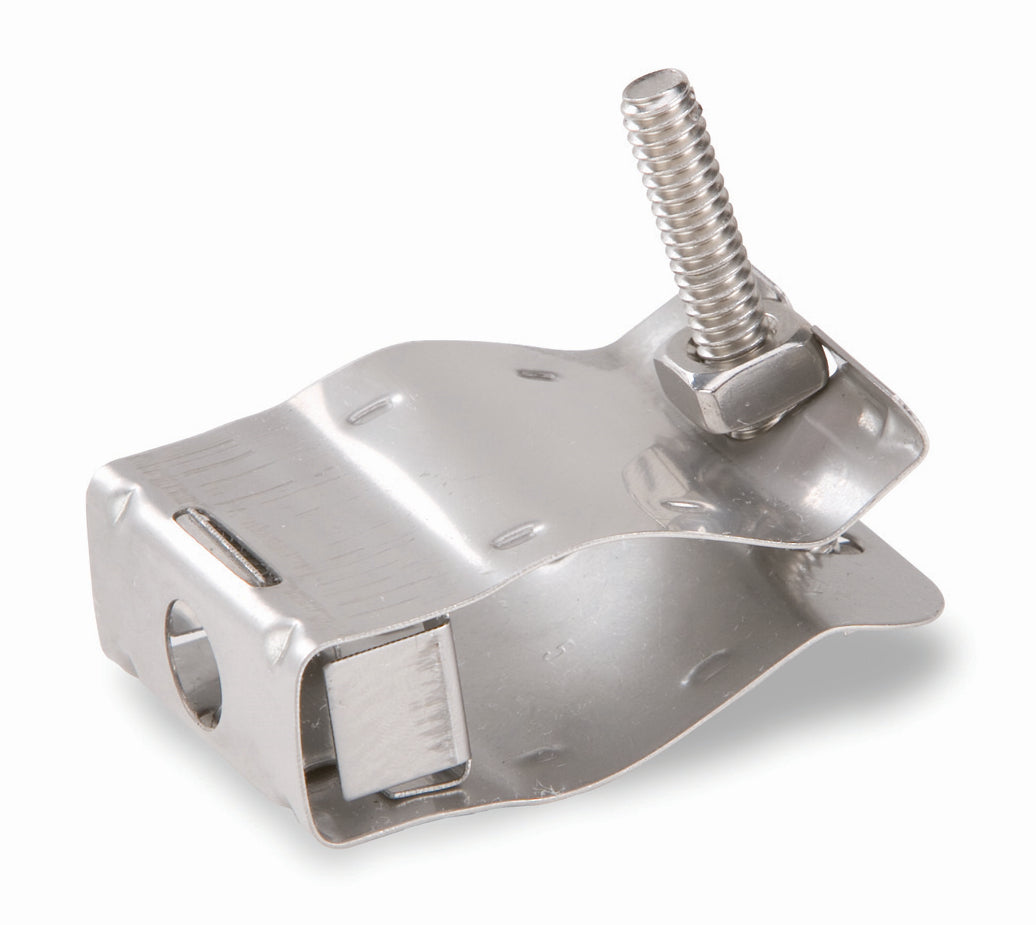

Commscope 42396A-8 | Butterfly Hanger for elliptical waveguide 52
Regular price
$64.67
Unit price
Brand: CommScope
|
SKU:
464376
Regular price
$64.67
Unit price
Description
Description
Commscope 42396A-8 | Butterfly Hanger for elliptical waveguide 52
Specifications
Specifications
Product Classification
| Product Type | Hanger kit |
|---|---|
| Ordering Note | CommScope non-standard product |
General Specifications
| Cable Type | Elliptical waveguide |
|---|---|
| Cables per Hanger | 1 |
| Color | Silver |
| Hanger Type | Standard butterfly hanger |
| Mounting | 3/8 in (M10) drilled cable ladder |
Dimensions
| Height | 41.91 mm / 1.65 in |
|---|---|
| Width | 38.1 mm / 1.5 in |
| Length | 63.5 mm / 2.5 in |
| Compatible Diameter, maximum | 34.798 mm / 1.37 in |
| Compatible Diameter, minimum | 30.988 mm / 1.22 in |
| Waveguide Size | WR159 / WG13 / R58 |
Electrical Specifications
| Return Loss Effect | 0.1 dB |
|---|---|
| DTF Effect | 0.1 dB |
Material Specifications
| Material Type | Stainless steel |
|---|
Mechanical Specifications
| Vibration Survival | ?4 hours at resonant frequency |
|---|
Environmental Specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
|---|---|
| Corrosion Resistance, minimum with no degredation | ?500 hours in salt spray chamber |
| Environmental Strength Capability | Double cable weight |
Packaging and Weights
| Height, packed | 25.8 cm / 10.157 in |
|---|---|
| Width, packed | 11.6 cm / 4.567 in |
| Length, packed | 10 cm / 3.937 in |
| Packaging quantity | 10 |
| Weight, gross | 0.5 kg / 1.102 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
