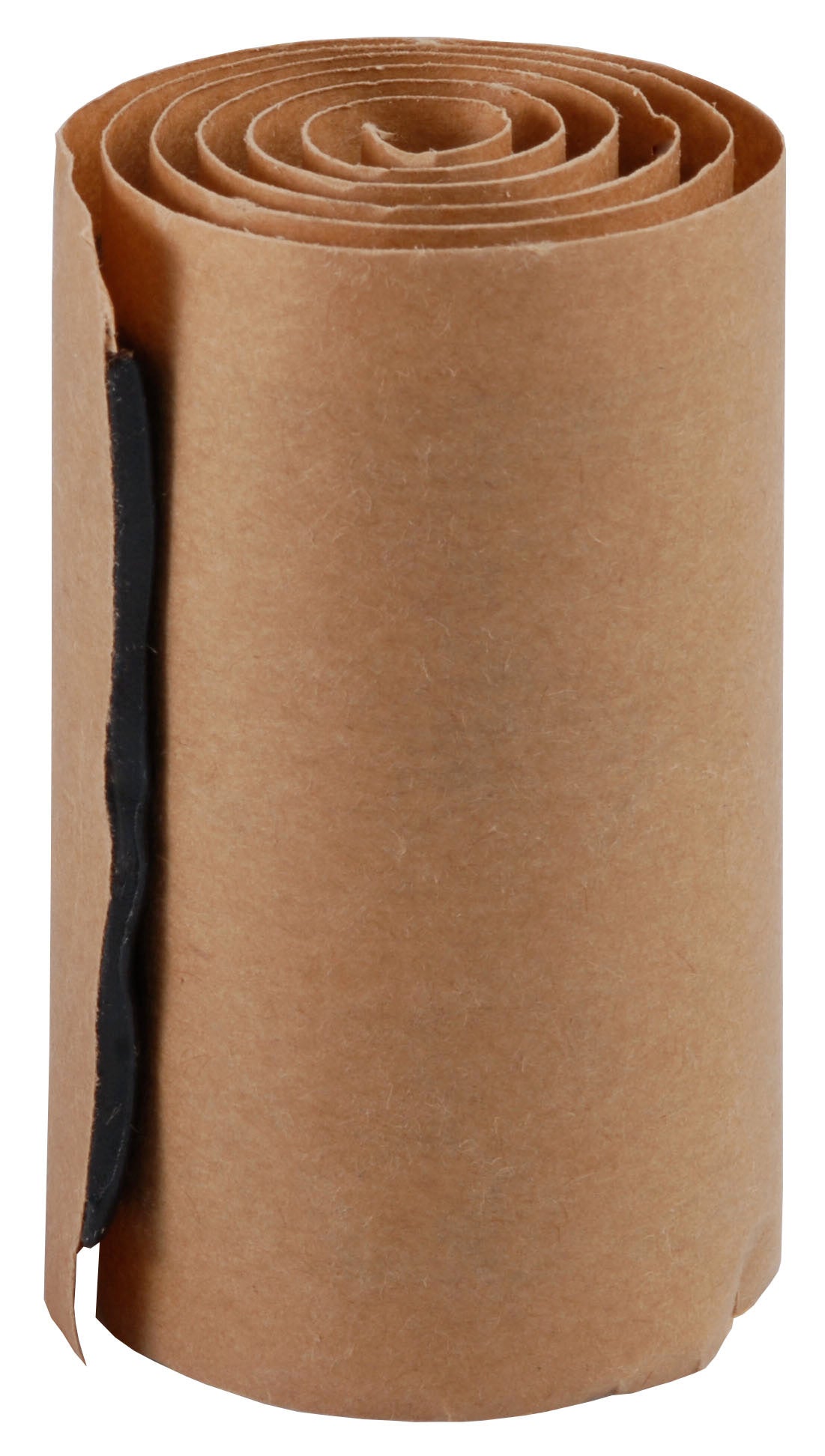

Commscope 42615-10 | Butyl Rubber Tape, 24 in
Regular price
$7.08
Unit price
Brand: CommScope
|
SKU:
464377
Regular price
$7.08
Unit price
Description
Description
Commscope 42615-10 | Butyl Rubber Tape, 24 in
Specifications
Specifications
Product Classification
| Product Type | Weatherproofing tape |
|---|---|
| Ordering Note | CommScope non-standard product |
General Specifications
| Application | Provides additional moisture seal for cable connections |
|---|---|
| Applications per Kit | One 1/2 in–2-1/4 in / One 1/2 in–7/8 in / One 1/2 in–7/8 in to device / Two 1/2 in–1/2 in |
| Color | Black |
Dimensions
| Width | 63.5 mm / 2.5 in |
|---|---|
| Length | 609.6 mm / 24 in |
| Nominal Size | 1-1/4 in / 1-5/8 in / 1/2 in / 1/4 in / 2-1/4 in / 3/8 in / 5/8 in / 7/8 in |
Material Specifications
| Material Type | Butyl rubber tape |
|---|
Environmental Specifications
| UV Resistance Test Method | Butyl test method in QUV weatherometer cycle of 8 hours UV at 150 °F then 4 hours of condensation at 104 °F |
|---|---|
| UV Resistance, minimum with no degradation | ?1000 hours |
| Weather Resistance Test Method | 04AS00-03.6.0 / MIL-STD-1344A, Method 1002 |
Packaging and Weights
| Height, packed | 63.5 mm / 2.5 in |
|---|---|
| Width, packed | 71.12 mm / 2.8 in |
| Length, packed | 25.4 mm / 1 in |
| Packaging quantity | 1 |
| Weight, gross | 0.17 kg / 0.375 lb |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
Documents and Downloads
Documents and Downloads
- HELIAX Coaxial Cable
- Weatherproofing Kit for Connectors and Antennas
- Statement of Compliance RoHS/REACH
- 42615-10 Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- Installation Accessories Part Number Cross Reference – MTS to Andrew
- Weatherproofing Kit for Connectors and Antennas
- CommScope Limited Product Warranty
