Brand: CommScope
|
SKU:
10238938

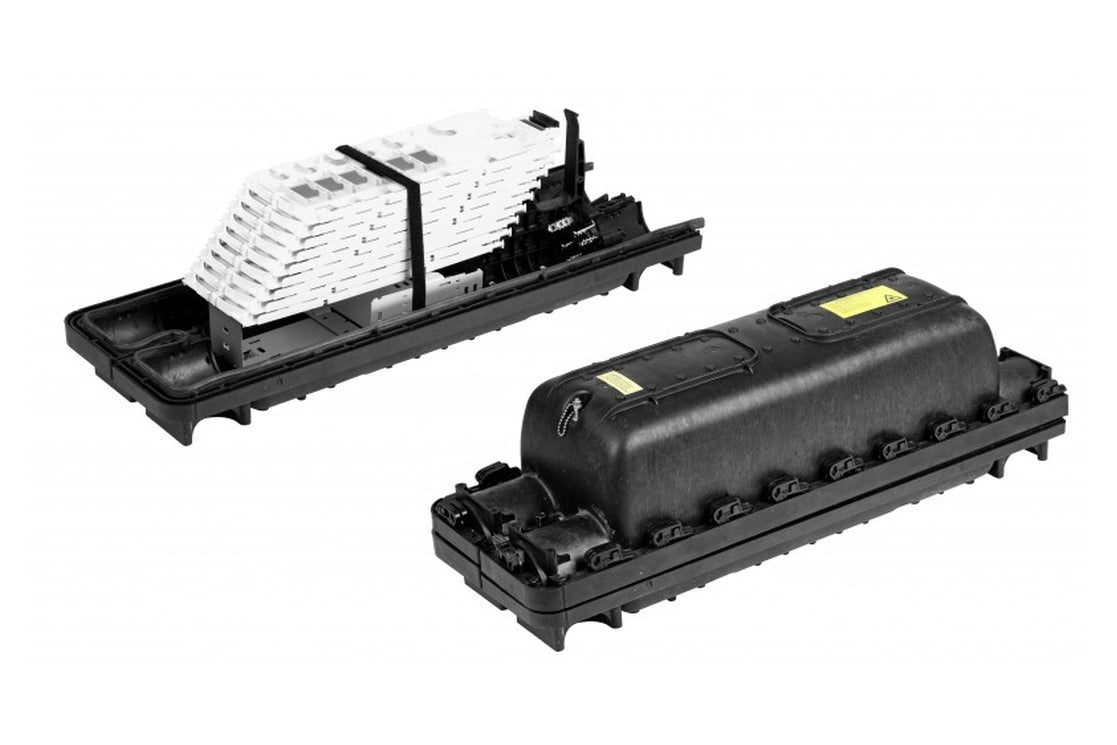

CommScope 491462-000 | FOSC 600 D Fiber Optic Splice Closure, Gel Cable sealing, butt type, no pre-installed tray
Regular price
$849.06
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 491462-000 | FOSC 600 D Fiber Optic Splice Closure, Gel C...
Regular price
$849.06
Unit price
Description
Description
CommScope 491462-000 | FOSC 600 D Fiber Optic Splice Closure, Gel Cable sealing, butt type, no pre-installed tray
Specifications
Specifications
CommScope - 491462-000 - Product Categories
- Cabinets, Panels, Enclosures & Power
- Closures & Terminals
- Fiber Splice Closures
CommScope - 491462-000 - Product Classification
| Regional Availability | Latin America | North America |
|---|---|
| Product Type | In-line, rectangular fiber closure | Single-ended, rectangular fiber closure |
| Product Brand | FOSC |
| Product Series | FOSC 600 |
CommScope - 491462-000 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | FOSC 600 D Fiber Optic Splice Closure, Gel Cable sealing, butt type, no pre-installed tray, two 4-port gel blocks, 2 ground feedthrough lugs, with test valve |
| Model Number | 491462-000 | FOSC600-D8B-NT-0-D2V |
| Cable Entry Drop Port Style | Gel block |
| Cable Entry Main Port Style | Gel block |
| Cable Ports Quantity, total | 4 multi-out ports (16 cables) |
| Cable Sealing Type | Compressed gel |
| Closure Sealing Type | Captured bolts | Over-centered latches with rubber gasket |
| Closure Style | In-line | Single-ended |
| Color | Black |
| Fiber Storage Basket Type | D6 standard size |
| Flash Test Valve | Pre-installed |
| Ground Feed-through | Included |
| Mounting | Pole | Strand | Wall |
| Network Area Type | Feeder | Trunk |
| Splice Tray Included, quantity | 0 |
| Splice Tray Type Included | No trays |
| Splicing Capacity, Mass Fusion, maximum | 1728 |
| Splicing Capacity, Single Fusion, maximum | 864 |
| Splicing Capacity, Single Splice, 12 fibers, maximum | 864 |
| Splicing Capacity, Single Splice, 6 fibers, maximum | 324 |
| Splicing Type, Supported | Mass fusion | Single fusion |
CommScope - 491462-000 - Additional Information
| Dimensions | - |
|---|---|
| Height | 254 mm | 10 in |
| Width | 274 mm | 10.787 in |
| Length | 828 mm | 32.598 in |
| Main Cable Diameter, maximum | 35 mm | 1.378 in |
| Material Specifications | - |
| Material Type | Rugged polymer |
| Environmental Specifications | - |
| Environmental Space | Below ground | Buried |
| Qualification Standards | Telcordia GR-771-CORE, 20 ft waterhead |
| Water Resistance | Flash test valve at 5 psi (40 kPa) |
| Packaging and Weights | - |
| Packaging quantity | 1 |
| Packaging Type | Box | Carton |
| Weight, net | 11.79 kg | 25.992 lb |
