Brand: CommScope
|
SKU:
CS5700

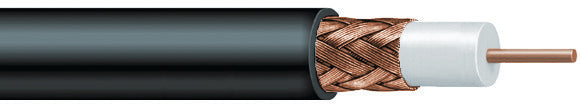

Commscope 5700 BKRL RG6 95 1000 | RG 6 Type 95% Braid Non-Plenum Video Security Coaxial Cable, black jacket, 1000 ft, (305 m) reel
Regular price
$1.65
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 5700 BKRL RG6 95 1000 | RG 6 Type 95% Braid Non-Plenum Vi...
Regular price
$1.65
Unit price
Description
Description
Commscope 5700 BKRL RG6 95 1000 | RG 6 Type 95% Braid Non-Plenum Video Security Coaxial Cable, black jacket, 1000 ft, (305 m) reel
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Coaxial video cable |
General Specifications
| Product Number | 5700 |
|---|---|
| Cable Type | Series 6 |
| Center Conductor Type | Solid |
| Construction Type | Non-armored |
| Jacket Color | Black |
| Supported Application | Security/CCTV |
Dimensions
| Cable Length | 304.8 m / 1000 ft |
|---|---|
| Diameter Over Center Conductor, specific | 0.0403 in per 1 strand |
| Diameter Over Dielectric | 4.572 mm / 0.18 in |
| Diameter Over Jacket Tolerance | ±0.008 in |
| Diameter Over Jacket, nominal | 6.909 mm / 0.272 in |
| Diameter Over Shield (Tape) | 5.232 mm / 0.206 in |
| Jacket Thickness | 0.889 mm / 0.035 in |
| Jacket Thickness, minimum spot | 0.762 mm / 0.03 in |
| Center Conductor Gauge | 18 AWG |
| Shield (Braid) Gauge | 36 AWG |
Electrical Specifications
| Capacitance | 53.15 pF/m / 16.2 pF/ft |
|---|---|
| Characteristic Impedance | 75 ohm |
| Characteristic Impedance Tolerance | ±3 ohm |
| Conductor dc Resistance | 21.325 ohms/km / 6.5 ohms/kft |
| Dielectric Strength, conductor to shield | 2500 Vdc |
| Jacket Spark Test Voltage | 4000 Vac |
| Nominal Velocity of Propagation (NVP) | 0.82 |
| Shield dc Resistance | 10.499 ohms/km / 3.2 ohms/kft |
| Structural Return Loss | 20 dB |
| 10–300 MHz | Structural Return Loss Test Method |
Material Specifications
| Center Conductor Material | Bare copper |
|---|---|
| Dielectric Material | Foam PE |
| Jacket Material | PVC |
| Shield (Braid) Coverage | 0.92 |
| Shield (Braid) Material | Bare copper |
Mechanical Specifications
| Minimum Bend Radius, loaded, times | 20 times |
|---|---|
| Minimum Bend Radius, unloaded, times | 10 times |
Environmental Specifications
| Environmental Space | Non-plenum |
|---|---|
| Temperature Rating, UL | 60 °C / 140 °F |
| Flame Test Method | CM |
| Safety Standard | ETL / cETL |
Packaging and Weights
| Cable weight | 53.574 kg/km / 36 lb/kft |
|---|---|
| Packaging Type | Reel |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
