Brand: CommScope
|
SKU:
882042

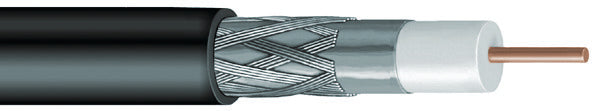

Commscope 5729 BKRB RG6 60 1000 | RG 6 Type 60% Braid Non-Plenum Coaxial Cable, black jacket, 1000 ft (305 m) box
Regular price
$215.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 5729 BKRB RG6 60 1000 | RG 6 Type 60% Braid Non-Plenum Co...
Regular price
$215.00
Unit price
Description
Description
Commscope 5729 BKRB RG6 60 1000 | RG 6 Type 60% Braid Non-Plenum Coaxial Cable, black jacket, 1000 ft (305 m) box
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Braided coaxial cable |
General Specifications
| Product Number | 5729 |
|---|---|
| Cable Type | Series 6 |
| Center Conductor Type | Solid |
| Construction Type | Non-armored |
| Jacket Color | Black |
Dimensions
| Cable Length | 304.8 m / 1000 ft |
|---|---|
| Diameter Over Center Conductor, specific | 0.0403 in per 1 strand |
| Diameter Over Dielectric | 4.572 mm / 0.18 in |
| Diameter Over Dielectric Tolerance | ±0.004 in |
| Diameter Over Jacket Tolerance | ±0.008 in |
| Diameter Over Jacket, nominal | 6.909 mm / 0.272 in |
| Diameter Over Shield (Braid) | 5.385 mm / 0.212 in |
| Jacket Thickness | 0.762 mm / 0.03 in |
| Center Conductor Gauge | 18 AWG |
| Shield (Braid) Gauge | 34 AWG |
Electrical Specifications
| Capacitance | 52.493 pF/m / 16 pF/ft |
|---|---|
| Characteristic Impedance | 75 ohm |
| Characteristic Impedance Tolerance | ±3 ohm |
| Conductor dc Resistance | 21.325 ohms/km / 6.5 ohms/kft |
| Dielectric Strength, conductor to shield | 2500 Vdc |
| Jacket Spark Test Voltage | 2500 Vac |
| Nominal Velocity of Propagation (NVP) | 0.82 |
| Shield dc Resistance | 31.824 ohms/km / 9.7 ohms/kft |
| Structural Return Loss | 15 dB |
| 1000–3000 MHz / 20 dB | 5–1000 MHz |
| Structural Return Loss Test Method | 100% Swept Tested |
Material Specifications
| Center Conductor Material | Bare copper |
|---|---|
| Dielectric Material | Foam PE |
| Jacket Material | PVC |
| Shield (Braid) Coverage | 0.6 |
| Shield (Braid) Material | Aluminum |
| Shield (Tape) Material | Aluminum/Poly, bonded |
Mechanical Specifications
| Minimum Bend Radius, loaded, times | 20 times |
|---|---|
| Minimum Bend Radius, unloaded, times | 10 times |
Environmental Specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
|---|---|
| Environmental Space | Non-plenum |
| Temperature Rating, UL | 75 °C / 167 °F |
| Flame Test Method | CM |
| Safety Standard | ETL / cETL |
Packaging and Weights
| Cable weight | 41.669 kg/km / 28 lb/kft |
|---|---|
| Packaging Type | Reel in box |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
