Brand: CommScope
|
SKU:
CS5740

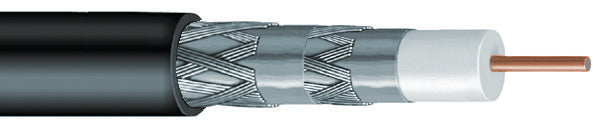

Commscope 5740 BKRL RG6 QD 1000 | RG 6 Type Quad Shield Non-Plenum Satellite Coaxial Cable, black jacket, 1000 ft (305 m) reel
Regular price
$1.65
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 5740 BKRL RG6 QD 1000 | RG 6 Type Quad Shield Non-Plenum ...
Regular price
$1.65
Unit price
Description
Description
Commscope 5740 BKRL RG6 QD 1000 | RG 6 Type Quad Shield Non-Plenum Satellite Coaxial Cable, black jacket, 1000 ft (305 m) reel
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Coaxial satellite cable |
General Specifications
| Product Number | 5740 |
|---|---|
| Cable Type | Series 6 |
| Center Conductor Type | Solid |
| Construction Type | Non-armored |
| Jacket Color | Black |
Dimensions
| Cable Length | 304.8 m / 1000 ft |
|---|---|
| Diameter Over Center Conductor, specific | 0.0403 in per 1 strand |
| Diameter Over Dielectric | 4.572 mm / 0.18 in |
| Diameter Over Dielectric Tolerance | ±0.004 in |
| Diameter Over Inner Shield (Braid) | 5.385 mm / 0.212 in |
| Diameter Over Jacket Tolerance | ±0.008 in |
| Diameter Over Jacket, nominal | 7.62 mm / 0.3 in |
| Diameter Over Outer Shield (Braid) | 5.893 mm / 0.232 in |
| Jacket Thickness | 0.864 mm / 0.034 in |
| Center Conductor Gauge | 18 AWG |
| Inner Shield (Braid) Gauge | 34 AWG |
| Outer Shield (Braid) Gauge | 34 AWG |
Electrical Specifications
| Capacitance | 52.493 pF/m / 16 pF/ft |
|---|---|
| Characteristic Impedance | 75 ohm |
| Characteristic Impedance Tolerance | ±3 ohm |
| Conductor dc Resistance | 93.832 ohms/km / 28.6 ohms/kft |
| Dielectric Strength, conductor to shield | 2500 Vdc |
| Jacket Spark Test Voltage | 2500 Vac |
| Nominal Velocity of Propagation (NVP) | 0.82 |
| Shield dc Resistance | 16.076 ohms/km / 4.9 ohms/kft |
| Structural Return Loss | 15 dB |
| 1000–3000 MHz / 20 dB | 5–1000 MHz |
| Structural Return Loss Test Method | 100% Swept Tested |
Material Specifications
| Center Conductor Material | Copper-clad steel wire |
|---|---|
| Dielectric Material | Foam PE |
| Jacket Material | PVC |
| Inner Shield (Braid) Coverage | 0.6 |
| Inner Shield (Braid) Material | Aluminum |
| Inner Shield (Tape) Material | Aluminum/Poly, bonded |
| Outer Shield (Braid) Coverage | 0.4 |
| Outer Shield (Braid) Material | Aluminum |
| Outer Shield (Tape) Material | Aluminum/Poly, non-bonded |
Mechanical Specifications
| Minimum Bend Radius, loaded, times | 20 times |
|---|---|
| Minimum Bend Radius, unloaded, times | 10 times |
Environmental Specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
|---|---|
| Environmental Space | Non-plenum |
| Temperature Rating, UL | 75 °C / 167 °F |
| Flame Test Method | CMG |
| Safety Standard | ETL / cETL |
Packaging and Weights
| Cable weight | 50.598 kg/km / 34 lb/kft |
|---|---|
| Packaging Type | Reel |
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|
