Brand: CommScope
|
SKU:
702753-EA

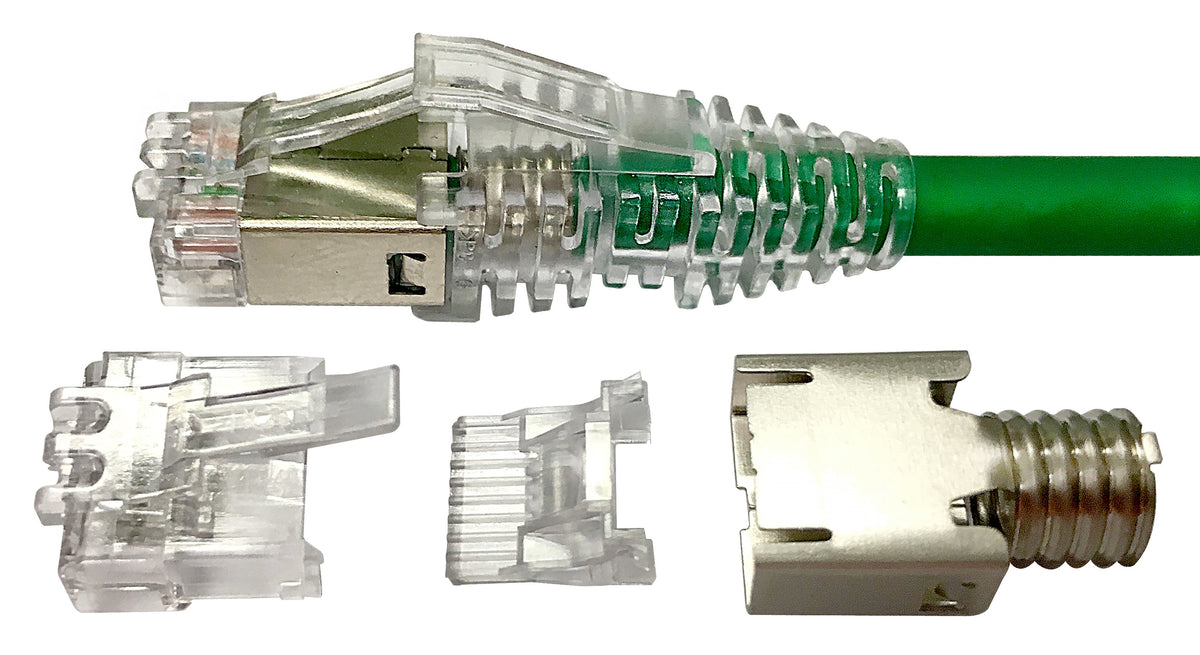

CommScope 6-2111984-3 | Modular Plug Kit, category 6A, shielded, 8-position, 5.7 – 7.0 mm max cable jack OD, 100/bag
Regular price
$1.47
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 6-2111984-3 | Modular Plug Kit, category 6A, shielded, 8-...
Regular price
$1.47
Unit price
Description
Description
CommScope 6-2111984-3 | Modular Plug Kit, category 6A, shielded, 8-position, 5.7 – 7.0 mm max cable jack OD, 100/bag
Specifications
Specifications
CommScope - 6-2111984-3 - Product Categories
- Connectors
- RJ45 Plugs & Accessories
- Category 6A Plugs
CommScope - 6-2111984-3 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Modular plug |
CommScope - 6-2111984-3 - General Specifications
| Brand Name | CommScope |
|---|---|
| Item Description | Modular Plug Kit, category 6A, shielded, 8-position, 5.7 – 7.0 mm max cable jack OD, 100/bag |
| Model Number | 6-2111984-3 | MP-6AS-C-1 |
| ANSI/TIA Category | 6A |
| Cable Type | Round, shielded |
| Conductor Type | Solid | Stranded |
| Interface | RJ45 |
| Positions/Loaded Contacts | 2024-08-08 00:00:00 |
| Termination Type | IDC |
CommScope - 6-2111984-3 - Additional Information
| Dimensions | - |
|---|---|
| Compatible Cable Diameter, maximum | 7 mm | 0.276 in |
| Compatible Cable Diameter, minimum | 5.7 mm | 0.224 in |
| Compatible Insulated Conductor Diameter, maximum | 1.09 mm | 0.043 in |
| Compatible Insulated Conductor Diameter, minimum | 0.89 mm | 0.035 in |
| Contact Plating Thickness | 1.27 µm |
| Compatible Conductor Gauge, solid | 26–23 AWG |
| Compatible Conductor Gauge, stranded | 26–23 AWG |
| Electrical Specifications | - |
| Insulation Resistance, minimum | 500 mOhm |
| Material Specifications | - |
| Contact Base Material | Phosphor Bronze |
| Contact Plating Material | Gold |
| Material Type | Glass filled polycarbonate |
| Plug Shield Base Material | Stainless steel |
| Plug Shield Plating Material | Nickel |
| Mechanical Specifications | - |
| Plug Insertion Life, minimum | 750 times |
