Brand: CommScope
|
SKU:
10013867

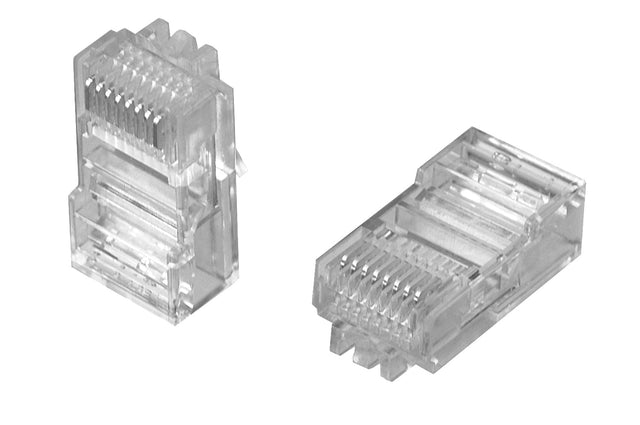

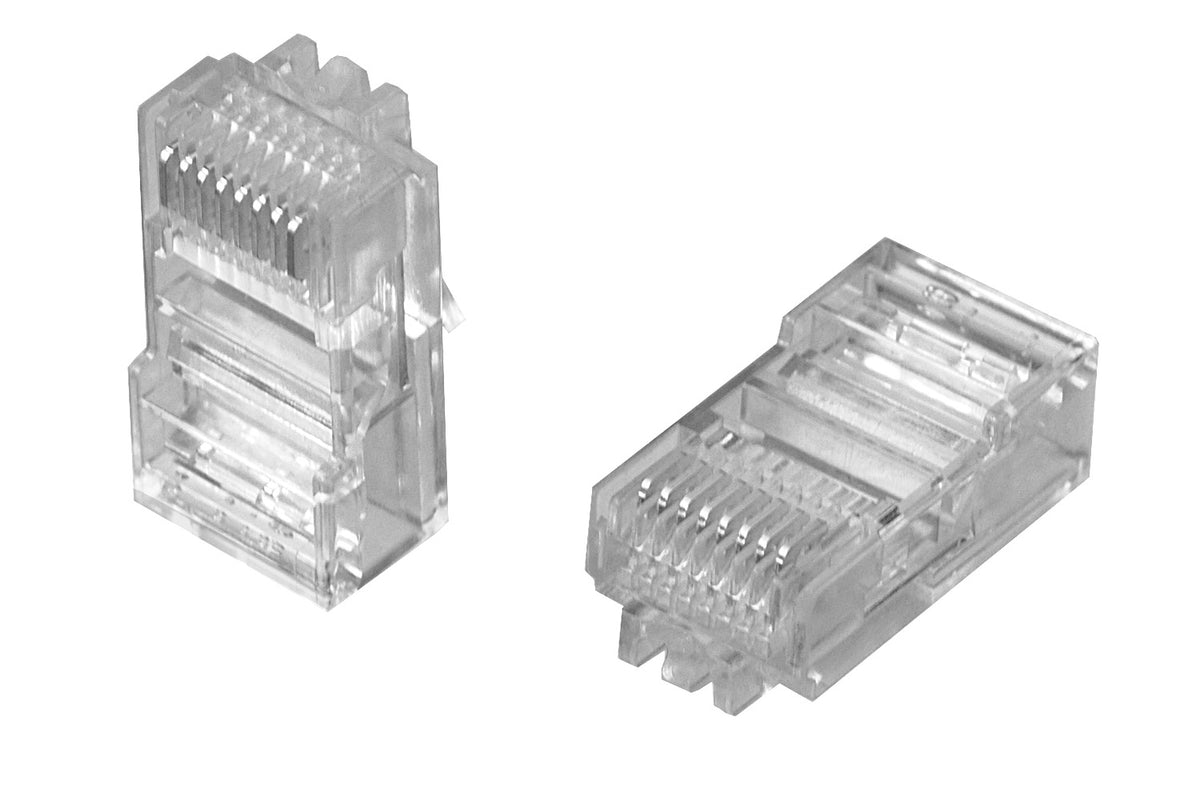

Commscope 6-557315-2 | Modular Plug Kit, 8P/8C, unshielded, round, 5.1 mm max cable jack OD, 8-position, 500/bag
Regular price
$196.02
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 6-557315-2 | Modular Plug Kit, 8P/8C, unshielded, round, ...
Regular price
$196.02
Unit price
Brand: CommScope
|
SKU:
10013867
Regular price
$196.02
Unit price
Description
Description
Commscope 6-557315-2 | Modular Plug Kit, 8P/8C, unshielded, round, 5.1 mm max cable jack OD, 8-position, 500/bag
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Modular plug |
General Specifications
| ANSI/TIA Category | 5 |
|---|---|
| Cable Type | Round, unshielded |
| Conductor Type | Solid / Stranded |
| Interface | RJ45 |
| Positions/Loaded Contacts | 2021-08-08 00:00:00 |
| Termination Type | IDC |
Dimensions
| Compatible Cable Diameter, maximum | 5.1 mm / 0.201 in |
|---|---|
| Compatible Insulated Conductor Diameter, maximum | 0.99 mm / 0.039 in |
| Compatible Insulated Conductor Diameter, minimum | 0.86 mm / 0.034 in |
| Contact Plating Thickness | 1.27 µm |
| Compatible Conductor Gauge, solid | 26–24 AWG |
| Compatible Conductor Gauge, stranded | 26–24 AWG |
Electrical Specifications
| Current Rating, maximum | 0.75 A |
|---|---|
| Insulation Resistance, minimum | 500 mOhm |
| Safety Voltage Rating | 150 Vac |
Material Specifications
| Contact Base Material | Phosphor bronze |
|---|---|
| Contact Plating Material | Gold |
| Material Type | Glass filled polycarbonate |
Mechanical Specifications
| Plug Insertion Life, minimum | 750 times |
|---|
Environmental Specifications
| Operating Temperature | -10 °C to +60 °C (+14 °F to +140 °F) |
|---|---|
| Relative Humidity | Up to 93%, non-condensing |
| Safety Standard | UL 1863 |
Packaging and Weights
| Packaging quantity | 500 |
|---|---|
| Packaging Type | Bag / Box / Carton |
Regulatory Compliance/Certifications
| ROHS | Compliant |
|---|---|
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- 114-6053 High-Performance Modular Plug Connectors
- 2843005 MOD PLUG MP-88 Shielded and Unshielded Series
- Customer View Model (pdf)
- 502-147003 MOD PLUG CONNECTORS for Stranded and Solid wires
- Statement of Compliance RoHS/REACH
- 6-557315-2 Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- 501-131013 Shielded and Unshielded Modular Plugs
