Brand: CommScope
|
SKU:
373COMOM3TBDLSZH12CA

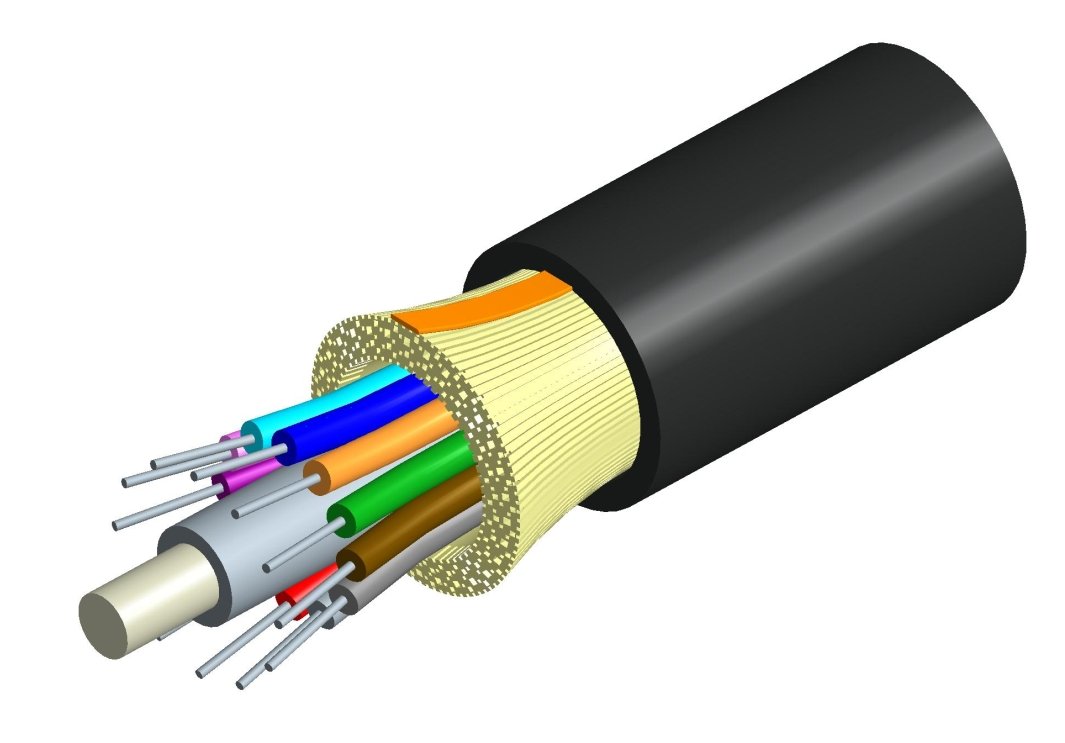

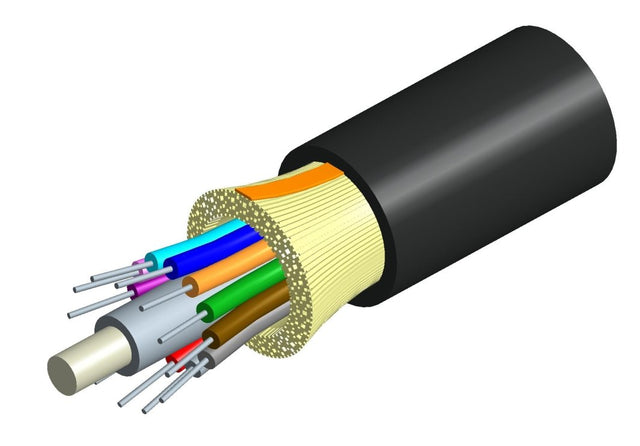

Commscope 700210982 | LazrSPEED Indoor/Outdoor Low Smoke Zero Halogen Riser Distribution Cable, 12 fiber single-unit
Regular price
$3.42
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Commscope 700210982 | LazrSPEED Indoor/Outdoor Low Smoke Zero Halog...
Regular price
$3.42
Unit price
Brand: CommScope
|
SKU:
373COMOM3TBDLSZH12CA
Regular price
$3.42
Unit price
Shipping calculated at checkout.
Description
Description
LazrSPEED Indoor/Outdoor Low Smoke Zero Halogen Riser Distribution Cable, 12 fiber single-unit
Specifications
Specifications
Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope |
General Specifications
| Cable Type | Distribution |
|---|---|
| Construction Type | Non-armored |
| Fiber Type, quantity | 12 |
| Jacket Color | Black |
| Total Fiber Count | 12 |
Dimensions
| Diameter Over Jacket | 7.2 mm | 0.283 in |
|---|
Mechanical Specifications
| Minimum Bend Radius, loaded | 108 mm | 4.252 in |
|---|---|
| Minimum Bend Radius, unloaded | 72 mm | 2.835 in |
| Tensile Load, long term, maximum | 400 N | 89.924 lbf |
| Tensile Load, short term, maximum | 1335 N | 300.120 lbf |
| Compression | 22 N/mm | 125.623 lb/in |
| Compression Test Method | FOTP-41 | IEC 60794-1 E3 |
| Flex | 100 cycles |
| Flex Test Method | FOTP-104 | IEC 60794-1 E6 |
| Impact | 5.88 N-m | 52.042 in lb |
| Impact Test Method | FOTP-25 | IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 | IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 | IEC 60794-1 E7 |
| Vertical Rise, maximum | 500 m | 1640.42 ft |
Optical Specifications
| Fiber Type | OM3, LazrSPEED 300 | OM3, LazrSPEED 300 |
|---|
Environmental Specifications
| Installation temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
|---|---|
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Cable Qualification Standards | ANSI/ICEA S-104-696 | EN 187105 | Telcordia GR-20 (water penetration) | Telcordia GR-409 |
| EN50575 CPR Cable EuroClass Fire Performance | Dca |
