Brand: CommScope | SKU: CM-00423AVA-6-OD-MT

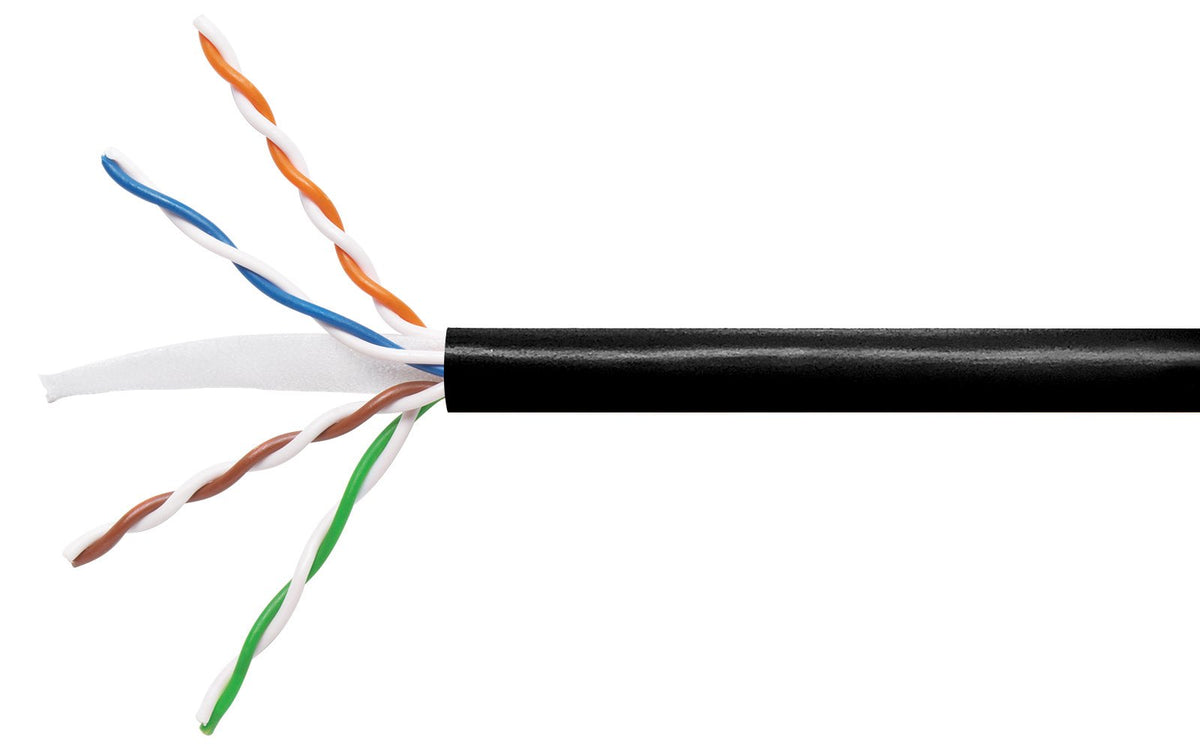

CommScope 760008888 | GigaSPEED XL 1571 Category 6 U/UTP Cable, outdoor, black jacket, 4 pair count, 1000 ft (305 m) length, reel

$3.78

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

CommScope 760008888 | GigaSPEED XL 1571 Category 6 U/UTP Cable, outdoor, black jacket, 4 pair count, 1000 ft (305 m) length, reel

Specifications

CommScope - 760008888 - Product Categories

Cables
Twisted Pair Cables
Category 6 Cables

CommScope - 760008888 - Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Portfolio	SYSTIMAX
Product Type	Twisted pair cable
Product Brand	GigaSPEED XL

CommScope - 760008888 - General Specifications

Brand Name	CommScope
Item Description	GigaSPEED XL 1571 Category 6 U/UTP Cable, outdoor, black jacket, 4 pair count, 1000 ft (305 m) length, reel
Model Number	760008888 \| 1571A BK 4/24 R1000
Product Number	1571A
ANSI/TIA Category	6
Cable Component Type	Horizontal
Cable Type	U/UTP (unshielded)
Conductor Type, singles	Solid
Conductors, quantity	8
Jacket Color	Black
Pairs, quantity	4
Separator Type	Bisector \| Tape separator
Transmission Standards	ANSI/TIA-568.2-D \| CENELEC EN 50288-6-1 \| ISO/IEC 11801 Class E

CommScope - 760008888 - Additional Information

Dimensions	-
Cable Length	304.8 m \| 1000 ft
Diameter Over Jacket, nominal	6.604 mm \| 0.26 in
Jacket Thickness	0.635 mm \| 0.025 in
Conductor Gauge, singles	24 AWG
Electrical Specifications	-
Characteristic Impedance	100 ohm
dc Resistance Unbalance, maximum	0.05
dc Resistance, maximum	9.38 ohms/100 m \| 2.859 ohms/100 ft
Delay Skew, maximum	45 ns
Dielectric Strength, minimum	1500 Vac \| 2500 Vdc
Mutual Capacitance at Frequency	6.0 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)	0.65
Operating Frequency, maximum	250 MHz
Operating Voltage, maximum	80 V
Remote Powering	Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A
Safety Voltage Rating	300 V
Segregation Class	b
Material Specifications	-
Conductor Material	Bare copper
Insulation Material	Polyolefin
Jacket Material	PE
Separator Material	Polyolefin
Mechanical Specifications	-
Pulling Tension, maximum	11.34 kg \| 25 lb
