Brand: CommScope
|
SKU:
373-SMXHYBTBLS-06/06

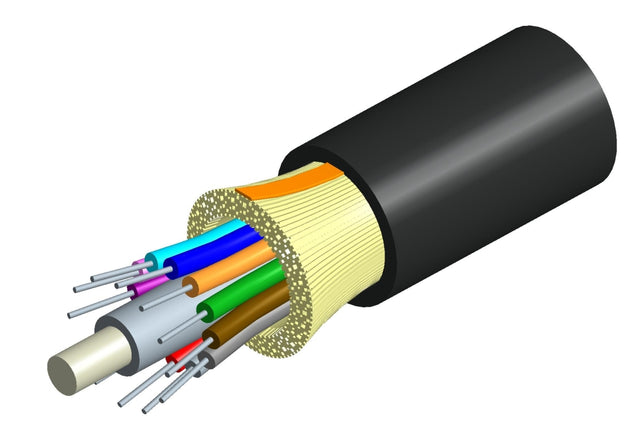

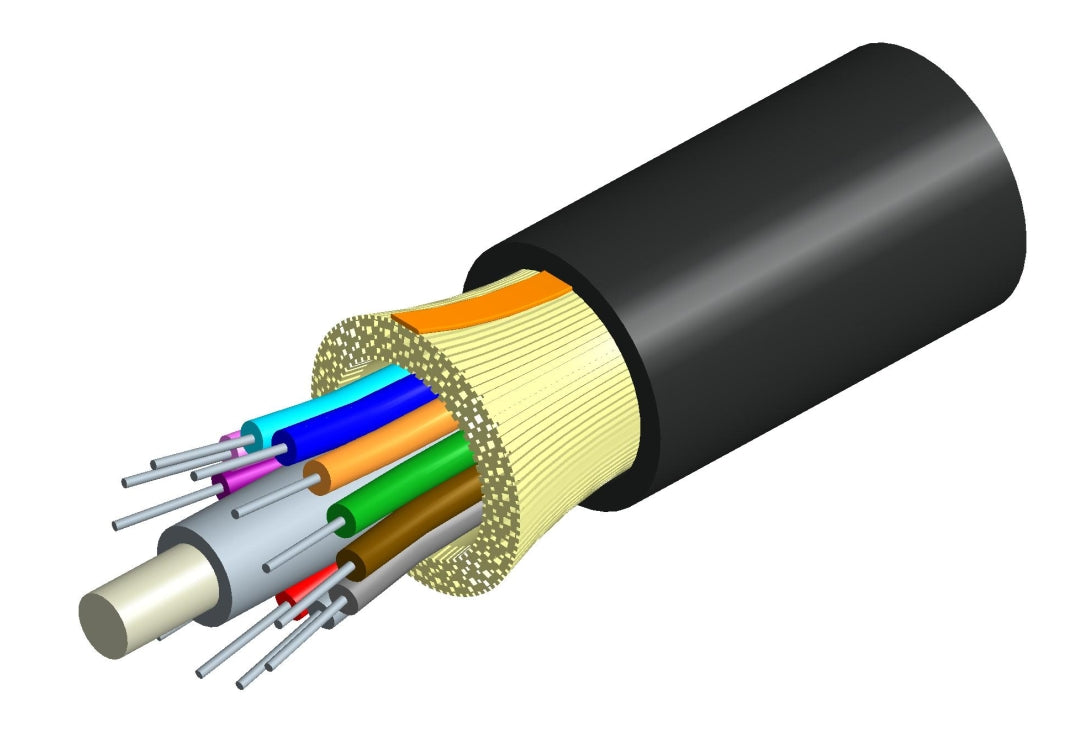

CommScope 760025411 | Fiber Indoor/Outdoor cable, TeraSPEED Low Smoke Zero Halogen Riser Distribution, 12 fiber single-unit, Gel-free
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760025411 | Fiber Indoor/Outdoor cable, TeraSPEED Low Smo...
Regular price
$3.00
Unit price
Brand: CommScope
|
SKU:
373-SMXHYBTBLS-06/06
Regular price
$3.00
Unit price
Shipping calculated at checkout.
Description
Description
CommScope 760025411 | Fiber Indoor/Outdoor cable, TeraSPEED Low Smoke Zero Halogen Riser Distribution, 12 fiber single-unit, Gel-free
Specifications
Specifications
CommScope - 760025411 - Product Categories
- Cables
- Fiber Optic Cables
CommScope - 760025411 - General Specifications
| Brand Name | CommScope |
|---|---|
| Manufacturer Part Number | 760025411 | Z-012-DS-CM-FSUBK/8W006/5L006/D |
| Item Description | Fiber Indoor/Outdoor cable, TeraSPEED Low Smoke Zero Halogen Riser Distribution, 12 fiber single-unit, Gel-free, Singlemode + Multimode OM3, Feet jacket marking, Black jacket color, Dca flame rating |
| Cable Type | Distribution |
| Construction Type | Non-armored |
| Jacket Color | Black |
| Jacket Marking | Feet |
| Composite Fiber Count | 6 + 6 |
| Total Fiber Count | 12 |
CommScope - 760025411 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber indoor/outdoor cable |
| Product Series | Z-DS |
CommScope - 760025411 - Physical Specifications
| Dimensions | - |
|---|---|
| Diameter Over Jacket | 7.2 mm | 0.283 in |
| Mechanical Specifications | - |
| Minimum Bend Radius, loaded | 108 mm | 4.252 in |
| Minimum Bend Radius, unloaded | 72 mm | 2.835 in |
| Tensile Load, long term, maximum | 400 N | 89.924 lbf |
| Tensile Load, short term, maximum | 1335 N | 300.120 lbf |
| Compression | 22 N/mm | 125.623 lb/in |
| Compression Test Method | FOTP-41 | IEC 60794-1 E3 |
| Flex | 100 cycles |
| Flex Test Method | FOTP-104 | IEC 60794-1 E6 |
| Impact | 5.88 N-m | 52.042 in lb |
| Impact Test Method | FOTP-25 | IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 | IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 | IEC 60794-1 E7 |
| Vertical Rise, maximum | 500 m | 1640.42 ft |
| Optical Specifications | - |
| Fiber Type | Composite MM/SM | G.652.D and G.657.A1, TeraSPEED |
| | OM3, LazrSPEED | 300 |
| Environmental Specifications | - |
| Installation temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Cable Qualification Standards | ANSI/ICEA S-104-696 | EN 187105 | Telcordia GR-20 (water penetration) | Telcordia GR-409 |
| EN50575 CPR Cable EuroClass Fire Performance | Dca |
| EN50575 CPR Cable EuroClass Smoke Rating | s1a |
| EN50575 CPR Cable EuroClass Droplets Rating | d1 |
| EN50575 CPR Cable EuroClass Acidity Rating | a2 |
| Environmental Space | Low Smoke Zero Halogen (LSZH) | Riser |
| Flame Test Listing | NEC OFNR-ST1 (ETL) and c(ETL) |
