Brand: CommScope
|
SKU:
374-COMOM4-TBD-48

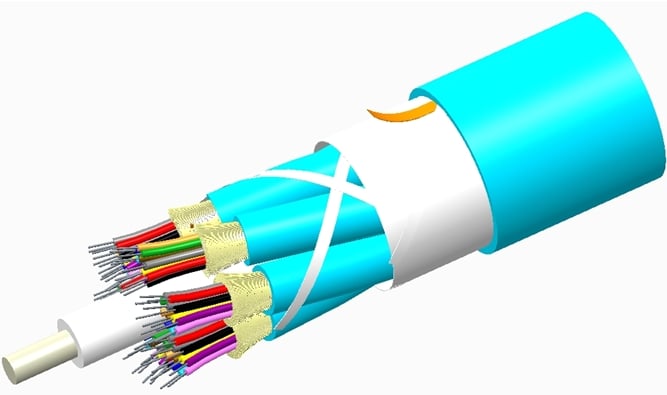

CommScope 760069831 | Fiber indoor cable, LazrSPEED Low Smoke Zero Halogen Riser Distribution, 48 fiber multi-unit with 12 fiber subunits, Gel-free
Regular price
$11.92
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760069831 | Fiber indoor cable, LazrSPEED Low Smoke Zero ...
Regular price
$11.92
Unit price
Brand: CommScope
|
SKU:
374-COMOM4-TBD-48
Regular price
$11.92
Unit price
Shipping calculated at checkout.
Description
Description
CommScope 760069831 | Fiber indoor cable, LazrSPEED Low Smoke Zero Halogen Riser Distribution, 48 fiber multi-unit with 12 fiber subunits, Gel-free
Specifications
Specifications
CommScope - 760069831 - Product Categories
- Cables
- Fiber Optic Cables
CommScope - 760069831 - General Specifications
| Brand Name | CommScope |
|---|---|
| Manufacturer Part Number | 760069831 | N-048-DS-5K-FMUAQ/C |
| Item Description | Fiber indoor cable, LazrSPEED Low Smoke Zero Halogen Riser Distribution, 48 fiber multi-unit with 12 fiber subunits, Gel-free, Multimode OM4, Feet jacket marking, Aqua jacket color, Cca flame rating |
| Cable Type | Distribution |
| Construction Type | Non-armored |
| Subunit Type | Gel-free |
| Jacket Color | Aqua |
| Jacket Marking | Feet |
| Subunit, quantity | 4 |
| Fibers per Subunit, quantity | 12 |
| Total Fiber Count | 48 |
CommScope - 760069831 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber indoor cable |
| Product Series | N-DS |
CommScope - 760069831 - Physical Specifications
| Dimensions | - |
|---|---|
| Buffer Tube/Subunit Diameter | 6.07 mm | 0.239 in |
| Diameter Over Jacket | 16.19 mm | 0.637 in |
| Mechanical Specifications | - |
| Minimum Bend Radius, loaded | 243 mm | 9.567 in |
| Minimum Bend Radius, unloaded | 162 mm | 6.378 in |
| Tensile Load, long term, maximum | 400 N | 89.924 lbf |
| Tensile Load, short term, maximum | 1335 N | 300.12 lbf |
| Compression | 10 N/mm | 57.101 lb/in |
| Compression Test Method | FOTP-41 | IEC 60794-1 E3 |
| Flex | 100 cycles |
| Flex Test Method | FOTP-104 | IEC 60794-1 E6 |
| Impact | 5.88 N-m | 52.042 in lb |
| Impact Test Method | FOTP-25 | IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 | IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 | IEC 60794-1 E7 |
| Vertical Rise, maximum | 183 m | 600.394 ft |
| Optical Specifications | - |
| Fiber Type | OM4, LazrSPEED |
| 550 | OM4, LazrSPEED | Environmental Specifications |
| -10 °C to +60 °C (+14 °F to +140 °F) | Operating Temperature |
| -20 °C to +70 °C (-4 °F to +158 °F) | Storage Temperature |
| -40 °C to +70 °C (-40 °F to +158 °F) | Cable Qualification Standards |
| ANSI/ICEA S-83-596 | Telcordia GR-409 | EN50575 CPR Cable EuroClass Fire Performance |
| Cca | EN50575 CPR Cable EuroClass Smoke Rating |
| s1b | EN50575 CPR Cable EuroClass Droplets Rating |
| d1 | EN50575 CPR Cable EuroClass Acidity Rating |
