Brand: CommScope
|
SKU:
373-COMOS2-LTRD-02LD

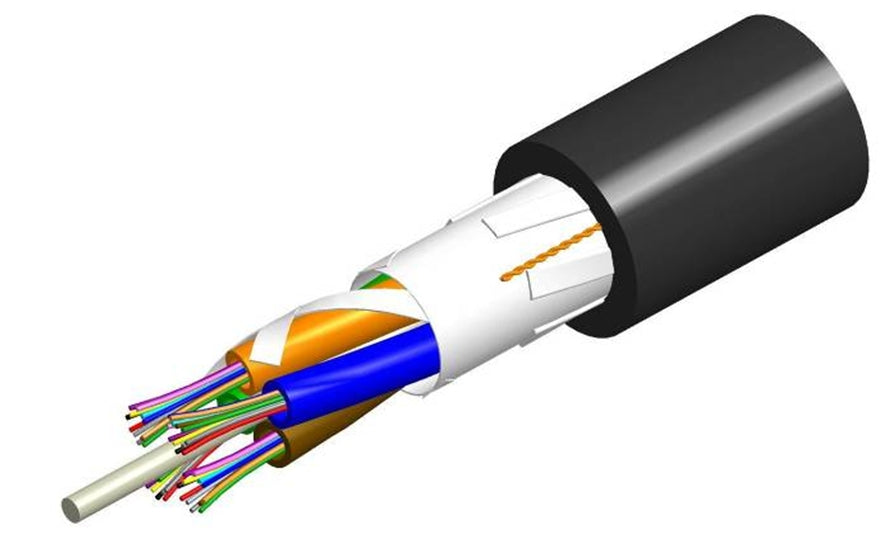

CommScope 760112409 | Fiber indoor/outdoor cable, TeraSPEED Light Duty, Single Jacket, Riser Rated, 2 fiber
Regular price
$1.46
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760112409 | Fiber indoor/outdoor cable, TeraSPEED Light D...
Regular price
$1.46
Unit price
Brand: CommScope
|
SKU:
373-COMOS2-LTRD-02LD
Regular price
$1.46
Unit price
Description
Description
CommScope 760112409 | Fiber indoor/outdoor cable, TeraSPEED Light Duty, Single Jacket, Riser Rated, 2 fiber
Specifications
Specifications
CommScope - 760112409 - Product Categories
- Cables
- Fiber Optic Cables
CommScope - 760112409 - General Specifications
| Brand Name | CommScope |
|---|---|
| Manufacturer Part Number | 760112409 | R-002-LN-8W-F02BK/25D/LTS |
| Item Description | Fiber indoor/outdoor cable, TeraSPEED Light Duty, Single Jacket, Riser Rated, 2 fiber, Singlemode G.652.D and G.657.A1, Gel-Free, All-Dielectric Outdoor Stranded Loose Tube, Black jacket color, Feet cable marking |
| Cable Type | Stranded loose tube |
| Construction Type | Non-armored |
| Subunit Type | Gel-free |
| Filler, quantity | 3 |
| Jacket Color | Black |
| Jacket Marking | Feet |
| Subunit, quantity | 1 |
| Fibers per Subunit, quantity | 2 |
| Total Fiber Count | 2 |
CommScope - 760112409 - Product Classification
| Regional Availability | Asia | Australia/New Zealand | Latin America | Middle East/Africa | North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber indoor/outdoor cable |
| Product Series | R-LN |
CommScope - 760112409 - Physical Specifications
| Dimensions | - |
|---|---|
| Buffer Tube/Subunit Diameter | 2.5 mm | 0.098 in |
| Diameter Over Jacket | 10.4 mm | 0.409 in |
| Mechanical Specifications | - |
| Minimum Bend Radius, loaded | 157 mm | 6.181 in |
| Minimum Bend Radius, unloaded | 104 mm | 4.094 in |
| Tensile Load, long term, maximum | 400 N | 89.924 lbf |
| Tensile Load, short term, maximum | 1335 N | 300.12 lbf |
| Compression | 22 N/mm | 125.623 lb/in |
| Compression Test Method | FOTP-41 | IEC 60794-1 E3 |
| Flex | 25 cycles |
| Flex Test Method | FOTP-104 | IEC 60794-1 E6 |
| Impact | 2.94 N-m | 26.021 in lb |
| Impact Test Method | FOTP-25 | IEC 60794-1 E4 |
| Strain | See long and short term tensile loads |
| Strain Test Method | FOTP-33 | IEC 60794-1 E1 |
| Twist | 10 cycles |
| Twist Test Method | FOTP-85 | IEC 60794-1 E7 |
| Vertical Rise, maximum | 436 m | 1430.446 ft |
| Optical Specifications | - |
| Fiber Type | G.652.D and G.657.A1, TeraSPEED |
| | OS2 | OS2 | Environmental Specifications |
| -10 °C to +60 °C (+14 °F to +140 °F) | Operating Temperature |
| -40 °C to +70 °C (-40 °F to +158 °F) | Storage Temperature |
| -40 °C to +75 °C (-40 °F to +167 °F) | Cable Qualification Standards |
| ANSI/ICEA S-104-696 | EN 187105 | Environmental Space |
| Riser | Flame Test Listing |
| NEC OFNR (ETL) and c(ETL) | Flame Test Method |
