Brand: CommScope
|
SKU:
414581

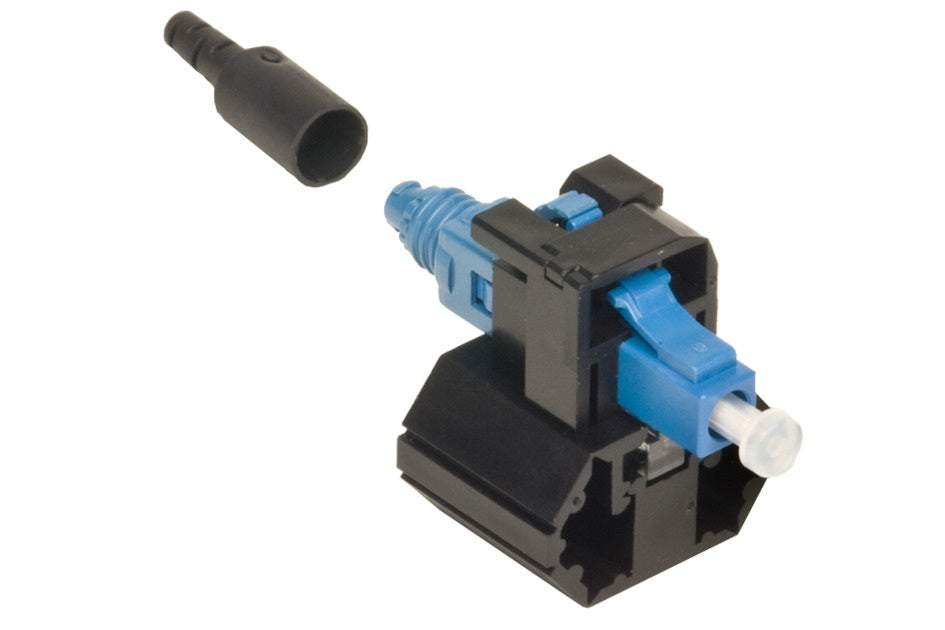

CommScope 760117929 | Qwik II Field Installable LC Connector, Singlemode-UPC, Blue, for 250/900um, 25 Per Pack
Regular price
$631.93
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760117929 | Qwik II Field Installable LC Connector, Singl...
Regular price
$631.93
Unit price
Description
Description
CommScope 760117929 | Qwik II Field Installable LC Connector, Singlemode-UPC, Blue, for 250/900um, 25 Per Pack
Specifications
Specifications
Product Classification
| Regional Availability | Asia / Australia/New Zealand / EMEA / Latin America / North America |
|---|---|
| Portfolio | CommScope |
| Product Type | Fiber connector |
| Product Brand | Qwik II / TeraSPEED |
| Product Series | Qwik II |
General Specifications
| Body Style | BTW |
|---|---|
| Color, boot | Black |
| Color, housing | Blue |
| Ferrule Geometry | Factory polished |
| Interface | LC |
| Interface Feature | Field Installable / Mechanical splice / UPC |
Dimensions
| Length | 42.6 mm / 1.677 in |
|---|---|
| Compatible Cable Diameter | 0.25 mm / 0.010 in / 0.9 mm / 0.035 in |
Material Specifications
| Ferrule Material | Zirconia |
|---|
Mechanical Specifications
| Cable Retention Strength, maximum | 1.00 lb @ 0 ° |
|---|
Optical Specifications
| Fiber Mode | Singlemode |
|---|---|
| Fiber Type | OS2 |
| Insertion Loss Change, mating | 0.2 dB |
| Optical Components Standard | ANSI/TIA-568. 3-D |
| Insertion Loss Change, temperature | 0.3 dB |
| Insertion Loss, maximum | 0.5 dB |
| Insertion Loss, typical | 0.2 dB |
| Return Loss, minimum | 45 dB |
Environmental Specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
|---|
Packaging and Weights
| Packaging quantity | 25 |
|---|
Regulatory Compliance/Certifications
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
|---|---|
| ROHS | Compliant |
| CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
Documents and Downloads
Documents and Downloads
- Revit BIM Models
- 760117929 Drawing - PDF
- 760242377 QWIK II SC/LC/ST CONNECTOR TERMINATION INSTRUCTION - BASIC TOOLKIT
- TECP-96-194 Cleaning Fiber Connectors and Adapters
- Statement of Compliance RoHS/REACH
- 760117929 Product specifications
- Customer and Technical Support, Training, Software/Firmware, Repair Services
- Qwik II Termination with 900um Fiber - 760248225
