Brand: CommScope
|
SKU:
V-10100267

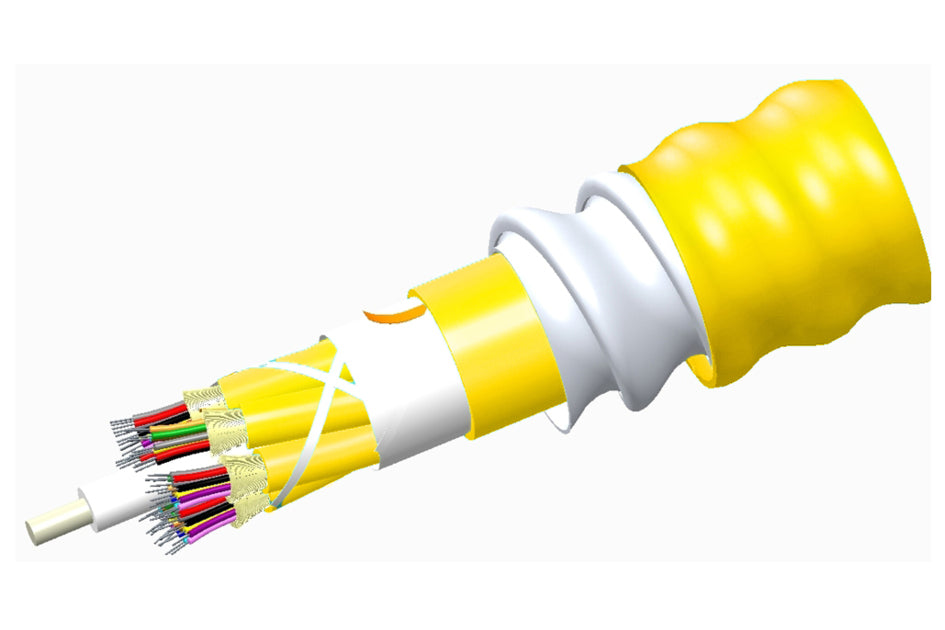

CommScope 760127969 | Fiber Indoor Cable, Teraspeed Plenum Distribution, Interlocking Aluminum Armored With Plenum Jacket
Regular price
$21.45
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
CommScope 760127969 | Fiber Indoor Cable, Teraspeed Plenum Distribu...
Regular price
$21.45
Unit price
Brand: CommScope
|
SKU:
V-10100267
Regular price
$21.45
Unit price
Description
Description
CommScope 760127969 | Fiber Indoor Cable, Teraspeed Plenum Distribution, Interlocking Aluminum Armored With Plenum Jacket
Fiber Indoor Cable, Teraspeed Plenum Distribution, Interlocking Aluminum Armored With Plenum Jacket, Singlemode G.652.D And G.657.A1, 96 Fiber Multi-Unit With 12 Fiber Subunits, Yellow Jacket Color, Feet Cable Marking.
Specifications
- Flame Rating: NEC & CEC compliant for OFCR, OFCP and OFCR-LS (Limited Smoke)
- Outer jacket colored for easy identification
- Printing on outer jacket for ease of identification with sequential length marking in feet or meters
- Indoor cable constructions
Specifications
Specifications
CommScope - 760127969 - Specifications
- Flame Rating: NEC & CEC compliant for OFCR, OFCP and OFCR-LS (Limited Smoke)
- Outer jacket colored for easy identification
- Printing on outer jacket for ease of identification with sequential length marking in feet or meters
- Indoor cable constructions
CommScope - 760127969 - Specifications
| Armored | Yes |
|---|---|
| Cable Type | Tight Buffered |
| Fiber Type | Os2 Single-Mode |
| Fire Rating | Plenum |
| UNSPSC Code | 26121607 |
| Portfolio | CommScope® |
| Product Type | Fiber indoor cable |
| Product Series | P-DZ |
| Armor Type | Interlocking aluminum |
| Cable Type | Distribution |
| Construction Type | Armored |
| Subunit Type | Gel-free |
| Jacket Color | Yellow |
| Jacket Marking | Feet |
| Subunit, quantity | 8 |
| Fibers per Subunit, quantity | 12 |
| Total Fiber Count | 96 |
| Buffer Tube/Subunit Diameter | 5.77 mm | 0.227 in |
| Diameter Over Armor | 29.85 mm | 1.175 in |
| Diameter Over Jacket | 31.9 mm | 1.256 in |
| Minimum Bend Radius, loaded | 478 mm | 18.819 in |
| Minimum Bend Radius, unloaded | 319 mm | 12.559 in |
| Fiber Type | G.652.D and G.657.A1, TeraSPEED® |
